POWER UNIT AND TANK

Find Your Part

Maserati GranSport Spyder (2005-2007) - POWER UNIT AND TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
179140 POWER UNIT $3,366.55 To Order
Photo Part No Description Price (each) Stock
980001155 PPV VALVE KIT $944.72 To Order
Photo Part No Description Price (each) Stock
980001154 QPV VALVE KIT $944.72 To Order
Photo Part No Description Price (each) Stock
980001156 PRESSURE SENSOR $347.67 To Order
Photo Part No Description Price (each) Stock
185891 POWER UNIT SUPPORT BRACKET $1,355.73 To Order
Photo Part No Description Price (each) Stock
179143 ACCUMULATOR $1,378.31 To Order
Photo Part No Description Price (each) Stock
179211 ACCUMULATOR DUCT $294.81 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED $2.05 To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
184878 ACCUMULATOR BRACKET $92.12 To Order
Photo Part No Description Price (each) Stock
16297024 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
184269 PIPE FROM ACCUMULATOR TO POWER UNIT $135.18 To Order
Photo Part No Description Price (each) Stock
14301924 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
247223 HYDRAULIC PUMP Enquire To Order
Photo Part No Description Price (each) Stock
185186 PIPE FROM PUMP TO POWER UNIT $151.30 To Order
Photo Part No Description Price (each) Stock
184968 COMPLETE F1 GEARBOX OIL TANK $905.05 To Order
Photo Part No Description Price (each) Stock
980001147 PLUG $12.40 To Order
Photo Part No Description Price (each) Stock
980001148 OIL LEVEL INDICATOR $88.89 To Order
Photo Part No Description Price (each) Stock
185952 OIL TANK BRACKET $285.13 To Order
Photo Part No Description Price (each) Stock
980001157 PUMP FIXING KIT $386.70 To Order
Photo Part No Description Price (each) Stock
186298 OIL TANK COLLAR $99.46 To Order
Photo Part No Description Price (each) Stock
183718 RUBBER GASKET $17.61 To Order
Photo Part No Description Price (each) Stock
16286127 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
185070 COMPLETE PIPE FROM POWER UNIT TO OIL TANK $715.97 To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.53 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $1.27 To Order
Photo Part No Description Price (each) Stock
262109 COLLAR $2.69 To Order
Photo Part No Description Price (each) Stock
179338 TANK FUEL PIPE TO MOTOR $247.30 To Order
Photo Part No Description Price (each) Stock
262109 COLLAR $2.69 To Order
Photo Part No Description Price (each) Stock
980001159 PUMP UNION KIT $304.39 To Order
Photo Part No Description Price (each) Stock
188459 OIL FILTER $9.35 To Order
Photo Part No Description Price (each) Stock
14066017 NUT Enquire To Order
Photo Part No Description Price (each) Stock
585410200 STUD $31.28 To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 $2.92 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $1.97 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $2.83 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
189936 BRACKET FOR CONNECTOR FIXING $57.21 To Order
Photo Part No Description Price (each) Stock
16285924 SCREW $1.97 To Order
Photo Part No Description Price (each) Stock
216848 GEARBOX OIL TANK HEAT SHIELD $97.03 To Order
Photo Part No Description Price (each) Stock
12604178 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14496324 WASHER $2.53 To Order
Photo Part No Description Price (each) Stock
14059114 NUT $2.05 To Order
Photo Part No Description Price (each) Stock
186906 BRACKET $32.96 To Order
View All

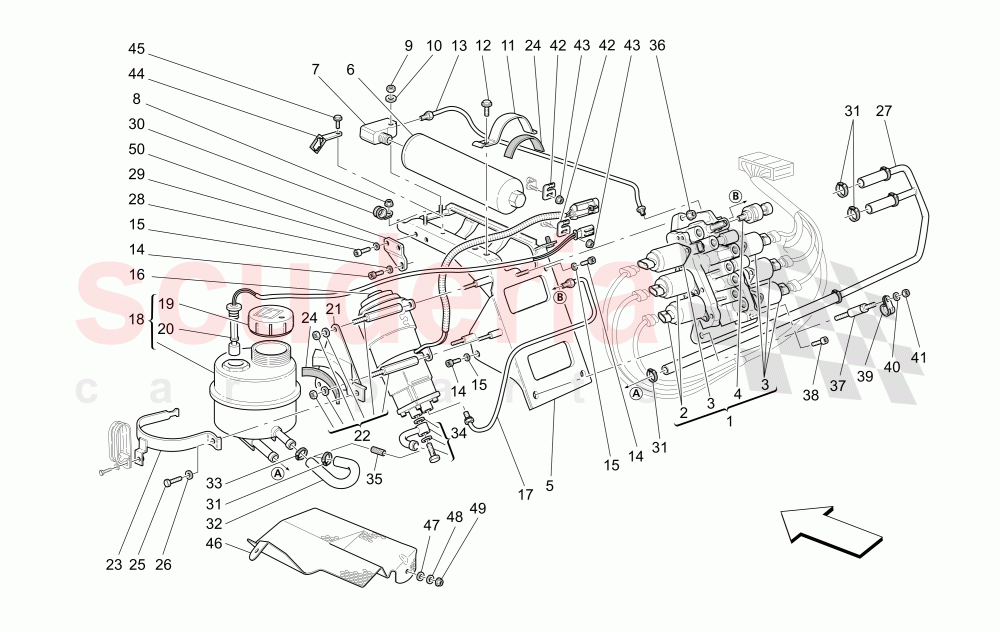

POWER UNIT AND TANK of Maserati Maserati GranSport Spyder (2005-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 179140
POWER UNIT 		$3,366.55 1
2 980001155
PPV VALVE KIT 		$944.72 2
3 980001154
QPV VALVE KIT 		$944.72 (1.5% off) 4
4 980001156
PRESSURE SENSOR 		$347.67 1
5 185891
POWER UNIT SUPPORT BRACKET 		$1,355.73 (2.5% off) 1
6 179143
ACCUMULATOR 		$1,378.31 1
7 179211
ACCUMULATOR DUCT 		$294.81 1
8 14039614
NUT
M6 		$1.54 1
9 14040711
NUT M8 FLANGED 		$2.05 1
10 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8 		$1.62 1
11 184878
ACCUMULATOR BRACKET 		$92.12 1
12 16297024
SCREW 		$2.83 1
13 184269
PIPE FROM ACCUMULATOR TO POWER UNIT 		$135.18 1
14 14301924
SCREW 		$2.83 3
15 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		$2.41 3
16 247223
HYDRAULIC PUMP 		- 1 Enquire
17 185186
PIPE FROM PUMP TO POWER UNIT 		$151.30 1
18 184968
COMPLETE F1 GEARBOX OIL TANK 		$905.05 1
19 980001147
PLUG 		$12.40 1
20 980001148
OIL LEVEL INDICATOR 		$88.89 1
21 185952
OIL TANK BRACKET 		$285.13 1
22 980001157
PUMP FIXING KIT 		$386.70 1
23 186298
OIL TANK COLLAR 		$99.46 1
24 183718
RUBBER GASKET 		$17.61 2
25 16286127
SCREW 		- 1 Enquire
26 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		$2.41 1
27 185070
COMPLETE PIPE FROM POWER UNIT TO OIL TANK 		$715.97 1
28 248334
SCREW M6 X 14MM 		$3.53 2
29 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		$2.41 2
30 10441790
BRACKET WITH SHEATH 		$1.27 1
31 262109
COLLAR 		$2.69 4
32 179338
TANK FUEL PIPE TO MOTOR 		$247.30 1
33 262109
COLLAR 		$2.69 1
34 980001159
PUMP UNION KIT 		$304.39 1
35 188459
OIL FILTER 		$9.35 (3.2% off) 1
36 14066017
NUT 		- 1 Enquire
37 585410200
STUD 		$31.28 1
38 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30
M8X30 		$2.92 1
39 10441390
BRACKET WITH SHEATH 		$1.97 1
40 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		$2.41 1
41 14039614
NUT 		$1.54 1
42 162606
CLIP 		$2.83 2
43 14039614
NUT
M6 		$1.54 2
44 189936
BRACKET FOR CONNECTOR FIXING 		$57.21 (80.4% off) 1
45 16285924
SCREW 		$1.97 1
46 216848
GEARBOX OIL TANK HEAT SHIELD 		$97.03 1
47 12604178
WASHER
D.5.3-11X0.5 		- 2 Enquire
48 14496324
WASHER 		$2.53 (28.1% off) 2
49 14059114
NUT 		$2.05 2
50 186906
BRACKET 		$32.96 1
