Name: AUTOMATIC TRANSMISSION
Rating: 4.5 (1 reviews)

View All

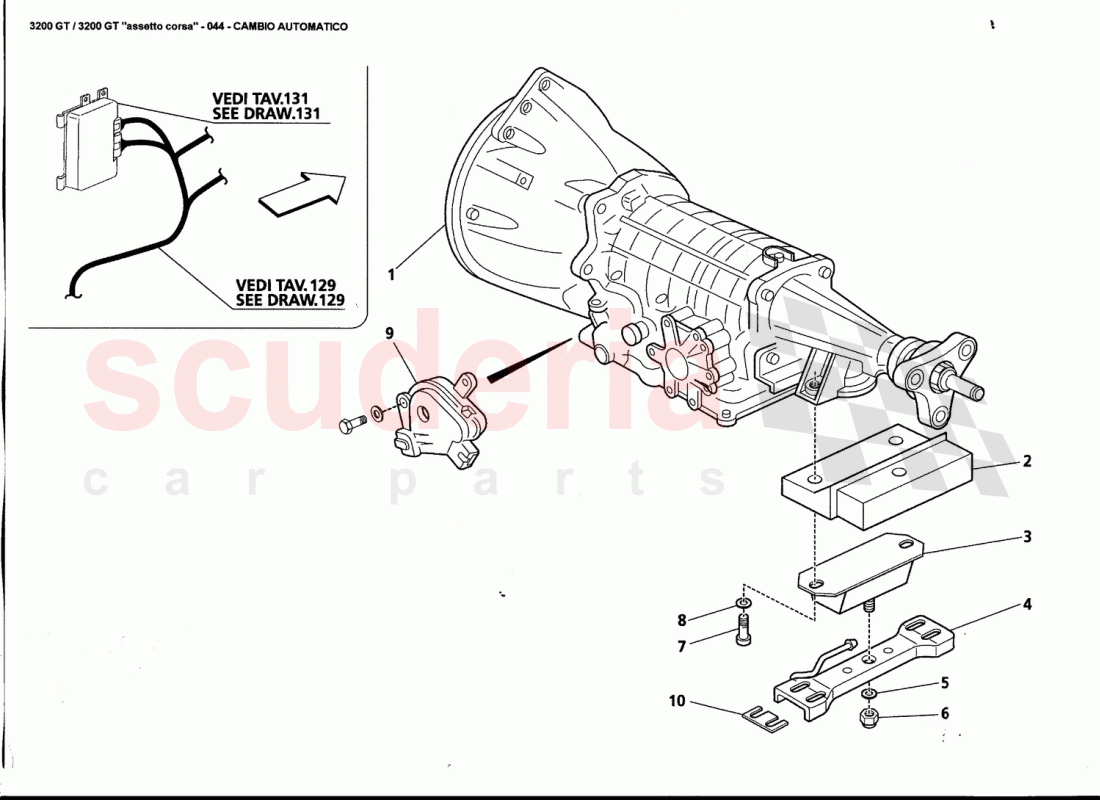

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	384805099	COMPLETE AUTOMATIC TRANSMISSION	$10,751.09	To Order
	384805099	COMPLETE AUTOMATIC TRANSMISSION	$10,751.09	To Order

Photo	Part No	Description	Price (each)	Stock
	384805012	DUMPER ASSY	$210.45	To Order

Photo	Part No	Description	Price (each)	Stock
	374831121	PAD	$140.99	To Order

Photo	Part No	Description	Price (each)	Stock
	384805308	BRACKET	$38.47	To Order

Photo	Part No	Description	Price (each)	Stock
	11190779	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12577511	NUT	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	11190779	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	384805385	WASHER	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	372931200	START ENABLE POTENTIOMENER	$198.14	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	384805099	COMPLETE AUTOMATIC TRANSMISSION	384805099 COMPLETE AUTOMATIC TRANSMISSION Revisioned	$10,751.09	1
1	384805099	COMPLETE AUTOMATIC TRANSMISSION	384805099 COMPLETE AUTOMATIC TRANSMISSION	$10,751.09	1
2	384805012	DUMPER ASSY	384805012 DUMPER ASSY	$210.45	1
3	374831121	PAD	374831121 PAD	$140.99	2
4	384805308	BRACKET	384805308 BRACKET	$38.47	4
5	11190779	WASHER	11190779 WASHER	$1.97	1
6	12577511	NUT	12577511 NUT	$2.39	2
7	11190779	WASHER	11190779 WASHER	$1.97	3
8	384805385	WASHER	384805385 WASHER	$2.83	3
9	372931200	START ENABLE POTENTIOMENER	372931200 START ENABLE POTENTIOMENER	$198.14	1
10	384805313	SHIM PLATE Th.5	384805313 SHIM PLATE Th.5	$18.20	2
10	384805312	SHIM PLATE Th.2	384805312 SHIM PLATE Th.2	$4.22	2
10	384805311	SHIM PLATE Th.3	384805311 SHIM PLATE Th.3	$4.22	2
