Find Your Part

Authorised by Maserati SPA

View All

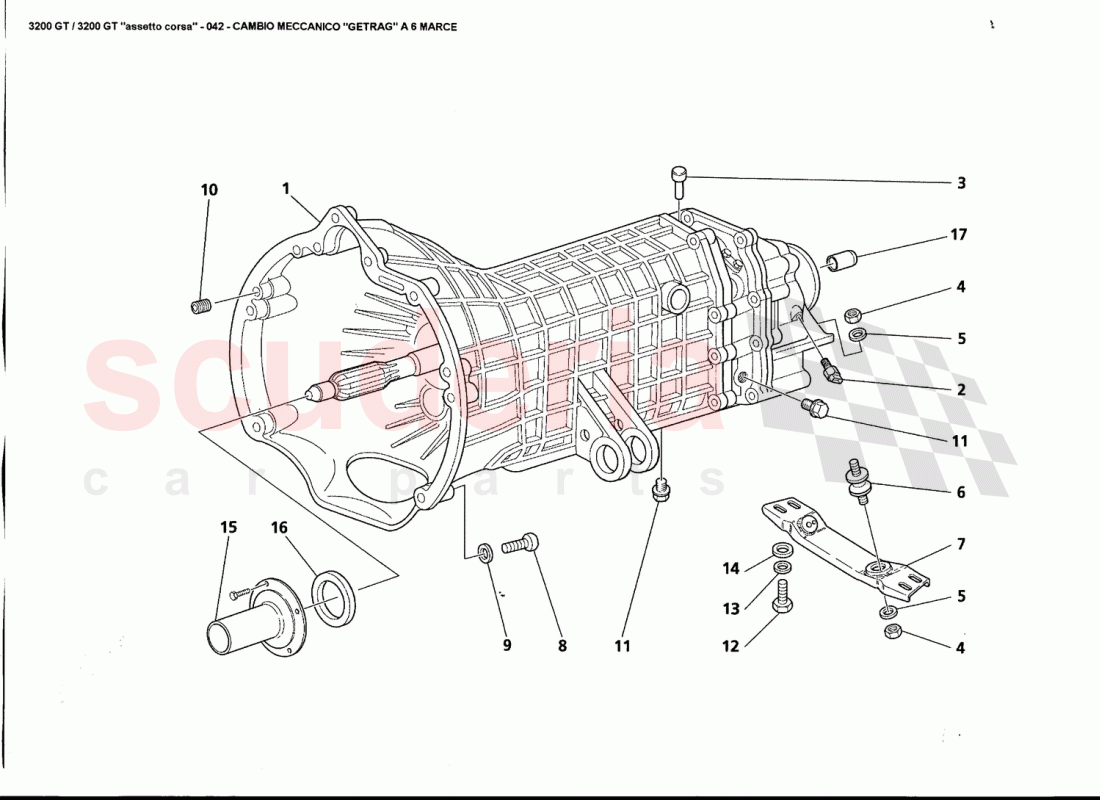

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980000981	REVERSE GEAR SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001007	OIL VENT CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14075811	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314855306	BLANK WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	374830120	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384800308	CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14420421	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604579	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310420311	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000982	OIL TOPPING UP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163020080	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384801411	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001008	FRONT OIL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	385000316	TRANSMISSION SHAFT BUSHING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	384800006	COMPLETE TRANSMISSION	384800006 COMPLETE TRANSMISSION Revisioned	-	1	Enquire
1	384800006	COMPLETE TRANSMISSION	384800006 COMPLETE TRANSMISSION	-	1	Enquire
2	980000981	REVERSE GEAR SWITCH	980000981 REVERSE GEAR SWITCH	-	1	Enquire
3	980001007	OIL VENT CAP	980001007 OIL VENT CAP	-	1	Enquire
4	14075811	NUT	14075811 NUT	-	4	Enquire
5	314855306	BLANK WASHER	314855306 BLANK WASHER	-	4	Enquire
6	374830120	SUPPORT	374830120 SUPPORT	-	2	Enquire
7	384800308	CROSS MEMBER	384800308 CROSS MEMBER	-	1	Enquire
8	14420421	SCREW	14420421 SCREW	-	6	Enquire
9	12604579	WASHER	12604579 WASHER	-	6	Enquire
10	310420311	DOWEL	310420311 DOWEL	-	1	Enquire
11	980000982	OIL TOPPING UP CAP	980000982 OIL TOPPING UP CAP	-	2	Enquire
12	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	4	Enquire
13	12604474	WASHER	12604474 WASHER	-	4	Enquire
14	163020080	WASHER	163020080 WASHER	-	4	Enquire
15	384801411	SLEEVE	384801411 SLEEVE	-	1	Enquire
16	980001008	FRONT OIL RING	980001008 FRONT OIL RING	-	1	Enquire
17	385000316	TRANSMISSION SHAFT BUSHING	385000316 TRANSMISSION SHAFT BUSHING	-	1	Enquire
