CAMSHAFT, VALVES of Lamborghini Lamborghini Urus Performante

View All

Lamborghini Urus Performante - CAMSHAFT, VALVES (109.02.00)

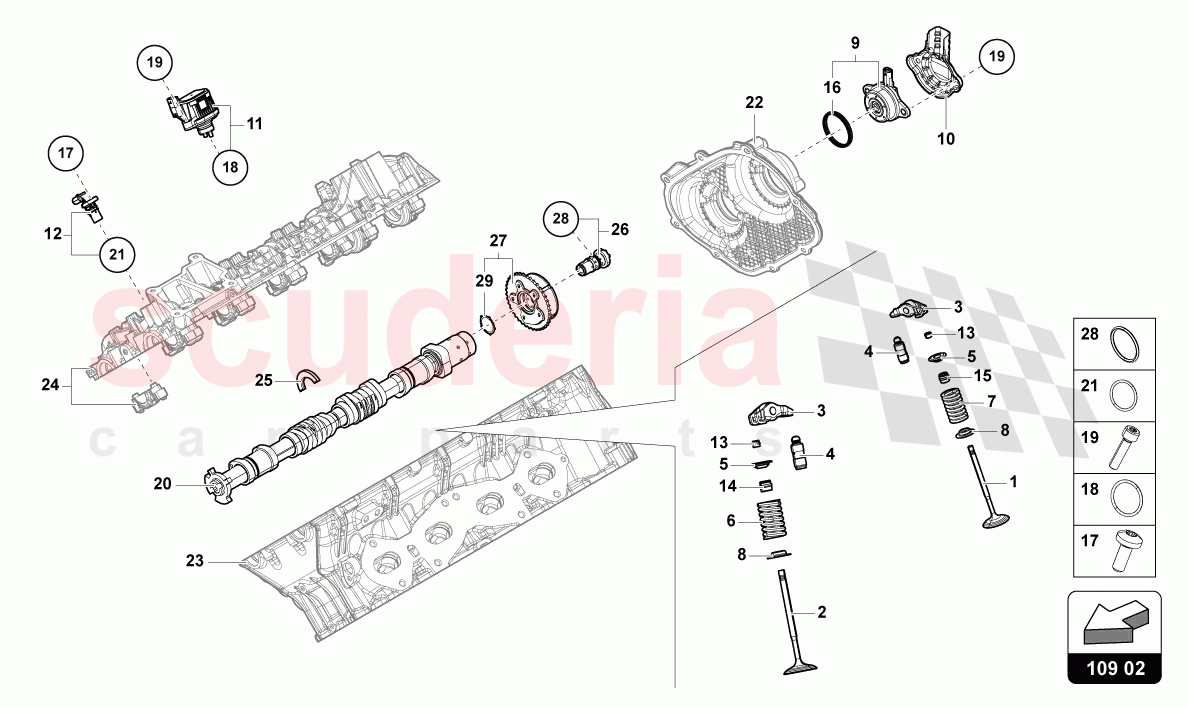

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2109611A	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109601D	INLET VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109417B	ROLLER ROCKER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109423A	EQUALIZING ELEMENT, HYDRAULIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E109641A	SPRING DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E109623AB	VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109623A	VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109629	SPRING SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109259R	MAGNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M103555C	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M906048F	SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M907601G	IMPULSE SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	36109651A	COTTER, SPLIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	36109675A	VALVE STEM SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6L109675C	VALVE STEM SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E906145	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008638	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10599501	ROUND HD. SCREW	Enquire	To Order
	N10599502	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109003N	CAMSHAFT	Enquire	To Order
	P2109003P	CAMSHAFT	Enquire	To Order
	P2109003Q	CAMSHAFT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6M109307F	AXIAL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109257AF	CONTROL VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109087K	CAMSHAFT ADJUSTER UNIT	Enquire	To Order
	6M109088K	CAMSHAFT ADJUSTER UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109235	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109493D	PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	P2109611A	EXHAUST VALVE	P2109611A EXHAUST VALVE	-	16	Enquire
2	6M109601D	INLET VALVE	6M109601D INLET VALVE	-	16	Enquire
3	P2109417B	ROLLER ROCKER ARM	P2109417B ROLLER ROCKER ARM	-	32	Enquire
4	6M109423A	EQUALIZING ELEMENT, HYDRAULIC	6M109423A EQUALIZING ELEMENT, HYDRAULIC	-	32	Enquire
5	6E109641A	SPRING DISC	6E109641A SPRING DISC	-	32	Enquire
6	6E109623AB	VALVE SPRING	6E109623AB VALVE SPRING INLET	-	16	Enquire
7	P2109623A	VALVE SPRING	P2109623A VALVE SPRING OUTLET	-	16	Enquire
8	P2109629	SPRING SUPPORT	P2109629 SPRING SUPPORT LOWER	-	32	Enquire
9	6M109259R	MAGNET	6M109259R MAGNET	-	4	Enquire
10	6M103555C	HEAT SHIELD	6M103555C HEAT SHIELD	-	2	Enquire
11	6M906048F	SOLENOID VALVE	6M906048F SOLENOID VALVE	-	8	Enquire
12	6M907601G	IMPULSE SENDER	6M907601G IMPULSE SENDER	-	4	Enquire
13	36109651A	COTTER, SPLIT	36109651A COTTER, SPLIT	-	64	Enquire
14	36109675A	VALVE STEM SEAL	36109675A VALVE STEM SEAL INLET	-	16	Enquire
15	6L109675C	VALVE STEM SEAL	6L109675C VALVE STEM SEAL OUTLET	-	16	Enquire
16	4E906145	SEAL RING	4E906145 SEAL RING	-	4	Enquire
17	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	N91126601 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	4	Enquire
18	WHT008638	O-RING	WHT008638 O-RING 17 -5X1,5	-	8	Enquire
19	N10599501	ROUND HD. SCREW	N10599501 ROUND HD. SCREW ONLY UPON REQUEST OF TECHNICAL SUPPORT-M5X20	-	16	Enquire
19	N10599502	ROUND HD. SCREW	N10599502 ROUND HD. SCREW M5X20	-	16	Enquire
20	P2109003N	CAMSHAFT	P2109003N CAMSHAFT CYLINDER 1-4-OUTLET CYLINDERS 1-4	-	1	Enquire
20	P2109003P	CAMSHAFT	P2109003P CAMSHAFT CYLINDER 5-8-OUTLET CYLINDER 5-8	-	1	Enquire
20	P2109003Q	CAMSHAFT	P2109003Q CAMSHAFT CYLINDER 1-4-INLET CYLINDERS 1-4	-	1	Enquire
20	P2109003R	CAMSHAFT	P2109003R CAMSHAFT CYLINDER 5-8-INLET	-	1	Enquire
25	6M109307F	AXIAL BEARING	6M109307F AXIAL BEARING	-	2	Enquire
26	6M109257AF	CONTROL VALVE	6M109257AF CONTROL VALVE	-	4	Enquire
27	6M109087K	CAMSHAFT ADJUSTER UNIT	6M109087K CAMSHAFT ADJUSTER UNIT INLET	-	2	Enquire
27	6M109088K	CAMSHAFT ADJUSTER UNIT	6M109088K CAMSHAFT ADJUSTER UNIT OUTLET	-	2	Enquire
28	6M109235	SEAL	6M109235 SEAL	-	4	Enquire
29	6M109493D	PLATE	6M109493D PLATE	-	4	Enquire
