Name: TIMING CHAIN
Rating: 5.0 (1 reviews)

View All

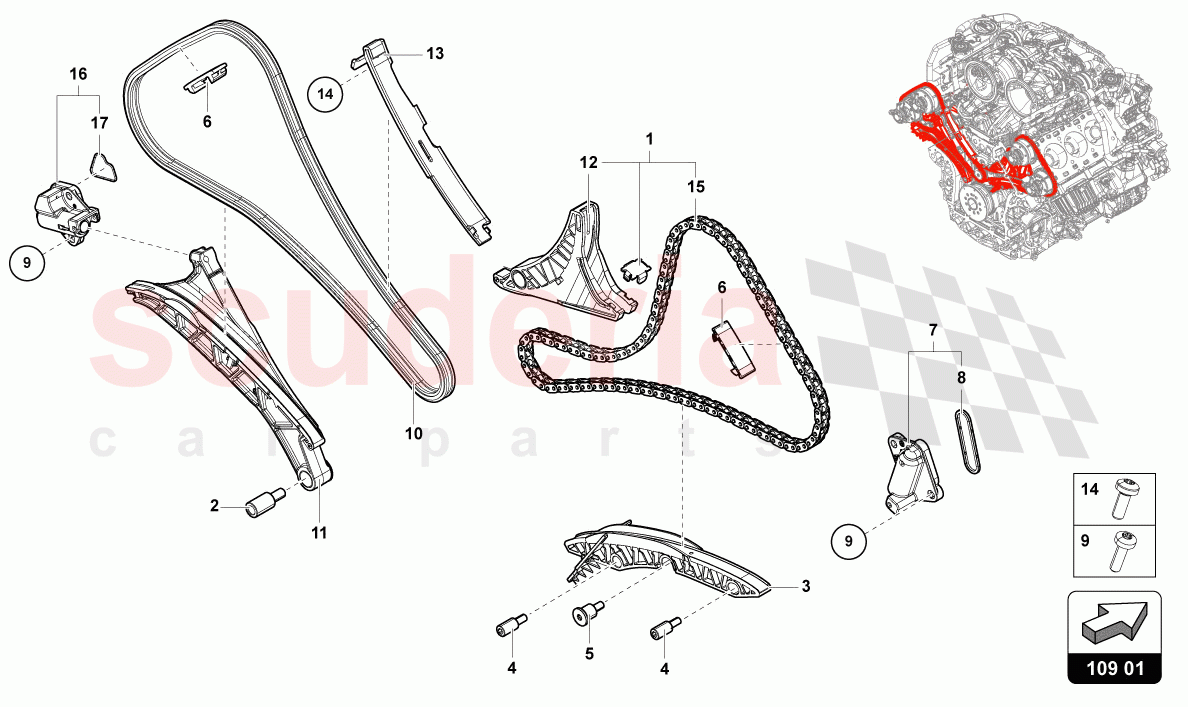

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2109450F	TIMING CHAIN	$124.06	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109426E	AXLE	$5.79	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109514F	SLIDE RAIL	$21.17	To Order

Photo	Part No	Description	Price (each)	Stock
	59109426T	AXLE	$3.11	To Order

Photo	Part No	Description	Price (each)	Stock
	N91238501	HEX SOCKET HEAD LOCATING BOLT	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	79109470	COVERING	$5.79	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109218D	CHAIN TENSIONER	$72.98	To Order

Photo	Part No	Description	Price (each)	Stock
	79109139L	SEAL	$15.84	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109229L	DRIVE CHAIN	$109.14	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109509M	SLIDE RAIL	$53.29	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109513J	SLIDE RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10451405	OVAL HEXAGON SOCKET HEAD BOLT	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109229K	DRIVE CHAIN	$96.80	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109217L	CHAIN TENSIONER	$89.00	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109139C	SEAL	$19.63	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	P2109450F	TIMING CHAIN	P2109450F TIMING CHAIN CYLINDERS 1-4	$124.06	1
2	6M109426E	AXLE	6M109426E AXLE	$5.79	2
3	6M109514F	SLIDE RAIL	6M109514F SLIDE RAIL	$21.17	1
4	59109426T	AXLE	59109426T AXLE	$3.11	2
5	N91238501	HEX SOCKET HEAD LOCATING BOLT	N91238501 HEX SOCKET HEAD LOCATING BOLT	$2.15	1
6	79109470	COVERING	79109470 COVERING	$5.79	2
7	P2109218D	CHAIN TENSIONER	P2109218D CHAIN TENSIONER	$72.98	1
8	79109139L	SEAL	79109139L SEAL	$15.84	1
9	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT M6X20	$1.55	4
10	P2109229L	DRIVE CHAIN	P2109229L DRIVE CHAIN CYLINDER 5-8	$109.14	1
11	6M109509M	SLIDE RAIL	6M109509M SLIDE RAIL LEFT	$53.29	1
13	6M109513J	SLIDE RAIL	6M109513J SLIDE RAIL LEFT	-	1	Enquire
14	N10451405	OVAL HEXAGON SOCKET HEAD BOLT	N10451405 OVAL HEXAGON SOCKET HEAD BOLT M6X16	$1.43 MSRP: ~~7.22~~ (80.2% off)	3
15	P2109229K	DRIVE CHAIN	P2109229K DRIVE CHAIN	$96.80	1
16	6M109217L	CHAIN TENSIONER	6M109217L CHAIN TENSIONER LEFT	$89.00	1
17	6M109139C	SEAL	6M109139C SEAL CYLINDER 5-8	$19.63	1
