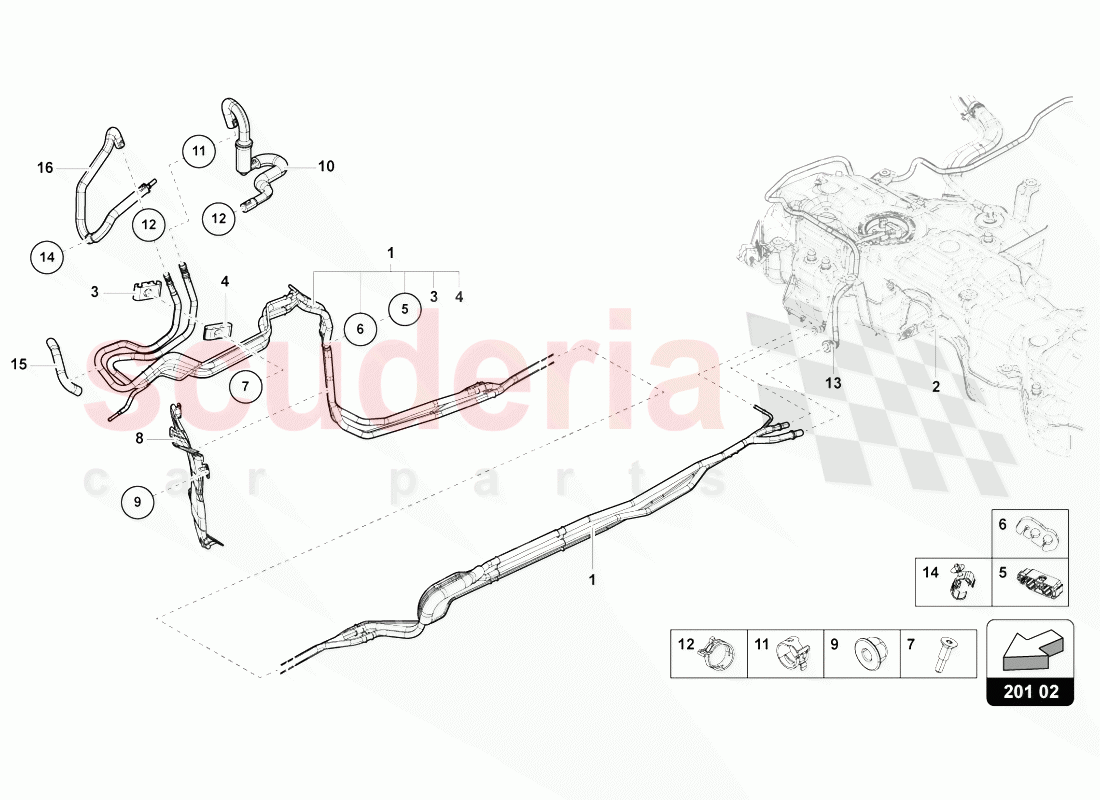

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
		FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0201245G	PROTECTIVE PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201190C	SECURING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201196F	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008695	SHOULDERED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201192K	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10737001	HEXAGON NUT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201994AJ	BREATHER PIPE V8 TFSI MIT FDS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90926401	SPRING BAND CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4B0422379	SPRING BAND CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
		BREATHER LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10843101	SECURING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4F0611853A	SPACER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201215Q	FUEL HOSE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0201544BD	1 SET FUEL PIPES	4M0201544BD 1 SET FUEL PIPES	-	1	Enquire
1	4M0201544BK	1 SET FUEL PIPES	4M0201544BK 1 SET FUEL PIPES	-	1	Enquire
2	-	FUEL TANK	FUEL TANK SEE ILLUSTRATION :- 201-010	-	-	Enquire
3	4D0201449D	SECURING CLIP	4D0201449D SECURING CLIP	-	1	Enquire
3	4M0201449F	SECURING CLIP	4M0201449F SECURING CLIP	-	1	Enquire
4	4D0201245G	PROTECTIVE PROFILE	4D0201245G PROTECTIVE PROFILE 12MM	-	1	Enquire
5	4M0201190C	SECURING CLIP	4M0201190C SECURING CLIP	-	8	Enquire
6	4M0201196F	SEAL	4M0201196F SEAL	-	1	Enquire
7	WHT008695	SHOULDERED BOLT	WHT008695 SHOULDERED BOLT M6X12,5	-	1	Enquire
8	4M0201192K	COVER	4M0201192K COVER	-	1	Enquire
9	N10737001	HEXAGON NUT, SELF-LOCKING	N10737001 HEXAGON NUT, SELF-LOCKING M6	-	4	Enquire
10	4M0201994AJ	BREATHER PIPE V8 TFSI MIT FDS	4M0201994AJ BREATHER PIPE V8 TFSI MIT FDS EU6 PLUS	-	1	Enquire
11	N90926401	SPRING BAND CLAMP IN STOCK	N90926401 SPRING BAND CLAMP 19X12 IN STOCK	-	1	Enquire
12	4B0422379	SPRING BAND CLAMP IN STOCK	4B0422379 SPRING BAND CLAMP 16X12 IN STOCK	-	2	Enquire
13	-	BREATHER LINE	BREATHER LINE SEE ILLUSTRATION : 201.03	-	-	Enquire
14	N10843101	SECURING CLIP	N10843101 SECURING CLIP A14-17XC12-6,5	-	1	Enquire
15	4F0611853A	SPACER RING	4F0611853A SPACER RING 10,5X6X50	-	2	Enquire
16	4M0201215Q	FUEL HOSE	4M0201215Q FUEL HOSE EU6 PLUS-FEED	-	1	Enquire
