FUEL TANK of Lamborghini Lamborghini Urus (2018-2019)

View All

Lamborghini Urus (2018-2019) - FUEL TANK

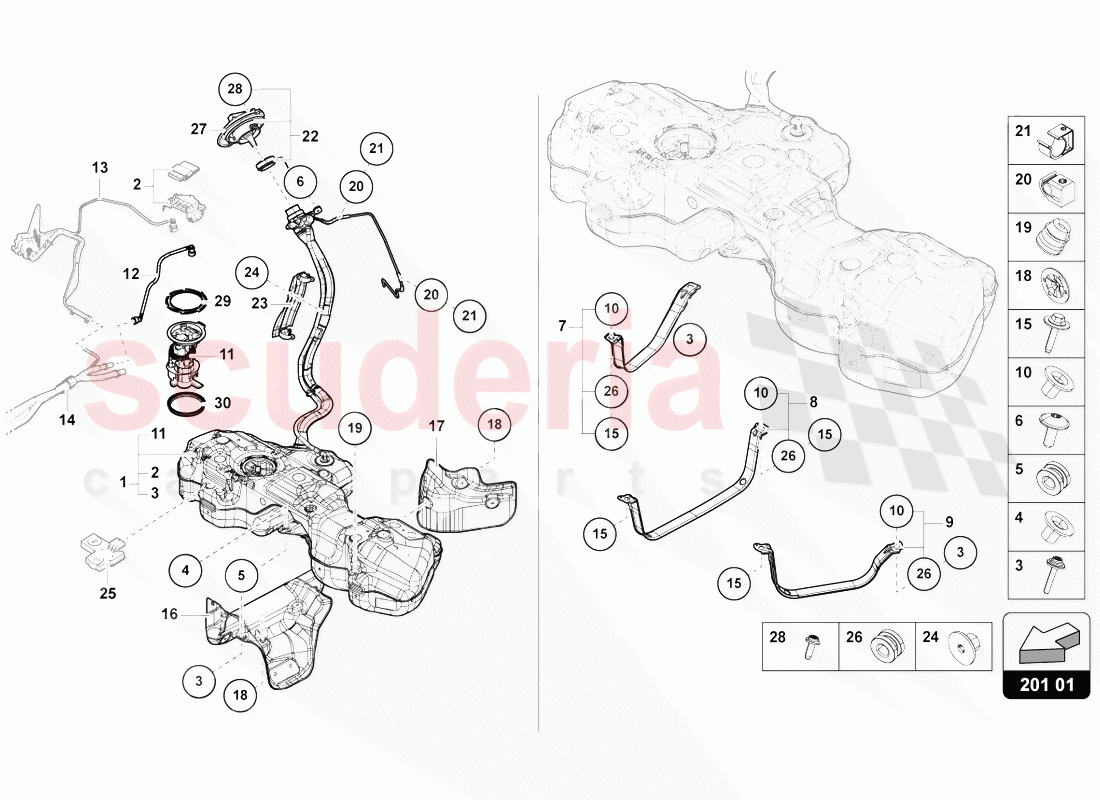

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0201021GK	FUEL TANK	Enquire	To Order
	4M0201021FN	FUEL TANK	Enquire	To Order
	4M0201021FP	FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SENDER FOR FUEL GAUGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91247301	INT. SERRATION FLANGE SCREW (COMBI-INSTRUMENT)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201693D	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201840D	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042301	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201392C	TENSIONING STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201392F	TENSIONING STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201391C	TENSIONING STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201693C	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0919087AR	FUEL DELIVERY MODULE	Enquire	To Order
	4M0919087BL	FUEL DELIVERY MODULE	Enquire	To Order
	4M0919087BM	FUEL DELIVERY MODULE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4M0201220C	FUEL LINE	Enquire	To Order
	4M0201220E	FUEL LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		RESUPPLY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		1 SET FUEL PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91237201	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201308H	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201308G	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90335004	CLAMPING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201274B	DAMPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	443809948	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8J0201449E	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML201550	CAP WITH RETAINING STRAP FOR FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201974A	GUARD PLATE FOR FUEL PIPE	Enquire	To Order
		GUARD PLATE FOR FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90757901	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CONTROL UNIT FOR FUEL TANK LEAK DIAGNOSIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201840C	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		REMOVABLE LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1K0201375	UNION NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1J0919133B	SEAL RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0201021GK	FUEL TANK	4M0201021GK FUEL TANK WITH AUXILIARY HEATER - EURO 6 AJ/K/ L-85 L	-	-	Enquire
1	4M0201021FN	FUEL TANK	4M0201021FN FUEL TANK FOR NAR BRAZIL AND KOREA MARKETS-85 L	-	1	Enquire
1	4M0201021FP	FUEL TANK	4M0201021FP FUEL TANK WITHOUT AUXILIARY HEATER - EURO 6 PLUS-85 L	-	1	Enquire
2	-	SENDER FOR FUEL GAUGE	SENDER FOR FUEL GAUGE SEE ILLUSTRATION : 907.16	-	-	Enquire
3	N91247301	INT. SERRATION FLANGE SCREW (COMBI-INSTRUMENT)	N91247301 INT. SERRATION FLANGE SCREW (COMBI-INSTRUMENT) M8X50	-	1	Enquire
4	8K0201693D	BUSH	8K0201693D BUSH RIGHT	-	1	Enquire
5	8K0201840D	RUBBER BUSH	8K0201840D RUBBER BUSH RIGHT	-	7	Enquire
6	N91042301	OVAL HEXAGON SOCKET HEAD BOLT	N91042301 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	2	Enquire
7	4M0201392C	TENSIONING STRAP	4M0201392C TENSIONING STRAP RIGHT	-	1	Enquire
8	4M0201392F	TENSIONING STRAP	4M0201392F TENSIONING STRAP CENTER	-	1	Enquire
9	4M0201391C	TENSIONING STRAP	4M0201391C TENSIONING STRAP LEFT	-	1	Enquire
10	8K0201693C	BUSH	8K0201693C BUSH FRONT	-	6	Enquire
11	4M0919087AR	FUEL DELIVERY MODULE	4M0919087AR FUEL DELIVERY MODULE UNTIL VIN ZPBEA1ZL8KLA 00391 - W/O AUXILIARY HEATER - ORDER ALSO REF 29 AND 30	-	-	Enquire
11	4M0919087BL	FUEL DELIVERY MODULE	4M0919087BL FUEL DELIVERY MODULE FROM VIN ZPBEA1ZL8KLA 00392 - W/O AUXILIARY HEATER - ORDER ALSO REF 29 AND 30	-	1	Enquire
11	4M0919087BM	FUEL DELIVERY MODULE	4M0919087BM FUEL DELIVERY MODULE FROM VIN ZPBEA1ZLXKLA 00412 - WITH AUXILIARY HEATER - ORDER ALSO REF 29 AND 30	-	1	Enquire
11	4M0919087AS	FUEL DELIVERY MODULE	4M0919087AS FUEL DELIVERY MODULE UNTIL VIN ZPBEA1ZLXKLA 00412 - WITH AUXILIARY HEATER - ORDER ALSO REF 29 AND 30	-	-	Enquire
12	4M0201220C	FUEL LINE	4M0201220C FUEL LINE FEED	-	1	Enquire
12	4M0201220E	FUEL LINE	4M0201220E FUEL LINE FOR USA AND SOUTH COREAN MARKETS-FEED	-	1	Enquire
13	-	RESUPPLY PIPE	RESUPPLY PIPE SEE ILLUSTRATION : 201.02	-	-	Enquire
14	-	1 SET FUEL PIPES	1 SET FUEL PIPES SEE ILLUSTRATION : 201.02	-	-	Enquire
15	N91237201	HEXAGON HEAD BOLT (COMBI)	N91237201 HEXAGON HEAD BOLT (COMBI) M8X40	-	4	Enquire
16	4M0201308H	HEAT SHIELD	4M0201308H HEAT SHIELD CENTER	-	1	Enquire
17	4M0201308G	HEAT SHIELD	4M0201308G HEAT SHIELD LEFT	-	1	Enquire
18	N90335004	CLAMPING WASHER	N90335004 CLAMPING WASHER 5X30	-	4	Enquire
19	8K0201274B	DAMPING	8K0201274B DAMPING	-	7	Enquire
20	443809948	CLIP	443809948 CLIP 1 POINT	-	2	Enquire
21	8J0201449E	BRACKET	8J0201449E BRACKET	-	2	Enquire
22	4ML201550	CAP WITH RETAINING STRAP FOR FUEL TANK	4ML201550 CAP WITH RETAINING STRAP FOR FUEL TANK ROW	-	1	Enquire
23	4M0201974A	GUARD PLATE FOR FUEL PIPE	4M0201974A GUARD PLATE FOR FUEL PIPE ONLY FOR USA AND SOUTH COREAN MARKETS	-	1	Enquire
23	-	GUARD PLATE FOR FUEL PIPE	GUARD PLATE FOR FUEL PIPE NOT FOR THIS MARKET - ONLY FOR SOUTH KOREA AND USA	-	-	Enquire
24	N90757901	HEXAGON COLLAR NUT	N90757901 HEXAGON COLLAR NUT 5	-	1	Enquire
25	-	CONTROL UNIT FOR FUEL TANK LEAK DIAGNOSIS	CONTROL UNIT FOR FUEL TANK LEAK DIAGNOSIS SEE ILLUSTRATION : 907.16	-	-	Enquire
26	8K0201840C	RUBBER BUSH	8K0201840C RUBBER BUSH	-	3	Enquire
27	-	REMOVABLE LID	REMOVABLE LID NOT AVAILABLE - SEE REF 22	-	-	Enquire
28	-	SCREW	SCREW NOT AVAILABLE	-	-	Enquire
29	1K0201375	UNION NUT	1K0201375 UNION NUT	-	1	Enquire
30	1J0919133B	SEAL RING	1J0919133B SEAL RING RED	-	1	Enquire
