Find Your Part

View All

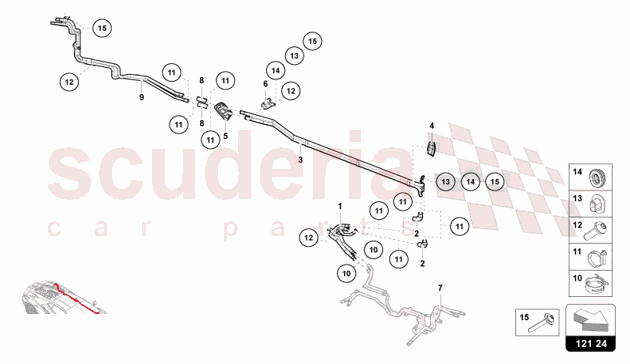

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B121083A	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121101A	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121075A	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121739A	DOUBLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121585A	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121217B	BRACKET ROCKER PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121365B	BEARING SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121399B	OUTLET BRNRD REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91115401	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0129734C	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0129669A	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10442204	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	47B121083A	COOLANT PIPE	47B121083A COOLANT PIPE	-	1	Enquire
2	47B121101A	COOLANT HOSE	47B121101A COOLANT HOSE	-	1	Enquire
3	47B121075A	COOLANT PIPE	47B121075A COOLANT PIPE	-	1	Enquire
4	47B121739A	DOUBLE GROMMET	47B121739A DOUBLE GROMMET	-	1	Enquire
5	47B121585A	Grommet	47B121585A Grommet	-	1	Enquire
6	47B121217B	BRACKET ROCKER PIPES	47B121217B BRACKET ROCKER PIPES	-	1	Enquire
8	47B121365B	BEARING SLEEVE	47B121365B BEARING SLEEVE	-	1	Enquire
9	47B121399B	OUTLET BRNRD REAR	47B121399B OUTLET BRNRD REAR	-	1	Enquire
10	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP 27X12	-	1	Enquire
11	N91115401	SPRING BAND CLAMP	N91115401 SPRING BAND CLAMP A20-32X9	-	1	Enquire
12	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18	-	1	Enquire
13	8K0129734C	BUSH	8K0129734C BUSH	-	1	Enquire
14	4S0129669A	GROMMET	4S0129669A GROMMET	-	1	Enquire
15	N10442204	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10442204 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M6X40	-	1	Enquire
