Find Your Part

View All

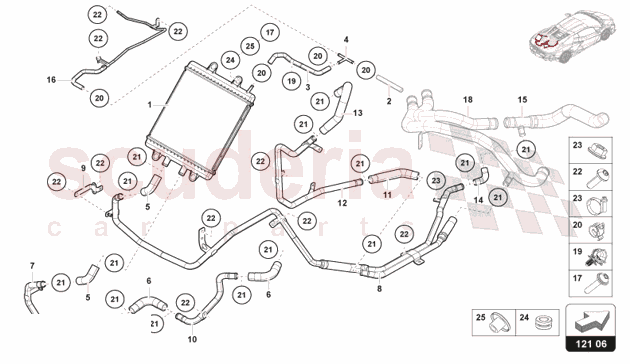

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B121212A	AUXILIARY RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121372A	BREATHER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470133794A	T-PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121036C	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121036B	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121625A	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121512A	COOLANT LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121521A	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121632A	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121447A	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121637A	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121449A	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121057R	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121656A	BREATHER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3B0971848B	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986501	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91115401	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017304	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0317867A	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0903127	MOUNTING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	47B121212A	AUXILIARY RADIATOR	47B121212A AUXILIARY RADIATOR	-	1	Enquire
3	47B121372A	BREATHER HOSE	47B121372A BREATHER HOSE	-	1	Enquire
4	470133794A	T-PIECE	470133794A T-PIECE	-	1	Enquire
5	47B121036C	COOLANT HOSE	47B121036C COOLANT HOSE	-	1	Enquire
6	47B121036B	COOLANT HOSE	47B121036B COOLANT HOSE	-	1	Enquire
7	47B121625A	HOSE	47B121625A HOSE	-	1	Enquire
8	47B121512A	COOLANT LINE	47B121512A COOLANT LINE	-	1	Enquire
9	47B121521A	Bracket	47B121521A Bracket	-	1	Enquire
10	47B121632A	HOSE	47B121632A HOSE	-	1	Enquire
11	47B121447A	COOLANT HOSE	47B121447A COOLANT HOSE	-	1	Enquire
12	47B121637A	HOSE	47B121637A HOSE	-	1	Enquire
13	47B121449A	COOLANT HOSE	47B121449A COOLANT HOSE	-	1	Enquire
14	47B121057R	COOLANT HOSE	47B121057R COOLANT HOSE	-	1	Enquire
16	47B121656A	BREATHER HOSE	47B121656A BREATHER HOSE	-	1	Enquire
17	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M6X28	-	1	Enquire
19	3B0971848B	CLIP	3B0971848B CLIP	-	1	Enquire
20	N90986501	SPRING BAND CLAMP	N90986501 SPRING BAND CLAMP 14,5X12	-	1	Enquire
21	N91115401	SPRING BAND CLAMP	N91115401 SPRING BAND CLAMP A20-32X9	-	1	Enquire
22	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18	-	1	Enquire
23	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT M5	-	1	Enquire
24	4D0317867A	RUBBER BUSH	4D0317867A RUBBER BUSH	-	1	Enquire
25	4E0903127	MOUNTING	4E0903127 MOUNTING	-	1	Enquire
