Air Conditioning System 1

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Air Conditioning System 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

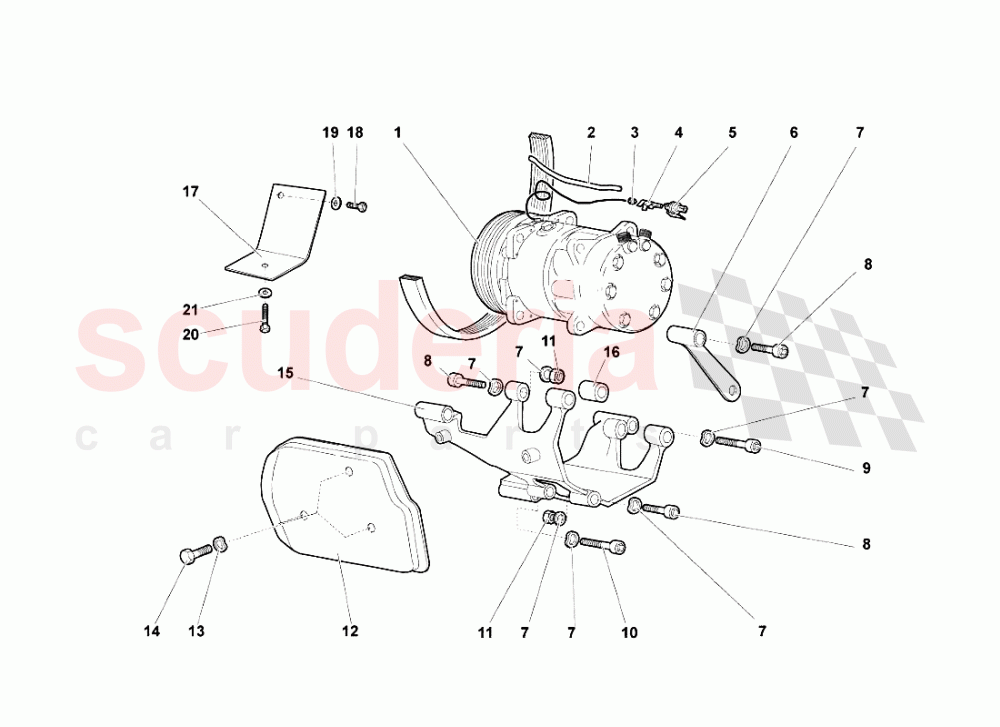

Air Conditioning System 1 of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410260805A
COMPRESSOR 		$3,904.57 1
002 410260193
SHEATH 		$4.16 1
003 410971919
RUBBER 		$0.21 (97.2% off) 1
004 410971996
TAB 		$0.33 (95.5% off) 1
005 410971833
CONNECTION 		$2.78 1
007 WHT000768
WASHER
IN STOCK 		$1.96 (73.1% off) 8
008 8701020
SCREW 		$1.55 (78.3% off) 8
009 8701026
SCREW 		$2.15 (69.4% off) 2
010 8701032
SCREW 		$8.28 1
011 8201008
NUT
IN STOCK 		$0.80 (89% off) 5
015 7M145169A
BRACKET (FROM VIN 5LA01545) 		$1,060.49 1
016 45014832
SPACER (FROM VIN 5LA01545) 		$33.67 1
017 410260963
PANEL (FROM VIN 5LA01545) 		$285.62 1
018 N01029315
SCREW (FROM VIN 5LA01545) 		$1.22 (83.1% off) 1
019 WHT000771
WASHER
IN STOCK 		$1.19 1
020 8100876
SCREW (FROM VIN 5LA01545) 		$0.61 (91.6% off) 1
021 WHT000771
WASHER
IN STOCK 		$1.19 1
