Lamborghini Murcielago Roadster - Radiators And Electric Fans

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

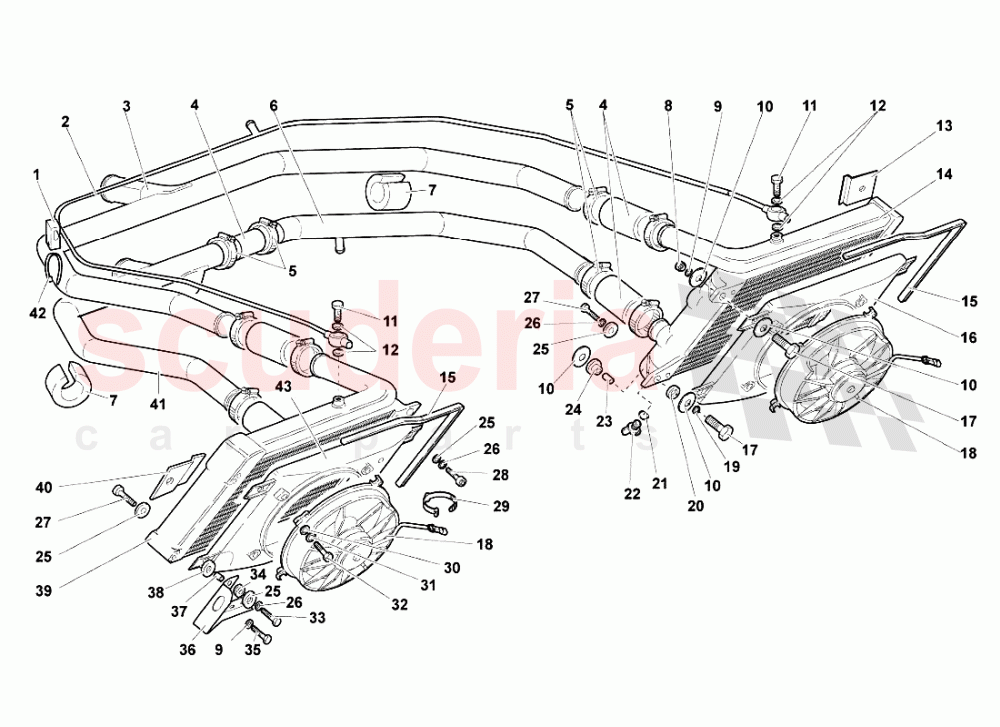

Radiators And Electric Fans of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400611799
BRACKET 0 5 MM 		- 6 Enquire
002 7M121434
PIPE 		- 1 Enquire
003 7M121107
PIPE 		- 1 Enquire
004 7M121074
PIPE 		- 5 Enquire
005 N0245165
CLAMP 		- 8 Enquire
006 7M121102
PIPE 		- 1 Enquire
007 7L121199
PROTECTION 		- 4 Enquire
008 N0111849
NUT 		- 2 Enquire
009 N90179103
WASHER 18X8,4X2,5 		- 2 Enquire
010 WHT001942
WASHER 		- 4 Enquire
011 WHT000524
BANJO BOLT 		- 2 Enquire
012 N0138302
Washer Copper 8 x 1MM 		- 6 Enquire
013 410121235
BRACKET 		- 1 Enquire
014 410121252B
RH Complete Water Radiator 		- 1 Enquire
015 410121539
GASKET 		- 2 Enquire
016 410121334A
RH CONVEYOR 		- 1 Enquire
017 N01034518
SCREW M8X45 		- 4 Enquire
018 7L959465C
ELECTRIC FAN 		- 2 Enquire
019 N0152785
WASHER 		- 4 Enquire
020 WHT001189
PLASTIC WASHER 		- 2 Enquire
021 WHT003058
SEAL RING 		- 1 Enquire
022 410121299
PLUG 		- 2 Enquire
023 400121277
DISTANCE PIECE 		- 2 Enquire
024 400121268
RUBBER BUSH 		- 2 Enquire
025 WHT002961
WASHER 		- 8 Enquire
026 8410611
WASHER 		- 8 Enquire
027 8700614
SCREW 		- 4 Enquire
028 8700644
SCREW 		- 8 Enquire
029 8831515
CLAMP 		- 1 Enquire
030 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		- 4 Enquire
031 WHT000769A
WASHER 		- 4 Enquire
032 N10430103
HEXAGON SOCKET FLAT HEAD BOLT 		- 4 Enquire
033 8100623
SCREW 		- 2 Enquire
034 7L121585
RUBBER BUSHING 		- 2 Enquire
035 8100913
WASHER 		- 2 Enquire
036 410813685
LH BRACKET 		- 1 Enquire
036 410813686
RH BRACKET 		- 1 Enquire
037 8800606
BUSHING 		- 2 Enquire
038 8400635
WASHER 		- 8 Enquire
039 410121253B
LH COMPLETE WATER RADIATOR 		- 1 Enquire
040 410121214
BRACKET 		- 1 Enquire
041 7M121103
PIPE 		- 1 Enquire
042 8830303
CLAMP 		- 3 Enquire
043 410121333A
LH CONVEYOR 		- 1 Enquire
