Lamborghini Murcielago LP670 - Air Conditioning System 2

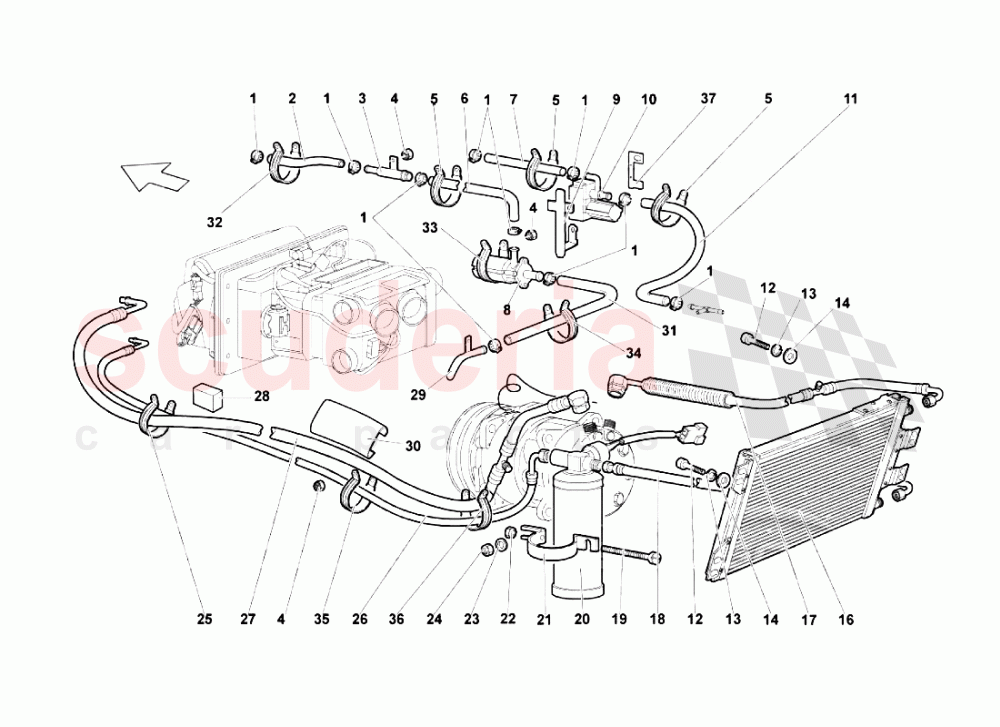

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N90409501	CLAMP IN STOCK	N90409501 CLAMP IN STOCK	$1.11 MSRP: ~~7.22~~ (84.6% off)	10
002	7M121127A	SLEEVE	7M121127A SLEEVE	$94.76	1
003	410819377B	CONNECTOR	410819377B CONNECTOR	$123.54	1
004	N1118312	NUT M6	N1118312 NUT M6	-	11	Enquire
005	N206253	CLAMP	N206253 CLAMP	-	1	Enquire
006	410819370	Sleeve for Auxiliary Water Pump	410819370 Sleeve for Auxiliary Water Pump	$64.90	1
007	414819371	SLEEVE	414819371 SLEEVE	$109.41	1
008	410819025	PUMP	410819025 PUMP	$741.96	1
009	410260761B	SUPPORT	410260761B SUPPORT	$83.34	1
010	410260155	SOLENOID VALVE	410260155 SOLENOID VALVE	$420.70	1
011	410819372	SLEEVE	410819372 SLEEVE	$73.25	1
012	N90612002	SCREW M6X14 IN STOCK	N90612002 SCREW M6X14 IN STOCK	$0.80 MSRP: ~~7.29~~ (89% off)	4
013	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.30	4
014	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	4
016	410260401A	A/C CONDENSER	410260401A A/C CONDENSER	$901.87	1
017	410260701A	PIPE	410260701A PIPE	$478.50	1
018	410260710	PIPE	410260710 PIPE	$206.32	1
020	410820193A	DEHYDRATOR FILTER (FROM VIN 1240)	410820193A DEHYDRATOR FILTER (FROM VIN 1240)	$826.61	1
021	410820140A	CLAMP	410820140A CLAMP	$63.59	1
022	N211963	NUT M5	N211963 NUT M5	-	1	Enquire
023	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.55	2
024	N1118410	NUT M8	N1118410 NUT M8	-	2	Enquire
025	N90942301	CLAMP	N90942301 CLAMP	$10.22	1
026	414260709A	PIPE	414260709A PIPE	$200.26	1
027	414260740A	PIPE	414260740A PIPE	$397.85	1
028	410817432	PROTECTION	410817432 PROTECTION	$1.43 MSRP: ~~7.17~~ (80.1% off)	1
029	410819159C	INTERMEDIATE JOINT	410819159C INTERMEDIATE JOINT	$107.27	1
030	410819818	PROTECTION	410819818 PROTECTION	$36.49	2
031	410819362	SLEEVE	410819362 SLEEVE	$98.40	1
032	N206253	CLAMP	N206253 CLAMP	-	1	Enquire
033	N91123701	CLAMP	N91123701 CLAMP	$4.64	1
034	N10139406	CLAMP	N10139406 CLAMP	$2.90	2
035	N10070503	CLAMP	N10070503 CLAMP	$6.98	3
036	N90942301	CLAMP	N90942301 CLAMP	$10.22	2
037	400326138A	SUPPORT	400326138A SUPPORT	$124.06	1
