Water Cooling System 3 of Lamborghini Lamborghini Murcielago LP670

View All

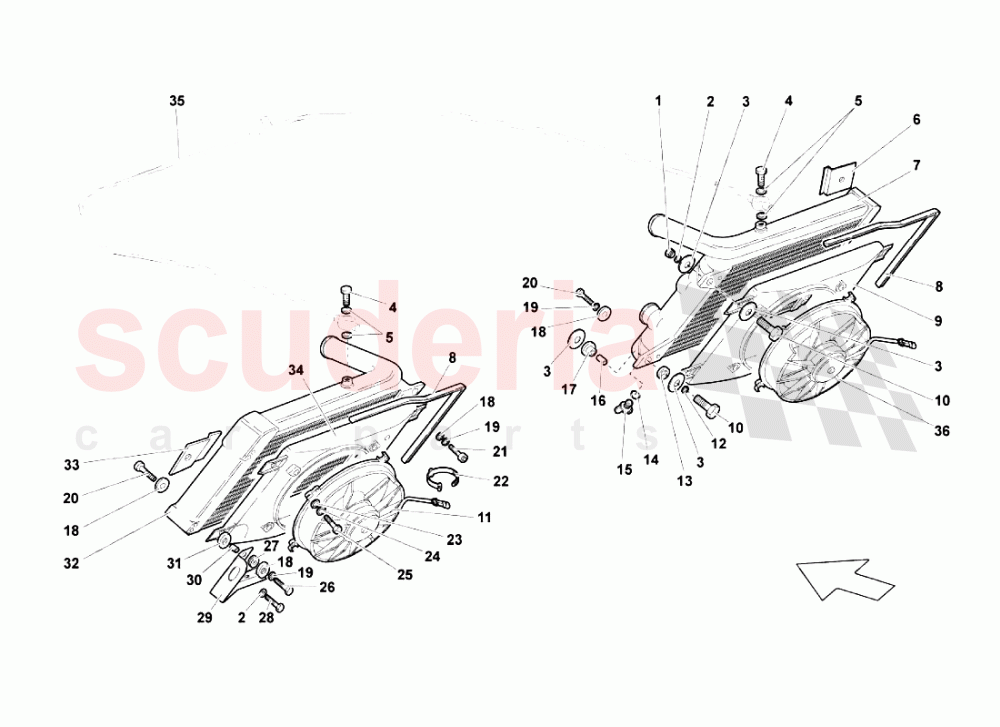

Lamborghini Murcielago LP670 - Water Cooling System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N1118410	NUT M8	N1118410 NUT M8	-	2	Enquire
002	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	$1.55	2
003	WHT001942	WASHER	WHT001942 WASHER	$3.30	4
004	N1034518	SCREW M8X45	N1034518 SCREW M8X45	-	2	Enquire
005	N138302	WASHER	N138302 WASHER	-	6	Enquire
006	410121235	BRACKET	410121235 BRACKET	$6.61	1

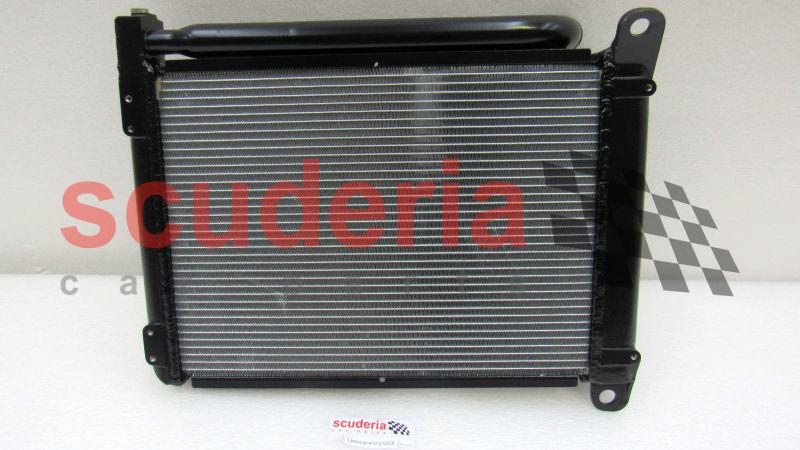

007	410121252B	RH Complete Water Radiator	410121252B RH Complete Water Radiator	$5,672.05	1
008	410121539	GASKET	410121539 GASKET	$57.85	2
009	410121334A	RH CONVEYOR	410121334A RH CONVEYOR	$1,599.47	1
010	N1034518	SCREW M8X45	N1034518 SCREW M8X45	-	4	Enquire
011	7L959465D	ELECTRIC FAN	7L959465D ELECTRIC FAN	$545.62	1
012	N152785	WASHER 8.4	N152785 WASHER 8.4	-	4	Enquire
013	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	$6.27	2
014	WHT003058	SEAL RING	WHT003058 SEAL RING	$1.74 MSRP: ~~7.11~~ (75.5% off)	1
015	410121299	PLUG	410121299 PLUG	$231.85	2
016	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	$10.37	2
017	400121268	RUBBER BUSH	400121268 RUBBER BUSH	$11.56	2
018	WHT002961	WASHER	WHT002961 WASHER	$0.42	8
019	WHT002963	WASHER	WHT002963 WASHER	$0.13 MSRP: ~~7.38~~ (98.2% off)	8
020	N10546402	HEXAGON SOCKET HEAD BOLT	N10546402 HEXAGON SOCKET HEAD BOLT	$0.74 MSRP: ~~7.30~~ (89.9% off)	4
021	N10650701	HEXAGON SOCKET HEAD BOLT	N10650701 HEXAGON SOCKET HEAD BOLT	$0.98 MSRP: ~~7.27~~ (86.5% off)	8
022	N206026	CLAMP	N206026 CLAMP	-	1	Enquire
023	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	$7.53	4
024	WHT000769A	WASHER	WHT000769A WASHER	$0.89 MSRP: ~~7.26~~ (87.7% off)	4
025	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	N10430103 HEXAGON SOCKET FLAT HEAD BOLT	$0.80 MSRP: ~~7.30~~ (89% off)	4
026	N91051101	SCREW M6X30	N91051101 SCREW M6X30	$1.47 MSRP: ~~7.20~~ (79.6% off)	2
027	7L121585	RUBBER BUSHING	7L121585 RUBBER BUSHING	$18.96	2
028	N10536103	SCREW M8X16	N10536103 SCREW M8X16	$0.98 MSRP: ~~7.27~~ (86.5% off)	2
029	410813686	RH BRACKET	410813686 RH BRACKET	$133.08	1
030	400121129A	SPACER HOLDER	400121129A SPACER HOLDER	$15.47	2
031	N154045	WASHER	N154045 WASHER	-	8	Enquire
032	410121253B	LH COMPLETE WATER RADIATOR	410121253B LH COMPLETE WATER RADIATOR	$5,672.05	1
033	410121214	BRACKET	410121214 BRACKET	$12.51	1
034	410121333A	LH CONVEYOR	410121333A LH CONVEYOR	$1,525.54	1
036	7L959465D	ELECTRIC FAN	7L959465D ELECTRIC FAN	$545.62	1
