Lamborghini Murcielago LP640 Roadster - Passenger Compartment Trims 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

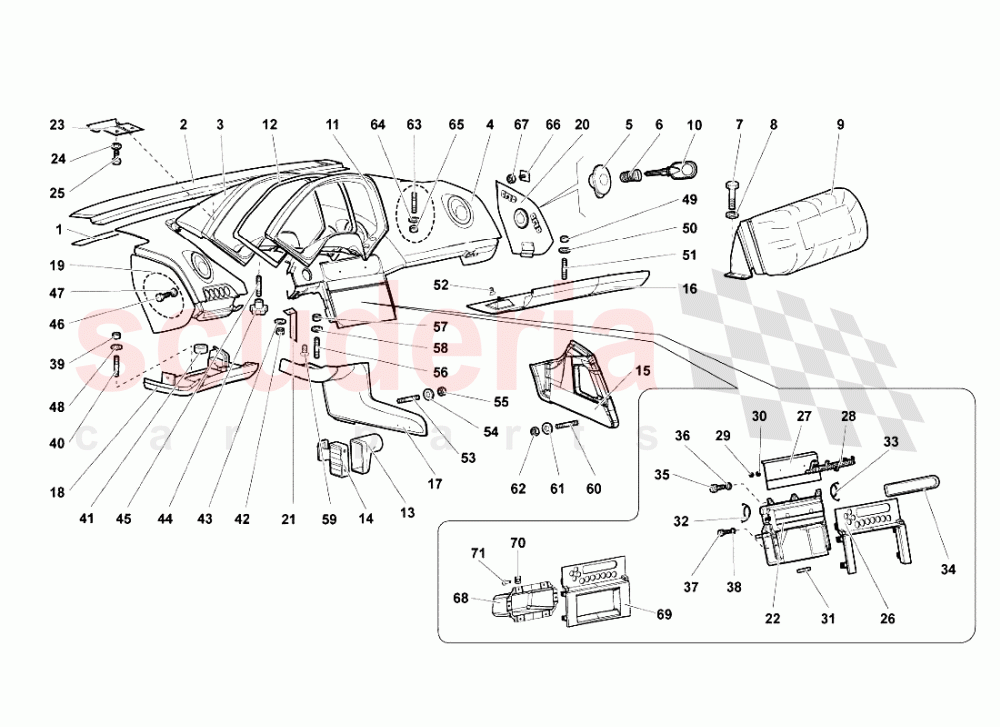

Passenger Compartment Trims 1 of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410819018
SEALING TAPE 		$30.59 3
002 410858349A
UPPER FRONT DASHBOARD ASSEMBLY 		$2,211.05 1
002 410858349
UPPER FRONT DASHBOARD ASSEMBLY 		$4,422.04 1
003 410858278
DASHBOARD COVERING (LEATHER INTERIOR - SUPPLY VIN) 		$2,137.10 1
003 410858278A
DASHBOARD COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		$2,137.10 1
003 410858278B
DASHBOARD COVERING (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
004 413858451A
DASHBOARD UPPER PART ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		$40.00 (98.8% off) 1
004 413858451
DASHBOARD UPPER PART ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$9,045.69 1
005 410919237
AIRBAG SWITCH 		$133.73 1
006 400919228B
AIRBAG BLOCK (INCLUDES 2 AIRBAG KEY) 		$51.70 1
007 N90612002
SCREW M6X14 		$0.80 (89% off) 4
008 WHT002963
WASHER 		$0.13 (98.2% off) 4
009 413880199
AIR BAG MODULE 		$8,436.71 1
011 410858277A
FRAME (CARBON INTERIOR) 		$5,161.26 1
011 410858277
FRAME 		$400.53 1
011 410858277B
FRAME (CARBON INTERIOR LIGHT) 		$5,053.77 1
011 410858277C
FRAME (KLAVIERLACK INTERIOR) 		$5,134.39 1
012 410858177
GASKET 		$5.19 1
013 410864255
OUTLET 		$276.90 1
014 410864877
AIR PIPE UNION GRID, DRIVER@S SIDE 		$126.35 1
015 413857927C
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$848.13 1
015 413857927D
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		$848.13 1
015 413857607A
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (CARBON INTERIOR) 		$3,749.99 1
015 413857927E
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		$751.35 1
015 413857607C
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (KLAVIERLACK INTERIOR) 		$3,749.99 1
016 413857006A
LOWER RIGHT DASHBOARD ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		$186.15 1
016 413857006B
LOWER RIGHT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY -SUPPLY VIN) 		$186.15 1
016 413857006
LOWER RIGHT DASHBOARD ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN) 		$186.15 1
017 413854689B
CAR HI-FI SYSTEM DASHBOARD LEFT SIDE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		$171.37 1
017 413854689
CAR HI-FI SYSTEM DASHBOARD LEFT SIDE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$171.37 1
017 413854689A
CAR HI-FI SYSTEM DASHBOARD LEFT SIDE ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		$171.37 1
018 413857007
LOWER LEFT DASHBOARD ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$170.04 1
018 413857007A
LOWER LEFT DASHBOARD ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		$639.77 1
018 413857007B
LOWER LEFT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY -SUPPLY VIN) 		$170.04 1
019 413857085C
LEFT SIDE COVER ASSEMBLY (CARBON INTERIOR DARK) 		$1,706.97 1
019 413858035A
LEFT SIDE COVER ASSEMBLY (PERFORATED LEATHER INTERIOR -CARBON INTERIOR LIGHT - SUPPLY VIN) 		- 1 Enquire
019 413857085D
LEFT SIDE COVER ASSEMBLY (KLAVIERLACK INTERIOR) 		$1,727.14 1
020 413857086C
RIGHT SIDE COVER ASSEMBLY (KLAVIERLACK INTERIOR) 		$1,606.19 1
020 413858034
RIGHT SIDE COVER ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN -CARBON INTERIOR LIGHT) 		$140.48 1
020 413857086B
RIGHT SIDE COVER ASSEMBLY (CARBON INTERIOR DARK) 		$1,626.36 1
021 410857320A
BRACKET 		$18.33 1
022 410861941D
A/C PANEL ASSEMBLY 		$948.93 1
023 410858573
BRACKET 		$77.88 1
024 N01152221
WASHER 		$0.21 (97.2% off) 1
025 N0102018
SCREW M4X8 		$4.10 (43.1% off) 1
026 410035422Q
FRAME (CARBON INTERIOR LIGHT) 		$3,521.50 1
026 410035422P
FRAME (STANDARD) 		$2,365.59 1
026 410035422R
FRAME (KLAVIERLACK INTERIOR) 		$3,629.02 1
026 410035422N
FRAME (CARBON INTERIOR DARK) 		$3,380.37 1
027 410864123B
LID (CARBON INTERIOR LIGHT) 		$1,329.31 1
027 410864123
LID (LEATHER INTERIOR - SUPPLY VIN) 		$46.98 1
027 410864123C
LID (KLAVIERLACK INTERIOR) 		$1,377.68 1
027 410864123A
LID (CARBON INTERIOR - SUPPLY VIN) 		$1,680.10 1
028 400853682A
LAMBORGHINI ORNAMENT 		$252.03 1
030 4T0853139
CLIP 		$1.43 (80.1% off) 2
031 443803389C
FELT 		$23.01 2
032 410863431
LEFT SPRING 		$74.87 1
033 410863432
RIGHT SPRING 		$74.87 1
034 410861719
FRAME 		$217.75 1
035 N10580702
SCREW 		$5.94 3
036 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.53 3
037 N90455205
SCREW M4X10 		$0.74 (89.8% off) 2
038 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.53 2
039 WHT003112
NUT M5 		$0.70 3
040 WHT003116
STUD BOLT M5X25 		$11.17 1
040 WHT003228
STUD BOLT M5X14 		$12.03 2
041 400804347
SPACER 		$17.68 1
042 N01508213
HEXAGON COLLAR NUT 		$0.21 2
043 WHT002961
WASHER 		$0.42 2
044 410858482
HANDLE 		$10.91 2
045 WHT003228
STUD BOLT M5X14 		$12.03 2
046 WHT003069
SCREW M6X1X20 		$44.78 2
047 WHT002961
WASHER 		$0.42 2
048 N91109202
WASHER 		$0.67 (90.8% off) 3
049 WHT003112
NUT M5 		$0.70 2
050 N91109202
WASHER 		$0.67 (90.8% off) 2
051 WHT003116
STUD BOLT M5X25 		$11.17 2
052 400867299
FASTENER LYS FUSION, YELLOW 		$17.96 2
053 WHT003094
STUD BOLT M4X16 		$13.10 2
054 N91109201
WASHER 		$1.55 (73.5% off) 2
055 WHT002959
CLAMPING NUT 		$0.82 (88.7% off) 2
056 WHT003116
STUD BOLT M5X25 		$11.17 1
057 WHT003112
NUT M5 		$0.70 1
058 WHT002961
WASHER 		$0.42 1
059 410863988
PLUG 		$1.05 (85.5% off) 1
060 WHT003228
STUD BOLT M5X14 		$12.03 2
060 WHT003116
STUD BOLT M5X25 		$11.17 1
061 WHT002961
WASHER 		$0.42 3
062 WHT003112
NUT M5 		$0.70 3
063 WHT003116
STUD BOLT M5X25 		$11.17 2
064 WHT003093
Washer 		$0.48 (93.5% off) 2
065 WHT003112
NUT M5 		$0.70 2
066 410857879
BRACKET 		$19.57 2
067 WHT003112
NUT M5 		$0.70 2
