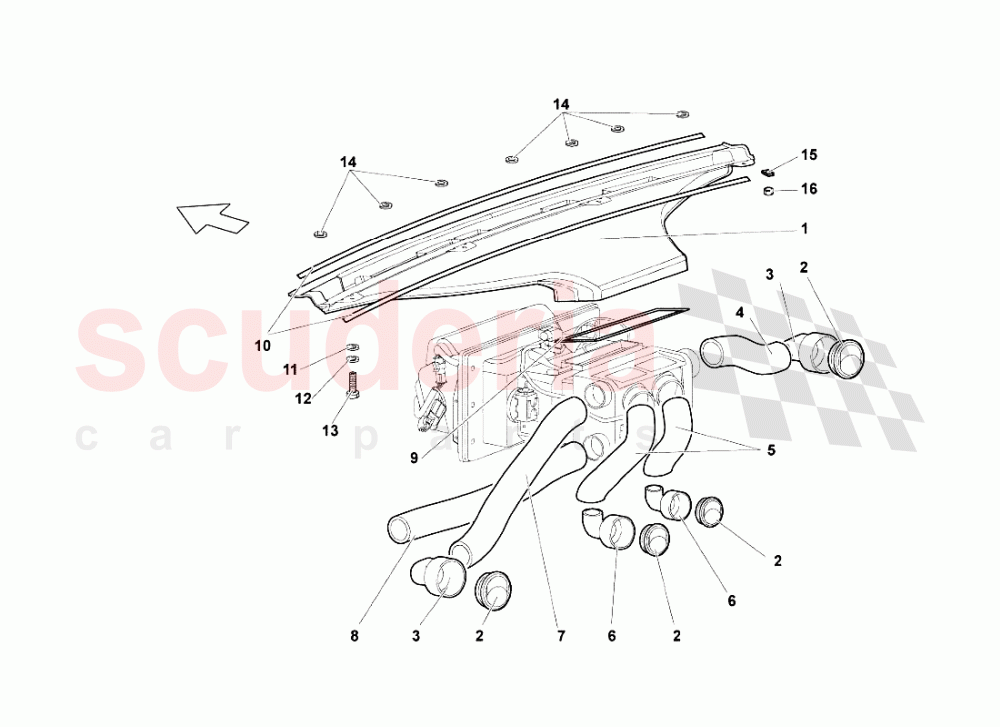

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	413819203	DEFROSTER AIR CONVEYOR ASSEMBLY	413819203 DEFROSTER AIR CONVEYOR ASSEMBLY	$880.39	1
002	400820901B	Air Vent	400820901B Air Vent	$360.96	4
003	410819077	SUPPORT	410819077 SUPPORT	$39.92	2
004	410819320A	PIPE (400 MM)	410819320A PIPE (400 MM)	$47.40	1
005	410819196A	PIPE	410819196A PIPE	$50.01	2
006	410819119	CONNECTOR	410819119 CONNECTOR	$26.55	2
007	410819318A	PIPE (600 MM)	410819318A PIPE (600 MM)	$65.73	1
008	410819324	PIPE	410819324 PIPE	$4.84	1
009	410819226	GASKET	410819226 GASKET	$12.09	1
010	410819018	SEALING TAPE	410819018 SEALING TAPE	$30.59	2
011	N0115484	WASHER	N0115484 WASHER	$4.37	2
012	WHT003093	Washer	WHT003093 Washer	$0.48 MSRP: ~~7.33~~ (93.5% off)	2
013	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	$1.01	2
014	N91109201	WASHER	N91109201 WASHER	$1.55 MSRP: ~~5.85~~ (73.5% off)	7
015	WHT000916A	CLIP	WHT000916A CLIP	$15.41	2
016	WHT000760	NUT M5	WHT000760 NUT M5	$0.13	7
