Find Your Part

View All

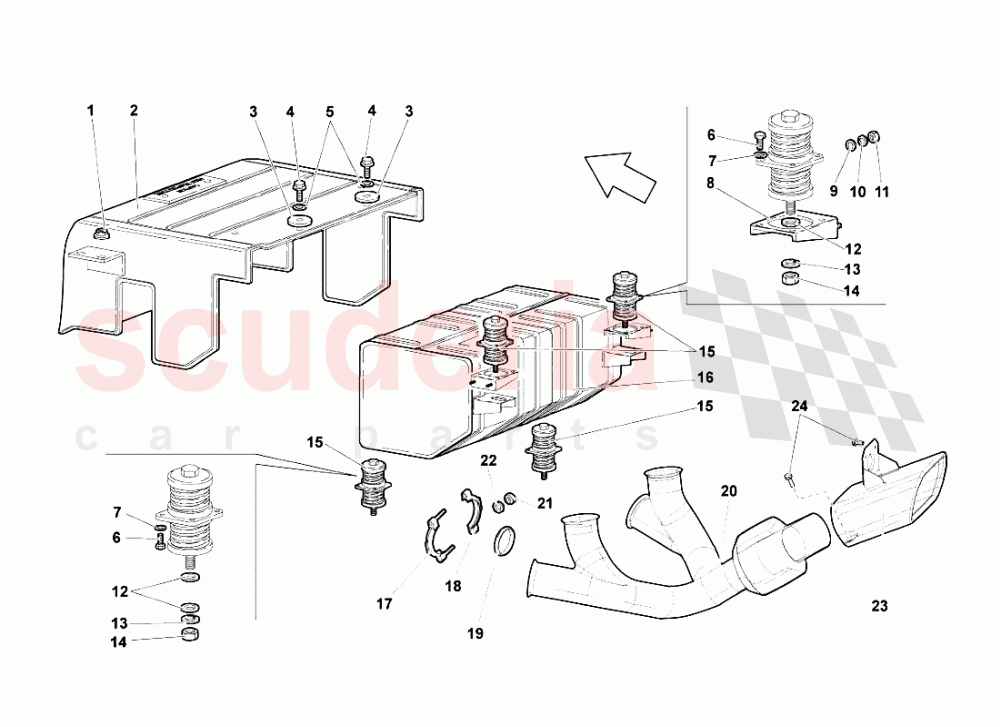

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	4	Enquire
002	7M251384	PANEL	7M251384 PANEL	-	1	Enquire
003	7M251465	WASHER	7M251465 WASHER	-	2	Enquire
004	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	-	2	Enquire
005	N91115501	WASHER	N91115501 WASHER	-	2	Enquire
006	N01020717	SCREW M5X12	N01020717 SCREW M5X12	-	8	Enquire
007	WHT003364	WASHER	WHT003364 WASHER	-	8	Enquire
008	410253379A	SUPPORT	410253379A SUPPORT	-	2	Enquire
009	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	4	Enquire
010	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	4	Enquire
011	WHT000771	WASHER	WHT000771 WASHER	-	4	Enquire
012	N0122115	WASHER	N0122115 WASHER	-	4	Enquire
013	WHT000770A	WASHER	WHT000770A WASHER	-	4	Enquire
014	N10155210	NUT	N10155210 NUT	-	4	Enquire
015	400251393A	SHOCK ABSORBER	400251393A SHOCK ABSORBER	-	4	Enquire
016	7M251051	REAR SILENCER ASSEMBLY	7M251051 REAR SILENCER ASSEMBLY	-	1	Enquire
017	400251143B	CLAMP EXHAUST SYSTEM	400251143B CLAMP EXHAUST SYSTEM	-	4	Enquire
018	400251143	CLAMP	400251143 CLAMP	-	4	Enquire
019	400131797	Seal Exhaust	400131797 Seal Exhaust	-	2	Enquire
020	7M251237C	EXHAUST TERMINALS	7M251237C EXHAUST TERMINALS	-	1	Enquire
021	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING	-	8	Enquire
022	WHT001185	WASHER	WHT001185 WASHER	-	8	Enquire
023	410253697A	EXHAUST TERMINALS COVER	410253697A EXHAUST TERMINALS COVER	-	1	Enquire
024	N10536103	SCREW M8X16	N10536103 SCREW M8X16	-	4	Enquire
