Exhaust System 1

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Exhaust System 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

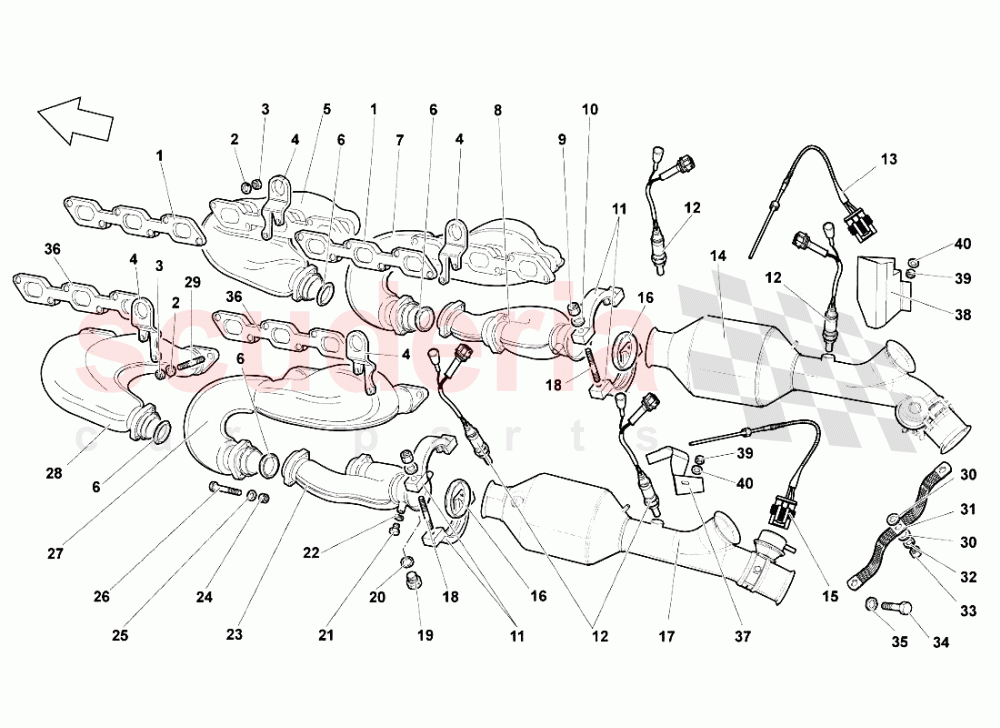

Exhaust System 1 of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 7M253039A
LEFT GASKET 		- 2 Enquire
002 86311519
WASHER 		- 24 Enquire
003 N90522002
NUT 8X1,25 		- 24 Enquire
004 7M199079A
HOOK 		- 4 Enquire
005 7M253172A
FRONT RIGHT EXHAUST MANIFOLD (ONLY CHINA - SOUTH AFRICA) 		- 1 Enquire
006 7M251707
BI-CONE RING 		- 4 Enquire
007 7M253034A
REAR RIGHT EXHAUST MANIFOLD (ONLY CHINA - SOUTH AFRICA) 		- 1 Enquire
008 7M133776
RIGHT THREE-WAY PIPE 		- 1 Enquire
009 N02214621
HEXAGON NUT M8 SELF-LOCKING 		- 4 Enquire
010 WHT001185
WASHER 		- 8 Enquire
011 417251143
CLAMP 		- 2 Enquire
012 6A906262AT
LAMBDA PROBE 		- 2 Enquire
012 36906262J
FRONT OXYGEN SENSOR 		- 2 Enquire
013 410919529
TEMPERATURE SENSOR 		- 1 Enquire
014 7M251718F
FRONT RIGHT CATALYST ASSEMBLY 		- 1 Enquire
015 410919529A
THERMOCOUPLE 		- 1 Enquire
016 400131797
Seal Exhaust 		- 4 Enquire
017 7M251717N
FRONT LEFT CATALYST ASSEMBLY 		- 1 Enquire
018 N0444416
STUD BOLT 		- 8 Enquire
019 N0297042
PLUG M18X1.50 		- 1 Enquire
020 N91122801
WASHER 18,5X24X1,5 		- 1 Enquire
021 410251451
PLUG 		- 2 Enquire
022 WHT003272
WASHER 10.50X15.50X1.5 		- 2 Enquire
023 7M133775
LEFT THREE-WAY PIPE 		- 1 Enquire
024 N02214621
HEXAGON NUT M8 SELF-LOCKING 		- 8 Enquire
025 WHT001185
WASHER 		- 8 Enquire
026 N01035213
SCREW M8X1,25X55 		- 8 Enquire
027 7M253033A
REAR LEFT EXHAUST MANIFOLD (ONLY CHINA - SOUTH AFRICA) 		- 1 Enquire
028 7M253171A
FRONT LEFT EXHAUST MANIFOLD (ONLY CHINA - SOUTH AFRICA) 		- 1 Enquire
029 WHT003028
THREADED PIN 		- 24 Enquire
036 7M253039A
LEFT GASKET 		- 2 Enquire
037 410863553
LH PROTECTION 		- 1 Enquire
038 410863554
RH PROTECTION 		- 1 Enquire
039 WHT002953
NUT M6 		- 2 Enquire
040 N91115501
WASHER 		- 2 Enquire
