Power Steering

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Power Steering

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

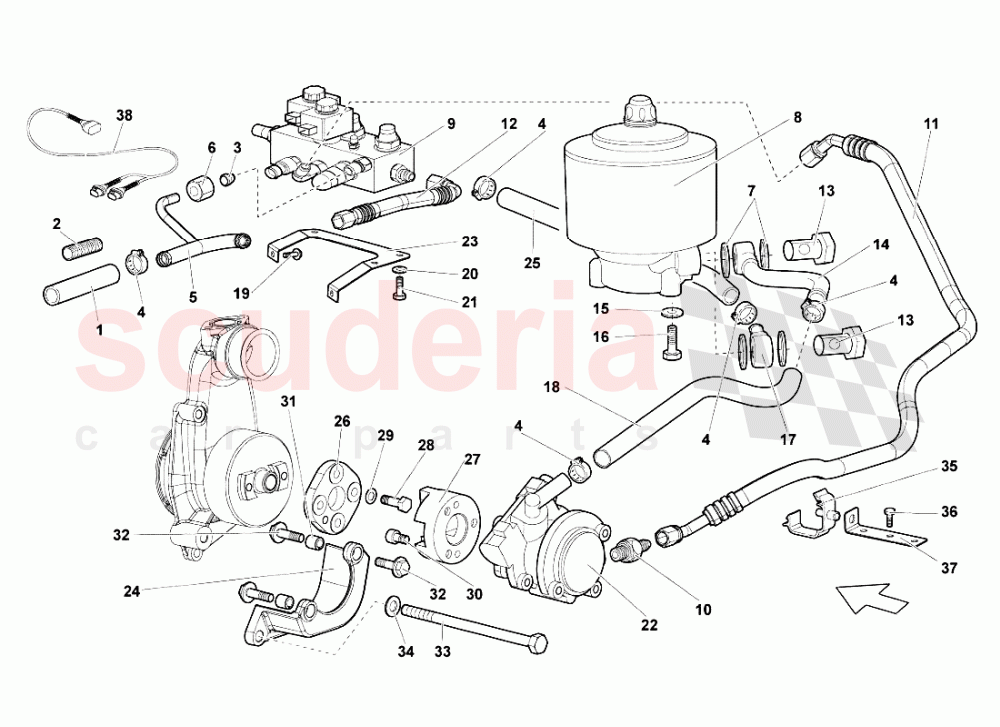

Power Steering of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410422890B
PIPE 		- 1 Enquire
002 410201212
SPRIMG 		- 1 Enquire
003 410616335
BUSH 		- 1 Enquire
004 400251189D
CLAMP 		- 6 Enquire
005 410422237A
PIPE 		- 1 Enquire
006 WHT003120
NUT 		- 1 Enquire
007 400422383A
WASHER 		- 4 Enquire
008 400422373
TANK 		- 1 Enquire

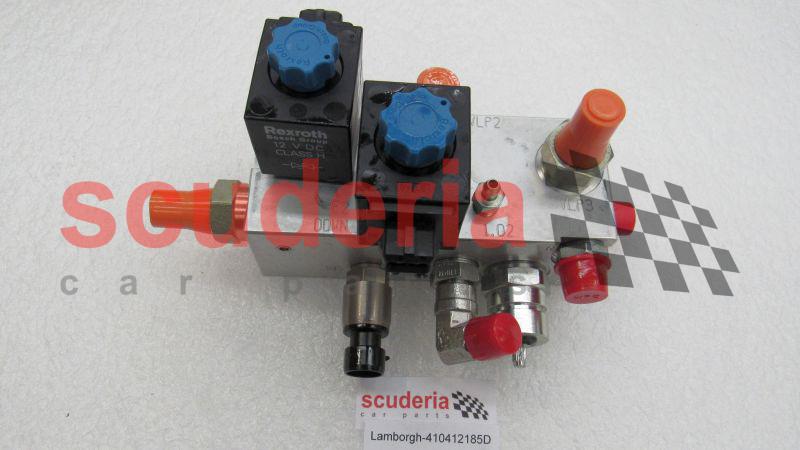

009 410412185D
JACKING SYSTEM CONTROL 		- 1 Enquire
010 410422279
CONNECTOR 		- 1 Enquire
011 410422893B
HOSE 		- 1 Enquire
012 410422471B
HOSE 		- 1 Enquire
013 400422269
SCREW WITH HOLE 		- 2 Enquire
014 410422859B
CONNECTOR 		- 1 Enquire
015 WHT001397
WASHER 		- 3 Enquire
016 N01029315
SCREW (FROM VIN 5LA01545) 		- 3 Enquire
017 400422859A
CONNECTOR 		- 1 Enquire
018 410422891B
PIPE 		- 1 Enquire
019 N90532901
SCREW M6X16 		- 2 Enquire
020 N01152427
WASHER 		- 3 Enquire
021 N01021224
SCREW M6X12 		- 3 Enquire
022 410145156A
OIL PUMP 		- 1 Enquire
023 410616143A
BRACKET 		- 1 Enquire
024 410145879A
BRACKET 		- 1 Enquire
025 410422890A
PIPE 		- 1 Enquire
026 7M145897
SPACER 		- 1 Enquire
027 410145432A
SPACER 		- 1 Enquire
028 N01024232
SCREW M8X25 		- 4 Enquire
029 WHT000771
WASHER 		- 4 Enquire
030 N90903902
SCREW M8X14 		- 3 Enquire
031 410145219A
BUSHING 		- 2 Enquire
032 N90994402
SCREW M8X30 		- 4 Enquire
033 7M145786
SCREW 		- 1 Enquire
034 N0115609
WASHER 		- 1 Enquire
035 400121227
CLAMP 		- 1 Enquire
036 N90319404
SCREW 		- 1 Enquire
037 410971789A
BRACKET 		- 1 Enquire
038 410971059
WIRING HARNESS 		- 1 Enquire
