PASSENGER COMPARTMENT TRIMS of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - PASSENGER COMPARTMENT TRIMS

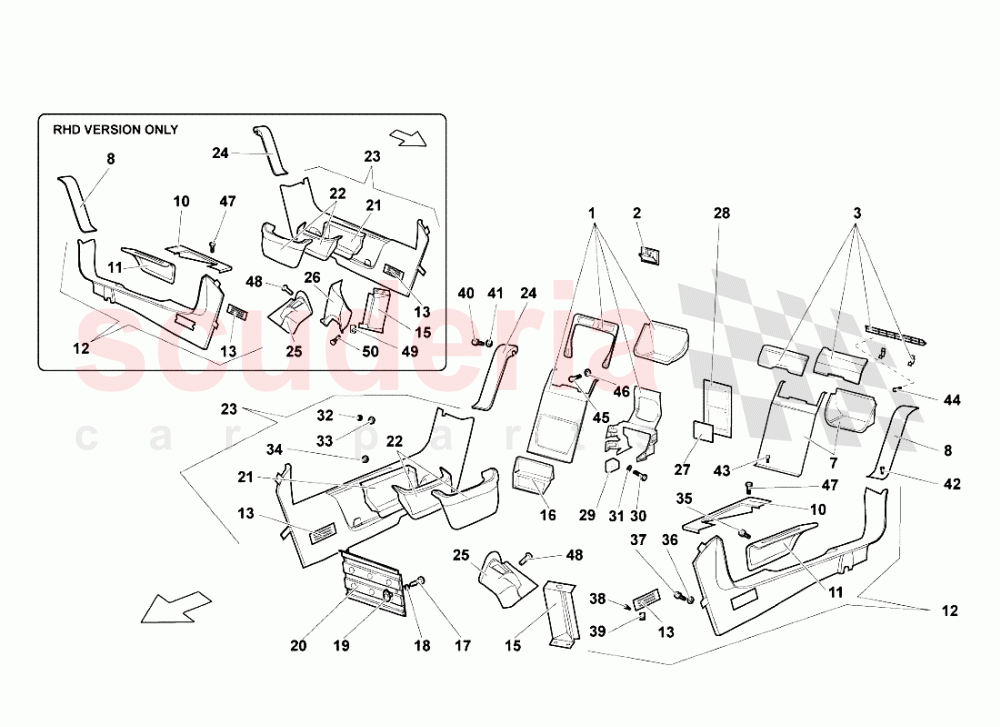

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	78013688	RIGHT SEAT BOX LOWER LID (LEATHER INTERIOR - SUPPLY VIN)	78013688 RIGHT SEAT BOX LOWER LID (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
002	4D0857635E	COAT HOOK	4D0857635E COAT HOOK	-	1	Enquire
003	418868011	GLOVE BOX LID ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	418868011 GLOVE BOX LID ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
007	418861461	LEFT - RIGHT SEAT BOX LOWER LID (LEATHER INTERIOR - SUPPLY VIN)	418861461 LEFT - RIGHT SEAT BOX LOWER LID (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
008	418867477	LEFT LOWER REAR ANGULAR COVERING ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	418867477 LEFT LOWER REAR ANGULAR COVERING ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
010	418711461	COVERING (LEATHER INTERIOR - SUPPLY VIN)	418711461 COVERING (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
012	418854887	LEFT SIDE MEMBER COVER ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN)	418854887 LEFT SIDE MEMBER COVER ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN)	-	1	Enquire
013	400867397	GRID	400867397 GRID	-	2	Enquire
016	410868823A	BECKER ORNAMENT (For Becker Radio System)	410868823A BECKER ORNAMENT (For Becker Radio System)	-	1	Enquire
016	410868823	ORNAMENT	410868823 ORNAMENT	-	1	Enquire
017	400864519A	JOURNAL	400864519A JOURNAL	-	3	Enquire
018	400864179A	RUBBER RING	400864179A RUBBER RING	-	3	Enquire
019	470864994	CLIP	470864994 CLIP	-	3	Enquire
020	413864420	PLATE	413864420 PLATE	-	1	Enquire
021	418863092	GLOVE BOX	418863092 GLOVE BOX	-	1	Enquire
023	418854888	RIGHT SIDE MEMBER COVER ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN)	418854888 RIGHT SIDE MEMBER COVER ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN)	-	1	Enquire
024	418867478	RIGHT LOWER REAR ANGULAR COVERING ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	418867478 RIGHT LOWER REAR ANGULAR COVERING ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
025	413721585	ACCELERATOR COVER BOX	413721585 ACCELERATOR COVER BOX	-	1	Enquire
027	418867096	BULKHEAD	418867096 BULKHEAD	-	4	Enquire
028	418867397	ORNAMENT	418867397 ORNAMENT	-	2	Enquire
029	410868357	SPACER (For Becker Radio System)	410868357 SPACER (For Becker Radio System)	-	2	Enquire
030	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	-	4	Enquire
031	8400401	WASHER	8400401 WASHER	-	4	Enquire
032	WHT003112	NUT M5	WHT003112 NUT M5	-	4	Enquire
034	N91109201	WASHER	N91109201 WASHER	-	2	Enquire
035	N91089801	SCREW	N91089801 SCREW	-	7	Enquire
036	N91109201	WASHER	N91109201 WASHER	-	4	Enquire
037	N10648502	SCREW M5X10	N10648502 SCREW M5X10	-	4	Enquire
038	WHT003102	SCREW 2.9X13	WHT003102 SCREW 2.9X13	-	4	Enquire
039	WHT003424	CLIP	WHT003424 CLIP	-	4	Enquire
040	WHT003111	SCREW M5X16	WHT003111 SCREW M5X16	-	2	Enquire
041	N10612001	WASHER	N10612001 WASHER	-	2	Enquire
042	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16)	-	3	Enquire
043	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16)	-	6	Enquire
044	WHT003102	SCREW 2.9X13	WHT003102 SCREW 2.9X13	-	8	Enquire
046	N90531001	WASHER	N90531001 WASHER	-	6	Enquire
047	N10406504	OVAL HEXAGON SOCKET HEAD BOLT	N10406504 OVAL HEXAGON SOCKET HEAD BOLT	-	3	Enquire
048	N91153701	POP RIVET	N91153701 POP RIVET	-	5	Enquire
