Passenger Compartment Trims

Lamborghini Murcielago

Find Your Part

Lamborghini Murcielago - PASSENGER COMPARTMENT TRIMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

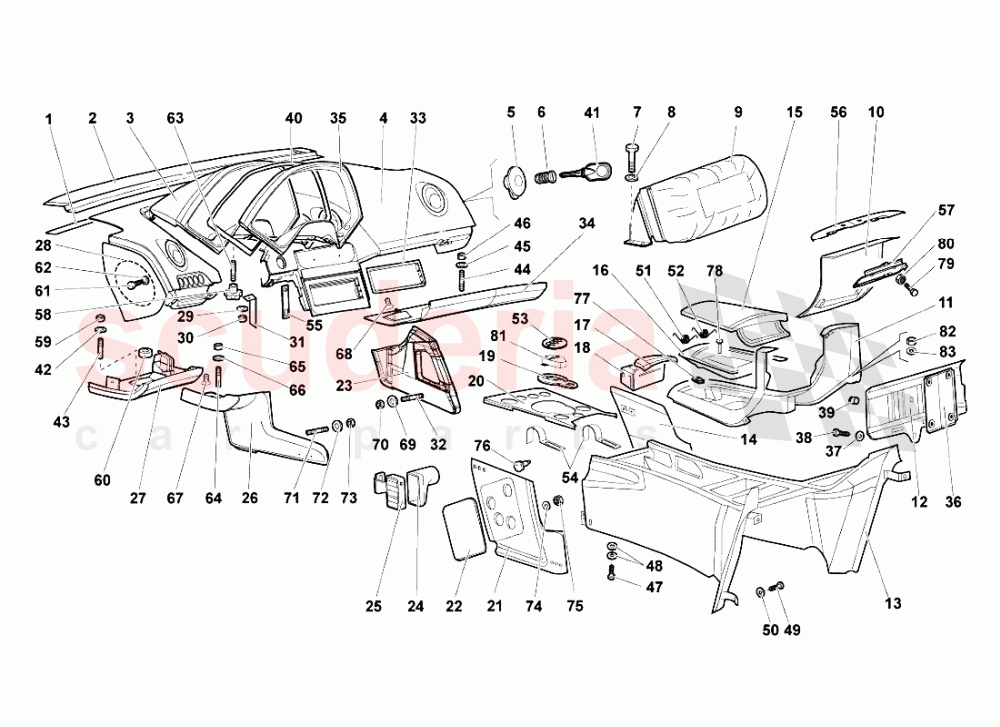

PASSENGER COMPARTMENT TRIMS of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410819018
SEALING TAPE 		- 1 Enquire
002 410858349
UPPER FRONT DASHBOARD ASSEMBLY 		- 1 Enquire
003 410858278
DASHBOARD COVERING (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
004 69013999
DASHBOARD UPPER PART ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
005 410919237
AIRBAG SWITCH 		- 1 Enquire
006 410919226
AIRBAG BLOCK 		- 1 Enquire
007 8700611
SCREW UNI 5931 6X14 		- 4 Enquire
008 8410611
WASHER 		- 4 Enquire
009 413880199
AIR BAG MODULE 		- 1 Enquire
010 78013717
TUNNEL FIXED COVER ASSEMBLY (Supply VIN - MANUAL GEARBOX) 		- 1 Enquire
010 410868711
TUNNEL FIXED COVER ASSEMBLY (Supply VIN - E-GEAR) 		- 1 Enquire
011 410864205E
ARMREST CUSHION ASSEMBLY (E-GEAR - CARBON INTERIOR -SUPPLY VIN) 		- 1 Enquire
011 410863323
ARMREST CUSHION ASSEMBLY (E-GEAR - SUPPLY VIN) 		- 1 Enquire
011 410864205D
ARMREST CUSHION ASSEMBLY (MANUAL GEARBOX - CARBON INTERIOR) 		- 1 Enquire
011 410863323A
ARMREST CUSHION ASSEMBLY (MANUAL GEARBOX - SUPPLY VIN) 		- 1 Enquire
012 78013705
SAFETY BELT ROLLING UP DEVICE COVER ASSEMBLY (Supply VIN) 		- 1 Enquire
013 78013712
TUNNEL COVER ASSEMBLY (Supply VIN - MANUAL GEARBOX) 		- 1 Enquire
013 413863242B
TUNNEL COVER ASSEMBLY (Supply VIN - E-GEAR) 		- 1 Enquire
014 78013706
TUNNEL RIGHT FRONT SIDE COVER ASSEMBLY (Supply VIN) 		- 1 Enquire
015 410863284
GLOVE BOX COVER ASSEMBLY (Supply VIN - E-GEAR) 		- 1 Enquire
015 410863761
GLOVE BOX COVER ASSEMBLY (Supply VIN - MANUAL GEARBOX) 		- 1 Enquire
016 410863300A
GLOVE BOX (E-GEAR) 		- 1 Enquire
016 410863300
GLOVE BOX (MANUAL GEARBOX) 		- 1 Enquire
017 410857405A
ASHTRAY ASSEMBLY (CARBON INTERIOR) 		- 1 Enquire
017 413863849
ASHTRAY ASSEMBLY (Supply VIN) 		- 1 Enquire
018 410857950
ASH TRAY 4B0857406 		- 1 Enquire
019 410713221
FRAME (FROM VIN 1304 L147EG - E-GEAR) 		- 1 Enquire
019 410711139
FRAME (MANUAL GEARBOX) 		- 1 Enquire
020 418863315D
ORNAMENT (MANUAL GEARBOX - CARBON INTERIOR) 		- 1 Enquire
020 418863315E
ORNAMENT (E-GEAR - CARBON INTERIOR - SUPPLY VIN) 		- 1 Enquire
020 418863315
ORNAMENT (Supply VIN - MANUAL GEARBOX) 		- 1 Enquire
020 418863315A
ORNAMENT (FROM VIN 1304 L147EG - E-GEAR - SUPPLY VIN) 		- 1 Enquire
021 78013687
TUNNEL LEFT FRONT SIDE COVER ASSEMBLY (Supply VIN) 		- 1 Enquire
022 413868681
PLATE 		- 1 Enquire
023 413857607A
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (CARBON INTERIOR) 		- 1 Enquire
023 413857927C
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
024 410864255
OUTLET 		- 1 Enquire
025 410864877
AIR PIPE UNION GRID, DRIVER@S SIDE 		- 1 Enquire
026 69013655
CAR HI-FI SYSTEM DASHBOARD LEFT SIDE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
027 413858793A
LOWER LEFT DASHBOARD ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
028 413857086A
RIGHT SIDE COVER ASSEMBLY (CARBON INTERIOR) 		- 1 Enquire
028 413857085A
LEFT SIDE COVER ASSEMBLY (CARBON INTERIOR) 		- 1 Enquire
028 69013669
LEFT SIDE COVER ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
028 69013670
RIGHT SIDE COVER ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
029 8400606
WASHER 		- 1 Enquire
030 N01100637
NUT M6 		- 1 Enquire
031 410857320
BRACKET 		- 1 Enquire
032 WHT003116
STUD BOLT M5X25 		- 1 Enquire
032 8300510
STUD BOLT M5X14 		- 1 Enquire
033 410035314
BECKER BRACKET (For Becker Radio System) 		- 1 Enquire
033 410035313
BRACKET 		- 1 Enquire
034 413857504
LOWER RIGHT DASHBOARD ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN) 		- 1 Enquire
035 410858277
FRAME 		- 1 Enquire
035 410858277A
FRAME (CARBON INTERIOR) 		- 1 Enquire
036 410857350
SHEET 		- 1 Enquire
037 N90840802
WASHER 		- 1 Enquire
038 WHT000766
SCREW 2,9X9,5 		- 1 Enquire
039 410919242
FRAME 		- 1 Enquire
040 410858177
GASKET 		- 1 Enquire
041 410860163
AIRBAG KEY 		- 1 Enquire
042 N91109202
WASHER 		- 3 Enquire
043 WHT003116
STUD BOLT M5X25 		- 1 Enquire
043 8300510
STUD BOLT M5X14 		- 2 Enquire
044 WHT003116
STUD BOLT M5X25 		- 2 Enquire
045 N91109202
WASHER 		- 2 Enquire
046 WHT000760
NUT M5 		- 2 Enquire
047 WHT003069
SCREW M6X1X20 		- 2 Enquire
048 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		- 4 Enquire
049 WHT003069
SCREW M6X1X20 		- 4 Enquire
050 WHT002961
WASHER 		- 4 Enquire
051 410863285
SPRING (MANUAL GEARBOX) 		- 1 Enquire
051 410863285A
SPRING (E-GEAR) 		- 1 Enquire
052 410863286A
SPRING (E-GEAR) 		- 1 Enquire
052 410863286
SPRING (MANUAL GEARBOX) 		- 1 Enquire
053 400713110D
SELECTOR (E-GEAR) 		- 1 Enquire
054 410864191
SUPPORT (E-GEAR) 		- 2 Enquire
055 410035329
BRACKET 		- 2 Enquire
058 410858482
HANDLE 		- 2 Enquire
059 WHT000760
NUT M5 		- 3 Enquire
060 400804347
SPACER 		- 1 Enquire
061 WHT003069
SCREW M6X1X20 		- 2 Enquire
062 WHT002961
WASHER 		- 2 Enquire
063 8300510
STUD BOLT M5X14 		- 2 Enquire
064 WHT003116
STUD BOLT M5X25 		- 1 Enquire
065 WHT000760
NUT M5 		- 1 Enquire
066 WHT002961
WASHER 		- 1 Enquire
067 410863988
PLUG 		- 1 Enquire
068 400867299
FASTENER LYS FUSION, YELLOW 		- 2 Enquire
069 WHT002961
WASHER 		- 3 Enquire
070 WHT000760
NUT M5 		- 3 Enquire
071 8300402
STUD BOLT M4X16 		- 2 Enquire
072 N91109201
WASHER 		- 2 Enquire
073 WHT002959
CLAMPING NUT 		- 2 Enquire
074 N91109201
WASHER 		- 4 Enquire
075 WHT002959
CLAMPING NUT 		- 4 Enquire
076 400863119
BUNGS 		- 5 Enquire
077 N91104501
CLIP 		- 5 Enquire
079 N01020717
SCREW M5X12 		- 3 Enquire
080 WHT000760
NUT M5 		- 3 Enquire
082 WHT002959
CLAMPING NUT 		- 4 Enquire
083 N91109202
WASHER 		- 4 Enquire
