Lamborghini Huracan STO - TIMING CHAIN (109.03.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6E109465BH	TIMING CHAIN	$190.19	To Order

Photo	Part No	Description	Price (each)	Stock
	6E109465BJ	TIMING CHAIN	$196.44	IN STOCK
	6E109465BK	TIMING CHAIN	$190.19	To Order

Photo	Part No	Description	Price (each)	Stock
	79109217AB	CHAIN TENSIONER	$211.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109139J	SEAL	$19.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109470	COVERING	$5.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109180A	AXIAL BEARING	$22.05	To Order

Photo	Part No	Description	Price (each)	Stock
	N91129001	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$5.19	To Order

Photo	Part No	Description	Price (each)	Stock
	N90888502	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	N90962301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$7.80	To Order

Photo	Part No	Description	Price (each)	Stock
	N90954903	HEX SOCKET COUNTERSUNK BOLT	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	6E109077N	CHAIN SPROCKET	$239.25	To Order

Photo	Part No	Description	Price (each)	Stock
	79109224E	BEARING PIN	$94.63	To Order

Photo	Part No	Description	Price (each)	Stock
	79109224F	BEARING PIN	$104.17	To Order

Photo	Part No	Description	Price (each)	Stock
	79109180D	AXIAL BEARING	$11.22	To Order

Photo	Part No	Description	Price (each)	Stock
	79109469AL	GUIDE RAIL	$31.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109469AM	GUIDE RAIL	$31.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109507AP	CHAIN TENSIONER	$144.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109139L	SEAL	$15.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	$1.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109247P	BEARING BUSH	$13.64	To Order

Photo	Part No	Description	Price (each)	Stock
	79109218AB	CHAIN TENSIONER	$179.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109139K	SEAL	$19.94	IN STOCK

View All

Diagram Tap to enlarge

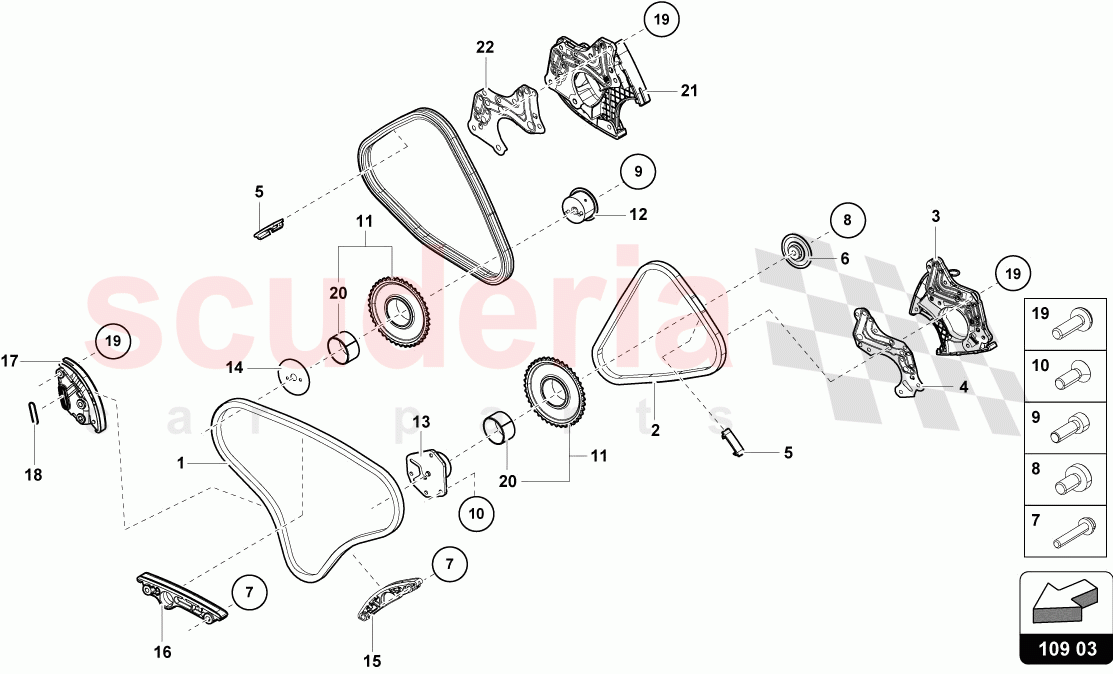

Timing Chain

Lamborghini Huracan STO

Illustration Number: 109.03.00

Lamborghini Huracan STO - TIMING CHAIN (109.03.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	6E109465BH	TIMING CHAIN	6E109465BH TIMING CHAIN UPPER CENTRE	$190.19	1
2	6E109465BJ	TIMING CHAIN IN STOCK	6E109465BJ TIMING CHAIN LEFT IN STOCK	$196.44	1
2	6E109465BK	TIMING CHAIN	6E109465BK TIMING CHAIN RIGHT	$190.19	1
3	79109217AB	CHAIN TENSIONER IN STOCK	79109217AB CHAIN TENSIONER LEFT IN STOCK	$211.73	1
4	79109139J	SEAL IN STOCK	79109139J SEAL LEFT IN STOCK	$19.94	1
5	79109470	COVERING IN STOCK	79109470 COVERING IN STOCK	$5.79	2
6	79109180A	AXIAL BEARING	79109180A AXIAL BEARING	$22.05	1
7	N91129001	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91129001 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M7X36	$5.19 MSRP: ~~7.04~~ (26.3% off)	4
8	N90888502	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90888502 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X16	$2.35 MSRP: ~~7.13~~ (67% off)	1
9	N90962301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90962301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X30	$7.80	1
10	N90954903	HEX SOCKET COUNTERSUNK BOLT	N90954903 HEX SOCKET COUNTERSUNK BOLT M6X18	$0.82 MSRP: ~~7.29~~ (88.8% off)	1
11	6E109077N	CHAIN SPROCKET	6E109077N CHAIN SPROCKET Z=24	$239.25	2
12	79109224E	BEARING PIN	79109224E BEARING PIN RIGHT	$94.63	1
13	79109224F	BEARING PIN	79109224F BEARING PIN LEFT	$104.17	1
14	79109180D	AXIAL BEARING	79109180D AXIAL BEARING	$11.22	1
15	79109469AL	GUIDE RAIL IN STOCK	79109469AL GUIDE RAIL IN STOCK	$31.59	1
16	79109469AM	GUIDE RAIL IN STOCK	79109469AM GUIDE RAIL IN STOCK	$31.51	1
17	79109507AP	CHAIN TENSIONER IN STOCK	79109507AP CHAIN TENSIONER IN STOCK	$144.38	1
18	79109139L	SEAL IN STOCK	79109139L SEAL IN STOCK	$15.84	1
19	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT M6X20 IN STOCK	$1.55	21
20	79109247P	BEARING BUSH	79109247P BEARING BUSH	$13.64	1
21	79109218AB	CHAIN TENSIONER IN STOCK	79109218AB CHAIN TENSIONER IN STOCK	$179.79	1
22	79109139K	SEAL IN STOCK	79109139K SEAL RIGHT IN STOCK	$19.94	1
