CAMSHAFT, VALVES of Lamborghini Lamborghini Huracan STO

View All

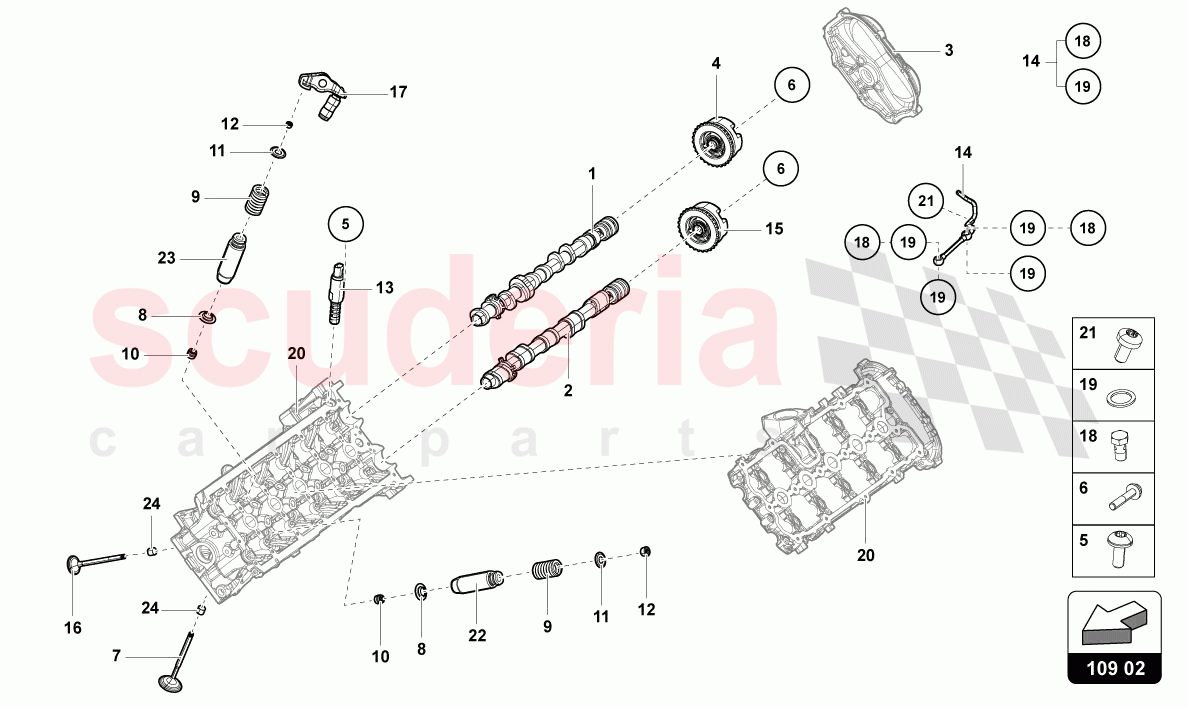

Lamborghini Huracan STO - CAMSHAFT, VALVES (109.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7L109101BS	CAMSHAFT	Enquire	To Order
	7L109103AR	CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109102AT	CAMSHAFT	Enquire	To Order
	7L109104AB	CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109285K	COVER	Enquire	To Order
	7L109286M	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109083H	CAMSHAFT ADJUSTER UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042802	FLAT HEAD MULTI-POINT SOCKET BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109601K	INLET VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109629F	SPRING SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109623J	VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	57109675	VALVE STEM SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109641G	SPRING DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109651	COTTER, SPLIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109257	CONTROL VALVE	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	7L121455J	COOLANT PIPE	Enquire	To Order
	7L121455L	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109084G	CAMSHAFT ADJUSTER UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109611H	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79109409B	ROLLER ROCKER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0210756	BANJO BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138063	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005227	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6D103415N	VALVE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6H103415F	EXHAUST VALVE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103953	CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7L109101BS	CAMSHAFT	7L109101BS CAMSHAFT INLET CYLINDERS 1-5	-	1	Enquire
1	7L109103AR	CAMSHAFT	7L109103AR CAMSHAFT INLET CYLINDERS 6-10	-	1	Enquire
2	7L109102AT	CAMSHAFT	7L109102AT CAMSHAFT OUTLET CYLINDERS 1-5	-	1	Enquire
2	7L109104AB	CAMSHAFT	7L109104AB CAMSHAFT OUTLET CYLINDERS 6-10	-	1	Enquire
3	7L109285K	COVER	7L109285K COVER LEFT	-	1	Enquire
3	7L109286M	COVER	7L109286M COVER RIGHT	-	1	Enquire
4	7L109083H	CAMSHAFT ADJUSTER UNIT	7L109083H CAMSHAFT ADJUSTER UNIT INLET	-	2	Enquire
5	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	N91068201 HEXAGON SOCKET FLAT HEAD BOLT M4X10	-	4	Enquire
6	N91042802	FLAT HEAD MULTI-POINT SOCKET BOLT	N91042802 FLAT HEAD MULTI-POINT SOCKET BOLT M12X1 -25X60X30	-	4	Enquire
7	7L109601K	INLET VALVE	7L109601K INLET VALVE	-	20	Enquire
8	7L109629F	SPRING SUPPORT	7L109629F SPRING SUPPORT	-	40	Enquire
9	7L109623J	VALVE SPRING	7L109623J VALVE SPRING	-	40	Enquire
10	57109675	VALVE STEM SEAL	57109675 VALVE STEM SEAL	-	40	Enquire
11	7L109641G	SPRING DISC	7L109641G SPRING DISC	-	40	Enquire
12	7L109651	COTTER, SPLIT	7L109651 COTTER, SPLIT	-	80	Enquire
13	7L109257	CONTROL VALVE ARRIVING SOON	7L109257 CONTROL VALVE ARRIVING SOON	-	4	Enquire
14	7L121455J	COOLANT PIPE	7L121455J COOLANT PIPE LEFT	-	1	Enquire
14	7L121455L	COOLANT PIPE	7L121455L COOLANT PIPE RIGHT	-	1	Enquire
15	7L109084G	CAMSHAFT ADJUSTER UNIT	7L109084G CAMSHAFT ADJUSTER UNIT OUTLET	-	2	Enquire
16	7L109611H	EXHAUST VALVE	7L109611H EXHAUST VALVE 07L 103 063 BL 07L 103 064 BL	-	20	Enquire
17	79109409B	ROLLER ROCKER ARM	79109409B ROLLER ROCKER ARM 07L 103 063 BL 07L 103 064 BL	-	40	Enquire
18	N0210756	BANJO BOLT	N0210756 BANJO BOLT 6	-	4	Enquire
19	N0138063	SEAL RING	N0138063 SEAL RING 10X14	-	8	Enquire
21	WHT005227	OVAL HEXAGON SOCKET HEAD BOLT	WHT005227 OVAL HEXAGON SOCKET HEAD BOLT M6X12	-	2	Enquire
22	6D103415N	VALVE GUIDE	6D103415N VALVE GUIDE	-	20	Enquire
23	6H103415F	EXHAUST VALVE GUIDE	6H103415F EXHAUST VALVE GUIDE	-	20	Enquire
24	7L103953	CAP	7L103953 CAP	-	20	Enquire

CAMSHAFT, VALVES (109.02.00)

TIMING CHAIN (109.03.00)

TIMING CHAIN (109.04.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Camshaft, Valves

Lamborghini Huracan STO

Illustration Number: 109.02.00

Lamborghini Huracan STO - CAMSHAFT, VALVES (109.02.00)
