Brake Disc (Vented) Front

Lamborghini Huracan Evo Spyder 2WD

Illustration Number: 615.03.00

Find Your Part

Lamborghini Huracan Evo Spyder 2WD - BRAKE DISC (VENTED) FRONT (615.03.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4S0615301B BRAKE DISC (VENTED) $952.37 IN STOCK
Photo Part No Description Price (each) Stock
N10648301 HEX SOCKET COUNTERSUNK BOLT $1.19 IN STOCK
Photo Part No Description Price (each) Stock
4T0615105EC BRAKE CALIPER HOUSING $2,708.32 To Order
4T0615105ED BRAKE CALIPER HOUSING $2,849.45 To Order
4T0615105EE BRAKE CALIPER HOUSING $2,842.74 To Order
...and 30 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
420615437 CONTACTS $66.80 IN STOCK
Photo Part No Description Price (each) Stock
4S0611845H BRACKET $149.87 To Order
4S0611846H BRACKET $11.83 To Order
Photo Part No Description Price (each) Stock
4S0611707F BRAKE HOSE $104.71 To Order
Photo Part No Description Price (each) Stock
4S0611841H BRACKET $11.83 To Order
4S0611842H BRACKET $11.83 To Order
Photo Part No Description Price (each) Stock
4S0611847K RETAINER FOR BRAKE HOSE $6.98 To Order
4S0611848K RETAINER FOR BRAKE HOSE $6.98 To Order
Photo Part No Description Price (each) Stock
4S0698151N 1 SET OF BRAKE PADS FOR DISK BRAKE $814.51 To Order
4S0698151R 1 SET OF BRAKE PADS FOR DISK BRAKE $803.98 To Order
Photo Part No Description Price (each) Stock
N10572403 SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. $2.90 To Order
Photo Part No Description Price (each) Stock
N0902619 HEXAGON HEAD BOLT (COMBI) $1.89 To Order
Photo Part No Description Price (each) Stock
N90692402 POP RIVET $1.68 IN STOCK
Photo Part No Description Price (each) Stock
4E0927803F SPEED SENSOR $135.50 IN STOCK
4E0927804F SPEED SENSOR $131.18 To Order
Photo Part No Description Price (each) Stock
WHT001330A SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD $13.59 IN STOCK
Photo Part No Description Price (each) Stock
N10406504 OVAL HEXAGON SOCKET HEAD BOLT $1.74 IN STOCK
Photo Part No Description Price (each) Stock
4S0615311 COVER PLATE FOR BRAKE DISC $50.07 IN STOCK
4S0615312 COVER PLATE FOR BRAKE DISC $48.46 To Order
Photo Part No Description Price (each) Stock
N01474011 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD $2.23 To Order
Photo Part No Description Price (each) Stock
80A611483 DUST CAP $5.94 To Order
Photo Part No Description Price (each) Stock
8A0615273 1 SET BLEEDER VALVES WITH DUST CAP $27.87 To Order
View All

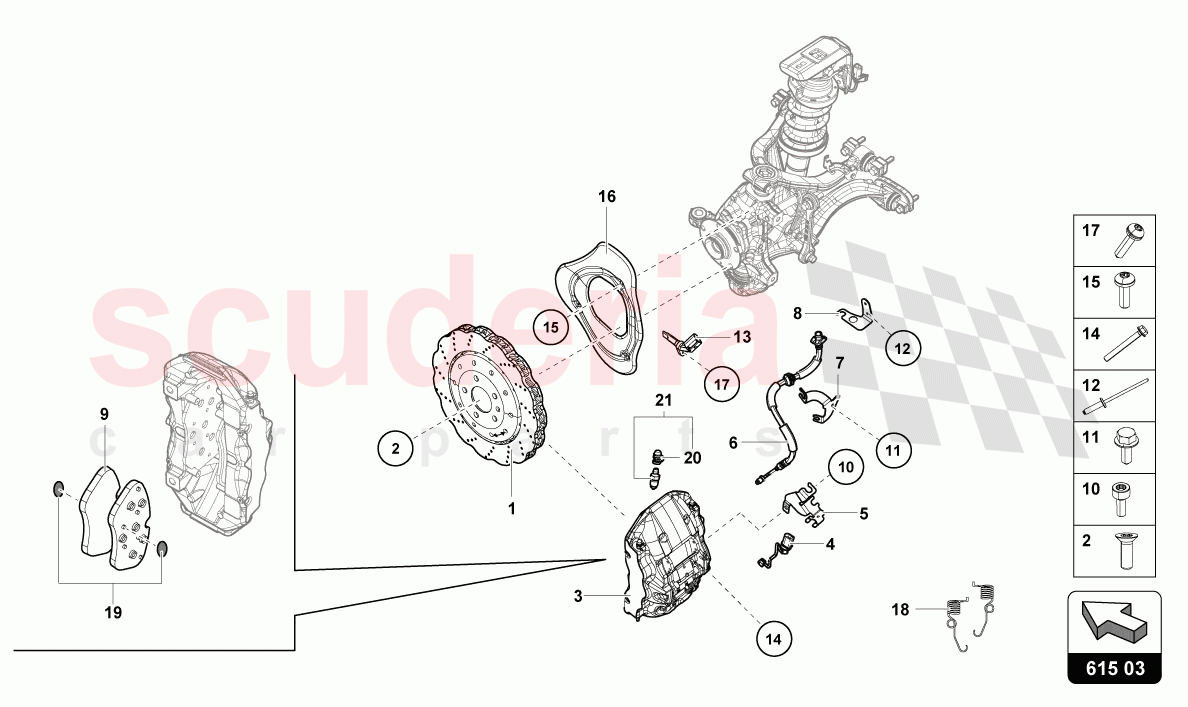

BRAKE DISC (VENTED) FRONT of Lamborghini Lamborghini Huracan Evo Spyder 2WD Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4S0615301B
BRAKE DISC (VENTED)
IN STOCK 		$952.37 2
2 N10648301
HEX SOCKET COUNTERSUNK BOLT
M6X16
IN STOCK 		$1.19 (83.7% off) 2
3 4T0615105EC
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA16550-LEFT BLACK 		$2,708.32 1
3 4T0615105ED
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA16542-LEFT YELLOW 		$2,849.45 1
3 4T0615105EE
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA 16593-LEFT SILVER 		$2,842.74 1
3 4T0615105EF
BRAKE CALIPER HOUSING
COPPER FREE - FROM LA16579-LEFT ORANGE 		$2,869.62 1
3 4T0615105EG
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA 16552-LEFT RED 		$2,869.62 1
3 4T0615105EH
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA16545-LEFT 'VERDE MANTIS' 		$2,930.10 1
3 4T0615105EJ
BRAKE CALIPER HOUSING
LEFT WHITE 		- 1 Enquire
3 4T0615105FT
BRAKE CALIPER HOUSING
AD-PERSONAM - COPPER FREE - FROM VIN LA16593-LEFT 'VERDE SCANDAL' 		$3,393.83 1
3 4T0615105GA
BRAKE CALIPER HOUSING
AD-PERSONAM - COPPER FREE - FROM VIN LA16593-LEFT BLUE 		$3,393.83 1
3 4T0615106EC
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA16550-RIGHT BLACK 		$2,708.32 1
3 4T0615106ED
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA16542-RIGHT YELLOW 		$2,849.45 1
3 4T0615106EE
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA16593-RIGHT SILVER 		$2,842.74 1
3 4T0615106EF
BRAKE CALIPER HOUSING
COPPER FREE - FROM LA16579-RIGHT ORANGE 		$2,869.62 1
3 4T0615106EG
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA 16552-RIGHT RED 		$2,869.62 1
3 4T0615106EH
BRAKE CALIPER HOUSING
COPPER FREE - FROM VIN LA16545-RIGHT 'VERDE MANTIS' 		$2,930.10 1
3 4T0615106FT
BRAKE CALIPER HOUSING
AD-PERSONAM - COPPER FREE - FROM VIN LA16593-RIGHT 'VERDE SCANDAL' 		$3,393.83 1
3 4T0615106GA
BRAKE CALIPER HOUSING
AD-PERSONAM - COPPER FREE - FROM VIN LA16593-RIGHT BLUE 		$3,393.83 1
3 4T0615105FD
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT BLACK 		$2,802.43 1
3 4T0615105FE
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT YELLOW 		$2,936.83 1
3 4T0615105FF
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT SILVER 		$2,930.10 1
3 4T0615105FG
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT ORANGE 		$2,950.26 1
3 4T0615105FH
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT RED 		$2,950.26 1
3 4T0615105GF
BRAKE CALIPER HOUSING
AD-PERSONAM - NO COPPER FREE-LEFT 'VERDE SCANDAL' 		$3,393.83 1
3 4T0615105GG
BRAKE CALIPER HOUSING
AD-PERSONAM - NO COPPER FREE-LEFT BLUE 		$3,393.83 1
3 4T0615106FD
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT BLACK 		$2,802.43 1
3 4T0615106FE
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT YELLOW 		$2,936.83 1
3 4T0615106FF
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT SILVER 		$2,930.10 1
3 4T0615106FG
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT ORANGE 		$2,950.26 1
3 4T0615106FH
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT RED 		$2,950.26 1
3 4T0615106FJ
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT 'VERDE MANTIS' 		$3,017.48 1
3 4T0615106GF
BRAKE CALIPER HOUSING
AD-PERSONAM - NO COPPER FREE-RIGHT 'VERDE SCANDAL' 		$3,393.83 1
3 4T0615106GG
BRAKE CALIPER HOUSING
AD-PERSONAM - NO COPPER FREE-RIGHT BLUE 		$3,393.83 1
3 4T0615105FJ
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT 'VERDE MANTIS' 		$3,017.48 1
4 420615437
CONTACTS
FRONT
IN STOCK 		$66.80 2
5 4S0611845H
BRACKET
LEFT 		$149.87 1
5 4S0611846H
BRACKET
RIGHT 		$11.83 1
6 4S0611707F
BRAKE HOSE 		$104.71 2
7 4S0611841H
BRACKET
LEFT FRONT 		$11.83 1
7 4S0611842H
BRACKET
RIGHT FRONT 		$11.83 1
8 4S0611847K
RETAINER FOR BRAKE HOSE
LEFT FRONT 		$6.98 1
8 4S0611848K
RETAINER FOR BRAKE HOSE
RIGHT FRONT 		$6.98 1
9 4S0698151N
1 SET OF BRAKE PADS FOR DISK BRAKE
COPPER FREE-365X34MM FRONT 		$814.51 1
9 4S0698151R
1 SET OF BRAKE PADS FOR DISK BRAKE
NO COPPER FREE-365X34MM FRONT 		$803.98 1
10 N10572403
SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.
M8X16 		$2.90 (59.3% off) 4
11 N0902619
HEXAGON HEAD BOLT (COMBI)
M6X20 		$1.89 (74.1% off) 1
12 N90692402
POP RIVET
4 -8X10 N906924
IN STOCK 		$1.68 (76.5% off) 1
13 4E0927803F
SPEED SENSOR
RIGHT
IN STOCK 		$135.50 1
13 4E0927804F
SPEED SENSOR
LEFT 		$131.18 1
14 WHT001330A
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
M12X1 -5X77X30
IN STOCK 		$13.59 4
15 N10406504
OVAL HEXAGON SOCKET HEAD BOLT
M6X12
IN STOCK 		$1.74 (75.8% off) 2
16 4S0615311
COVER PLATE FOR BRAKE DISC
LEFT
IN STOCK 		$50.07 1
16 4S0615312
COVER PLATE FOR BRAKE DISC
RIGHT 		$48.46 1
17 N01474011
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
M6X16 		$2.23 (69.6% off) 2
20 80A611483
DUST CAP 		$5.94 4
21 8A0615273
1 SET BLEEDER VALVES WITH DUST CAP 		$27.87 2
22 3D0698269
1 SET ATTACHMENT PARTS 		$56.52 2
