Ceramic Brake Disc Front

Lamborghini Huracan Evo Spyder 2WD

Illustration Number: 615.01.00

Find Your Part

Lamborghini Huracan Evo Spyder 2WD - CERAMIC BRAKE DISC FRONT (615.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4S0615301D CERAMIC BRAKE DISC (VENTED) Enquire To Order
4S0615302D CERAMIC BRAKE DISC (VENTED) Enquire To Order
4T0615301A CERAMIC BRAKE DISC (VENTED) Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
N10648301 HEX SOCKET COUNTERSUNK BOLT Enquire To Order
Photo Part No Description Price (each) Stock
4T0615105DC BRAKE CALIPER HOUSING Enquire To Order
4T0615105DH BRAKE CALIPER HOUSING Enquire To Order
4T0615105ER BRAKE CALIPER HOUSING Enquire To Order
...and 31 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4S0615437D CONTACTS Enquire To Order
Photo Part No Description Price (each) Stock
4S0611845H BRACKET Enquire To Order
4S0611846H BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
4S0611707F BRAKE HOSE Enquire To Order
Photo Part No Description Price (each) Stock
4S0611841H BRACKET Enquire To Order
4S0611842H BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
4S0611847K RETAINER FOR BRAKE HOSE Enquire To Order
4S0611848K RETAINER FOR BRAKE HOSE Enquire To Order
Photo Part No Description Price (each) Stock
4S0698151AA 1 SET OF BRAKE PADS FOR DISK BRAKE Enquire To Order
4S0698151AB 1 SET OF BRAKE PADS FOR DISK BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
N10572403 SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. Enquire To Order
Photo Part No Description Price (each) Stock
N0902619 HEXAGON HEAD BOLT (COMBI) Enquire To Order
Photo Part No Description Price (each) Stock
N90692402 POP RIVET Enquire To Order
Photo Part No Description Price (each) Stock
4E0927803F SPEED SENSOR Enquire To Order
4E0927804F SPEED SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
WHT001330A SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Enquire To Order
Photo Part No Description Price (each) Stock
N10406504 OVAL HEXAGON SOCKET HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
4S0615311 COVER PLATE FOR BRAKE DISC Enquire To Order
4S0615312 COVER PLATE FOR BRAKE DISC Enquire To Order
Photo Part No Description Price (each) Stock
N01474011 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Enquire To Order
Photo Part No Description Price (each) Stock
R1400210 1 SET SPRINGS Enquire To Order
Photo Part No Description Price (each) Stock
4T0698010 1 SET DOUBLE-SIDED ADHESIVE TAPE Enquire To Order
Photo Part No Description Price (each) Stock
80A611483 DUST CAP Enquire To Order
Photo Part No Description Price (each) Stock
8A0615273 1 SET BLEEDER VALVES WITH DUST CAP Enquire To Order
Photo Part No Description Price (each) Stock
4S0698269A 1 SET ATTACHMENT PARTS Enquire To Order
Photo Part No Description Price (each) Stock
4E0698507 SET OF GASKETS FOR BRAKE CALIPER HOUSING Enquire To Order
View All

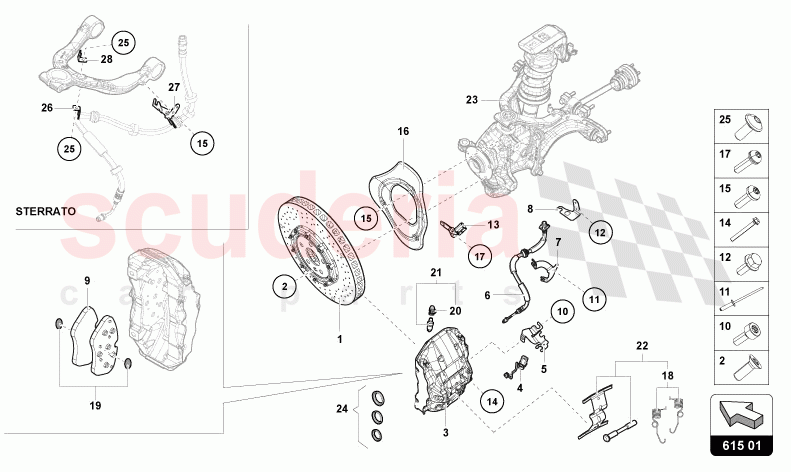

CERAMIC BRAKE DISC FRONT of Lamborghini Lamborghini Huracan Evo Spyder 2WD Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4S0615301D
CERAMIC BRAKE DISC (VENTED)
380X38MM 5/112 LEFT FRONT 		- 1 Enquire
1 4S0615302D
CERAMIC BRAKE DISC (VENTED)
380X38MM 5/112 RIGHT FRONT 		- 1 Enquire
1 4T0615301A
CERAMIC BRAKE DISC (VENTED)
MONOLOCK WHEELS-LEFT 		- 1 Enquire
1 4T0615302A
CERAMIC BRAKE DISC (VENTED)
MONOLOCK WHEELS-RIGHT 		- 1 Enquire
2 N10648301
HEX SOCKET COUNTERSUNK BOLT
M6X16 		- 2 Enquire
3 4T0615105DC
BRAKE CALIPER HOUSING
NO COPPER FREE - UNTIL VIN LA16579-LEFT YELLOW 		- 1 Enquire
3 4T0615105DH
BRAKE CALIPER HOUSING
AD PERSONAM - NO COPPER FREE - UNTIL VIN LA16581-LEFT 'VERDE SCANDAL' 		- 1 Enquire
3 4T0615105ER
BRAKE CALIPER HOUSING
COPPER FREE-LEFT BLACK 		- 1 Enquire
3 4T0615105ES
BRAKE CALIPER HOUSING
COPPER FREE-LEFT YELLOW 		- 1 Enquire
3 4T0615105ET
BRAKE CALIPER HOUSING
COPPER FREE-LEFT SILVER 		- 1 Enquire
3 4T0615105FA
BRAKE CALIPER HOUSING
COPPER FREE-LEFT ORANGE 		- 1 Enquire
3 4T0615105FB
BRAKE CALIPER HOUSING
COPPER FREE-LEFT RED 		- 1 Enquire
3 4T0615105FC
BRAKE CALIPER HOUSING
COPPER FREE-LEFT GREEN 		- 1 Enquire
3 4T0615105FM
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT SILVER 		- 1 Enquire
3 4T0615105GB
BRAKE CALIPER HOUSING
AD PERSONAM - COPPER FREE-LEFT 'VERDE SCANDAL' 		- 1 Enquire
3 4T0615105GC
BRAKE CALIPER HOUSING
COPPER FREE-LEFT BLUE 		- 1 Enquire
3 4T0615106ER
BRAKE CALIPER HOUSING
COPPER FREE-RIGHT BLACK 		- 1 Enquire
3 4T0615106ES
BRAKE CALIPER HOUSING
COPPER FREE-RIGHT YELLOW 		- 1 Enquire
3 4T0615106ET
BRAKE CALIPER HOUSING
COPPER FREE-RIGHT SILVER 		- 1 Enquire
3 4T0615106FA
BRAKE CALIPER HOUSING
COPPER FREE-RIGHT ORANGE 		- 1 Enquire
3 4T0615106FB
BRAKE CALIPER HOUSING
COPPER FREE-RIGHT RED 		- 1 Enquire
3 4T0615106FC
BRAKE CALIPER HOUSING
COPPER FREE-RIGHT 'VERDE MANTIS' 		- 1 Enquire
3 4T0615106FM
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT SILVER 		- 1 Enquire
3 4T0615106GB
BRAKE CALIPER HOUSING
AD PERSONAM - COPPER FREE-RIGHT 'VERDE SCANDAL' 		- 1 Enquire
3 4T0615106GC
BRAKE CALIPER HOUSING
AD PERSONAM - COPPER FREE-RIGHT BLUE 		- 1 Enquire
3 4T0615105FK
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT BLACK 		- 1 Enquire
3 4T0615105FL
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT YELLOW 		- 1 Enquire
3 4T0615105FN
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT ORANGE 		- 1 Enquire
3 4T0615105FP
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT RED 		- 1 Enquire
3 4T0615105FQ
BRAKE CALIPER HOUSING
NO COPPER FREE-LEFT GREEN 		- 1 Enquire
3 4T0615105GD
BRAKE CALIPER HOUSING
AD PERSONAM - NO COPPER FREE-LEFT 'VERDE SCANDAL' 		- 1 Enquire
3 4T0615105GE
BRAKE CALIPER HOUSING
AD PERSONAM - NO COPPER FREE-LEFT BLUE 		- 1 Enquire
3 4T0615106FK
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT BLACK 		- 1 Enquire
3 4T0615106FL
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT YELLOW 		- 1 Enquire
3 4T0615106FN
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT ORANGE 		- 1 Enquire
3 4T0615106FP
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT RED 		- 1 Enquire
3 4T0615106FQ
BRAKE CALIPER HOUSING
NO COPPER FREE-RIGHT 'VERDE MANTIS' 		- 1 Enquire
3 4T0615106GD
BRAKE CALIPER HOUSING
AD PERSONAM - NO COPPER FREE-RIGHT 'VERDE SCANDAL' 		- 1 Enquire
3 4T0615106GE
BRAKE CALIPER HOUSING
AD PERSONAM - NO COPPER FREE-RIGHT BLUE 		- 1 Enquire
4 4S0615437D
CONTACTS
FRONT 		- 2 Enquire
5 4S0611845H
BRACKET
LEFT 		- 1 Enquire
5 4S0611846H
BRACKET
RIGHT 		- 1 Enquire
6 4S0611707F
BRAKE HOSE
FRONT 		- 2 Enquire
7 4S0611841H
BRACKET
LEFT FRONT 		- 1 Enquire
7 4S0611842H
BRACKET
RIGHT FRONT 		- 1 Enquire
8 4S0611847K
RETAINER FOR BRAKE HOSE
LEFT FRONT 		- 1 Enquire
8 4S0611848K
RETAINER FOR BRAKE HOSE
RIGHT FRONT 		- 1 Enquire
9 4S0698151AA
1 SET OF BRAKE PADS FOR DISK BRAKE
NO COPPER FREE-380X38MM FRONT 		- 1 Enquire
9 4S0698151AB
1 SET OF BRAKE PADS FOR DISK BRAKE
COPPER FREE-380X38MM FRONT 		- 1 Enquire
10 N10572403
SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.
M8X16 		- 4 Enquire
11 N0902619
HEXAGON HEAD BOLT (COMBI)
M6X20 		- 1 Enquire
12 N90692402
POP RIVET
4 -8X10 		- 1 Enquire
13 4E0927803F
SPEED SENSOR
RIGHT 		- 1 Enquire
13 4E0927804F
SPEED SENSOR
LEFT 		- 1 Enquire
14 WHT001330A
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
M12X1 -5X77X30 		- 4 Enquire
15 N10406504
OVAL HEXAGON SOCKET HEAD BOLT
M6X12 		- 3 Enquire
16 4S0615311
COVER PLATE FOR BRAKE DISC
LEFT 		- 1 Enquire
16 4S0615312
COVER PLATE FOR BRAKE DISC
RIGHT 		- 1 Enquire
17 N01474011
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
M6X16 		- 2 Enquire
18 R1400210
1 SET SPRINGS
4 SPRINGS FOR KIT 		- 1 Enquire
19 4T0698010
1 SET DOUBLE-SIDED ADHESIVE TAPE 		- 1 Enquire
20 80A611483
DUST CAP 		- 2 Enquire
21 8A0615273
1 SET BLEEDER VALVES WITH DUST CAP 		- 2 Enquire
22 4S0698269A
1 SET ATTACHMENT PARTS 		- 2 Enquire
24 4E0698507
SET OF GASKETS FOR BRAKE CALIPER HOUSING 		- 2 Enquire
