Name: DOORS
Rating: 5.0 (1 reviews)

View All

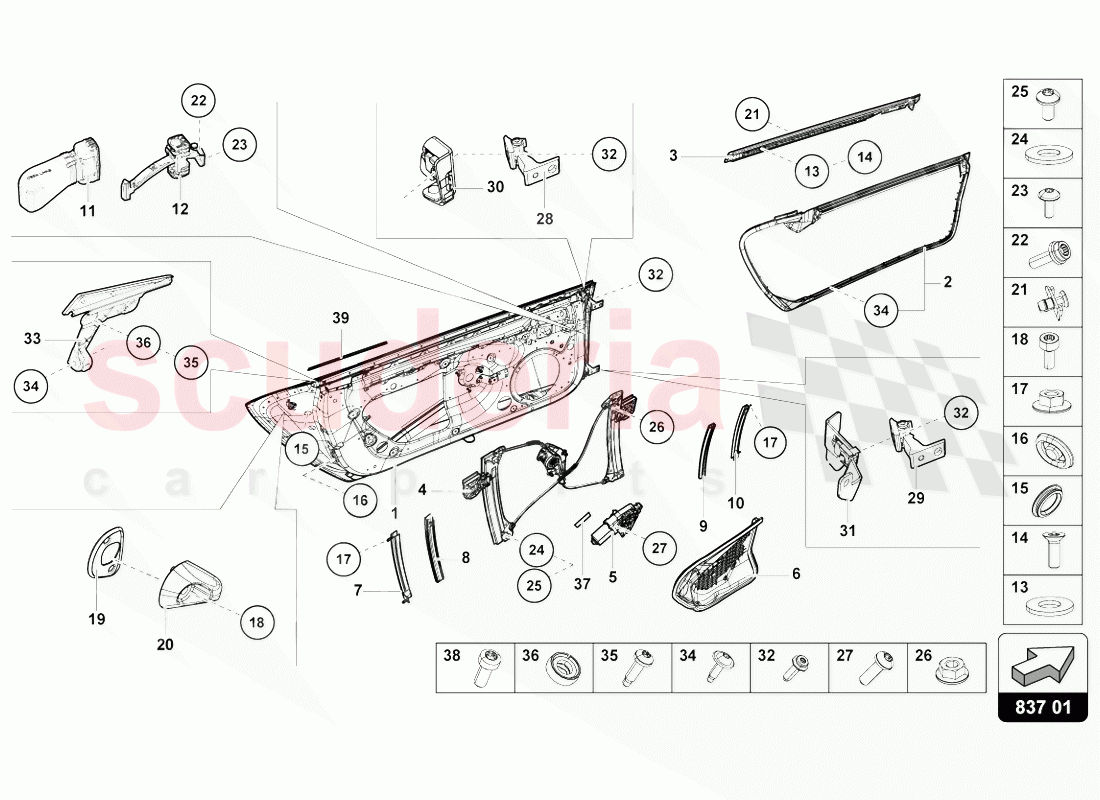

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T7831121	REINFORCEMENT FOR DOOR HANDLE	$313.85	To Order
	4T7831122	REINFORCEMENT FOR DOOR HANDLE	$317.21	To Order

Photo	Part No	Description	Price (each)	Stock
	N91138701	HEXAGON BOLT WITH INNER HEX ROUND HEAD (COMBI)	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	N10595002	ROUND HD. SCREW	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	4T7837173	BUSH	$36.03	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4T7831051C	DOOR	4T7831051C DOOR LEFT	$5,900.52	1
1	4T7831052C	DOOR	4T7831052C DOOR RIGHT	$5,900.52	1
3	4T7837477A	WINDOW APERTURE SEAL	4T7837477A WINDOW APERTURE SEAL LEFT	$264.12	1
3	4T7837478A	WINDOW APERTURE SEAL	4T7837478A WINDOW APERTURE SEAL RIGHT	$264.12	1
19	4T7831431	DOOR SEAL	4T7831431 DOOR SEAL LEFT	$10.91	1
19	4T7831432	DOOR SEAL	4T7831432 DOOR SEAL RIGHT	$10.91	1
20	4T7831121	REINFORCEMENT FOR DOOR HANDLE	4T7831121 REINFORCEMENT FOR DOOR HANDLE LEFT	$313.85	-
20	4T7831122	REINFORCEMENT FOR DOOR HANDLE	4T7831122 REINFORCEMENT FOR DOOR HANDLE RIGHT	$317.21	-
33	4T7837901B	TRIM FOR DOOR WINDOW FRAME	4T7837901B TRIM FOR DOOR WINDOW FRAME LEFT	$751.35	1
33	4T7837902B	TRIM FOR DOOR WINDOW FRAME	4T7837902B TRIM FOR DOOR WINDOW FRAME RIGHT	$751.35	1
34	N91138701	HEXAGON BOLT WITH INNER HEX ROUND HEAD (COMBI)	N91138701 HEXAGON BOLT WITH INNER HEX ROUND HEAD (COMBI) M5X30	$0.85 MSRP: ~~7.29~~ (88.3% off)	2
35	N10595002	ROUND HD. SCREW	N10595002 ROUND HD. SCREW M5X18	$1.47	4
36	4T7837173	BUSH	4T7837173 BUSH	$36.03	4
