REINFORCEMENT of Lamborghini Lamborghini Huracan Evo Spyder

View All

Lamborghini Huracan Evo Spyder - REINFORCEMENT

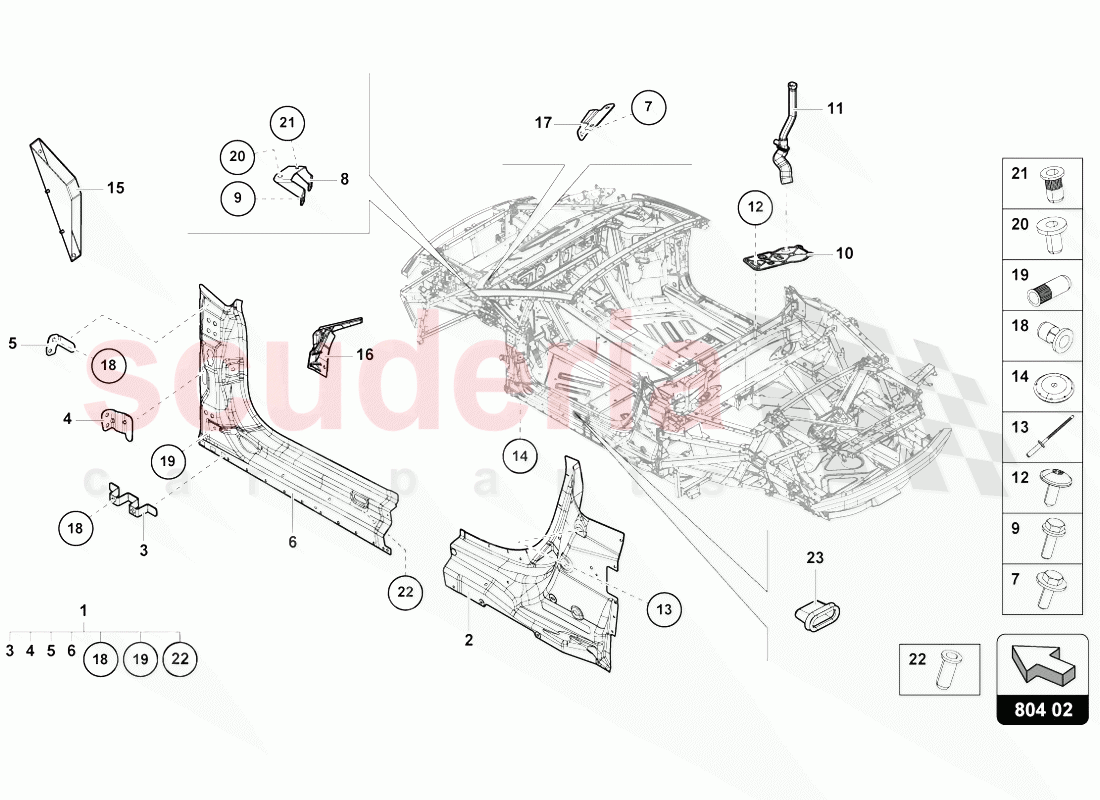

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T7810575B	DOOR FRAME	Enquire	To Order
	4T7810576B	DOOR FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T7810245D	B-PILLAR, OUTER	Enquire	To Order
	4T7810246D	B-PILLAR, OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805363B	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0803641B	BRACKET - FENDER	Enquire	To Order
	4T0803642B	BRACKET - FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0810659B	BRACKET - FENDER	Enquire	To Order
	4T0810660B	BRACKET - FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10009507	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805543B	ANGLE	Enquire	To Order
	4T0805544B	ANGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90533005	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S7803961B	COVER FOR SENDER	Enquire	To Order
	4S7803960B	COVER FOR SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T7825597	WATER DRAIN PIPE	Enquire	To Order
	4T7825598	WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042301	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0843658	POP RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7P0899183	BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805403B	REINFORCEMENT	Enquire	To Order
	4T0805404B	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S7809199B	REINFORCEMENT FOR A-PILLAR	Enquire	To Order
	4S7809200B	REINFORCEMENT FOR A-PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0000302B	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		RIVETTED CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90849202	RIVETTED CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90636502	RIVETTED CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10597701	RIVETTED CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10227902	RIVETTED CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0853593A	SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T7810575B	DOOR FRAME	4T7810575B DOOR FRAME LEFT	-	1	Enquire
1	4T7810576B	DOOR FRAME	4T7810576B DOOR FRAME RIGHT	-	1	Enquire
2	4T7810245D	B-PILLAR, OUTER	4T7810245D B-PILLAR, OUTER LEFT	-	1	Enquire
2	4T7810246D	B-PILLAR, OUTER	4T7810246D B-PILLAR, OUTER RIGHT	-	1	Enquire
3	4T0805363B	BRACKET	4T0805363B BRACKET	-	2	Enquire
4	4T0803641B	BRACKET - FENDER	4T0803641B BRACKET - FENDER LEFT LOWER	-	1	Enquire
4	4T0803642B	BRACKET - FENDER	4T0803642B BRACKET - FENDER RIGHT LOWER	-	1	Enquire
5	4T0810659B	BRACKET - FENDER	4T0810659B BRACKET - FENDER LEFT UPPER	-	1	Enquire
5	4T0810660B	BRACKET - FENDER	4T0810660B BRACKET - FENDER RIGHT UPPER	-	1	Enquire
6	-	ARM	ARM CANNOT BE SOLD SEPARATELY	-	-	Enquire
7	N10009507	HEXAGON HEAD BOLT (COMBI)	N10009507 HEXAGON HEAD BOLT (COMBI) M6X18	-	4	Enquire
8	4T0805543B	ANGLE	4T0805543B ANGLE LEFT	-	1	Enquire
8	4T0805544B	ANGLE	4T0805544B ANGLE RIGHT	-	1	Enquire
9	N90533005	HEXAGON HEAD BOLT (COMBI)	N90533005 HEXAGON HEAD BOLT (COMBI) M6X20	-	4	Enquire
10	4S7803961B	COVER FOR SENDER	4S7803961B COVER FOR SENDER LEFT	-	1	Enquire
10	4S7803960B	COVER FOR SENDER	4S7803960B COVER FOR SENDER RIGHT	-	1	Enquire
11	4T7825597	WATER DRAIN PIPE	4T7825597 WATER DRAIN PIPE LEFT	-	1	Enquire
11	4T7825598	WATER DRAIN PIPE	4T7825598 WATER DRAIN PIPE RIGHT	-	1	Enquire
12	N91042301	OVAL HEXAGON SOCKET HEAD BOLT	N91042301 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	12	Enquire
13	4S0843658	POP RIVET	4S0843658 POP RIVET	-	1	Enquire
14	7P0899183	BUNGS	7P0899183 BUNGS	-	2	Enquire
15	4T0805403B	REINFORCEMENT	4T0805403B REINFORCEMENT CONTACT YOUR AREA MANAGER-LEFT	-	-	Enquire
15	4T0805404B	REINFORCEMENT	4T0805404B REINFORCEMENT CONTACT YOUR AREA MANAGER-RIGHT	-	-	Enquire
16	4S7809199B	REINFORCEMENT FOR A-PILLAR	4S7809199B REINFORCEMENT FOR A-PILLAR CONTACT YOUR AREA MANAGER-LEFT UPPER	-	-	Enquire
16	4S7809200B	REINFORCEMENT FOR A-PILLAR	4S7809200B REINFORCEMENT FOR A-PILLAR CONTACT YOUR AREA MANAGER-RIGHT UPPER	-	-	Enquire
17	4T0000302B	BRACKET	4T0000302B BRACKET	-	1	Enquire
18	-	RIVETTED CAP NUT	RIVETTED CAP NUT INCLUDED IN REF.3 AND IN REF.5-M6/0,5-3	-	-	Enquire
19	N90849202	RIVETTED CAP NUT	N90849202 RIVETTED CAP NUT	-	-	Enquire
20	N90636502	RIVETTED CAP NUT	N90636502 RIVETTED CAP NUT	-	2	Enquire
21	N10597701	RIVETTED CAP NUT	N10597701 RIVETTED CAP NUT M5/0,5-3	-	-	Enquire
22	N10227902	RIVETTED CAP NUT	N10227902 RIVETTED CAP NUT	-	-	Enquire
23	4T0853593A	SEAL	4T0853593A SEAL	-	2	Enquire
