Air Filter Box

Lamborghini Huracan LP580 Coupe

Find Your Part

Lamborghini Huracan LP580 Coupe - Air Filter Box

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

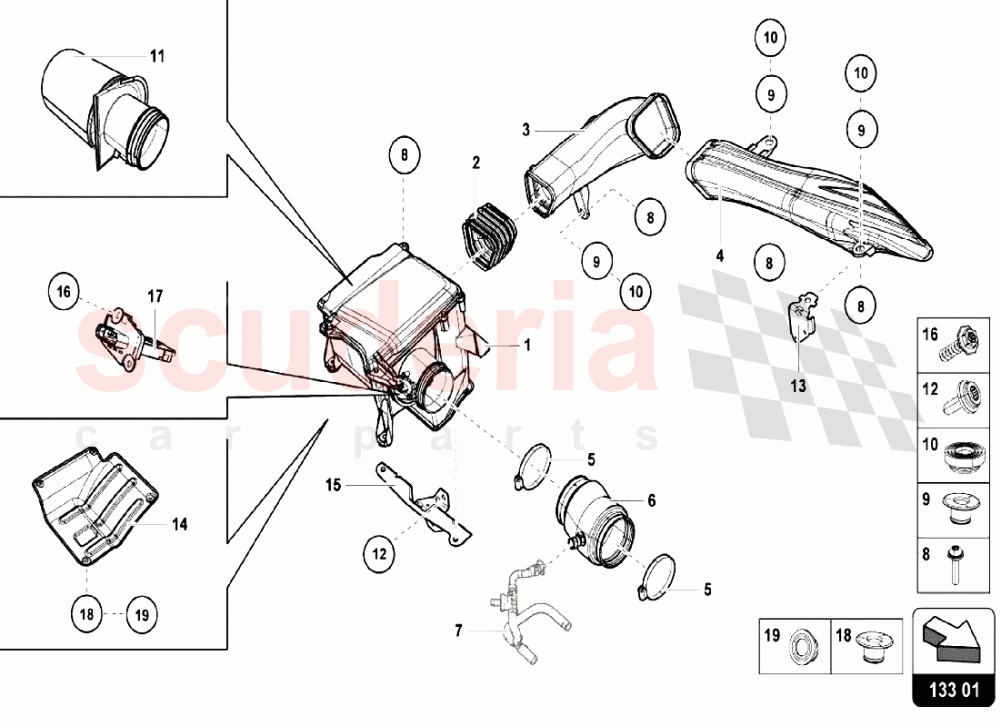

Air Filter Box of Lamborghini Lamborghini Huracan LP580 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4S0133837G
LH AIR FILTER BOX 		- 1 Enquire
001 4S0133838G
RH AIR FILTER BOX 		- 1 Enquire
002 4S0129739
PIPE 		- 2 Enquire
003 4S0129528D
RH REAR INTAKE HOSE 		- 1 Enquire
003 4S0129527D
LH REAR INTAKE HOSE 		- 1 Enquire
004 4S0129510A
RH TRANSITION PIECE FR. 		- 1 Enquire
004 4S0129509A
LH TRANSITION PIECE FR. 		- 1 Enquire
005 N0245085
HOSE CLAMP 		- 4 Enquire
006 420133303F
INTAKE HOSE 		- 1 Enquire
006 420133385J
INTAKE HOSE 		- 1 Enquire
008 N91054201
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING 		- 8 Enquire
009 1K0129734B
BUSH 		- 6 Enquire
010 867129669
GROMMET 		- 6 Enquire
011 420133844E
AIR FILTER 		- 2 Enquire
012 N91128001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 12 Enquire
013 4T8814501C
LH BRACKET 		- 1 Enquire
013 4T8814502C
RH BRACKET 		- 1 Enquire
014 420115339J
RH SHIELD 		- 1 Enquire
014 420115339K
LH SHIELD 		- 1 Enquire
015 4S0813545C
BRACKET 		- 1 Enquire
015 4S0813546C
BRACKET 		- 1 Enquire
016 N91068201
HEXAGON SOCKET FLAT HEAD BOLT 		- 4 Enquire
017 420133471
AIR FLOW METER SENSOR 		- 2 Enquire
