Vacuum System of Lamborghini Lamborghini Huracan LP580 Coupe

View All

Lamborghini Huracan LP580 Coupe - Vacuum System

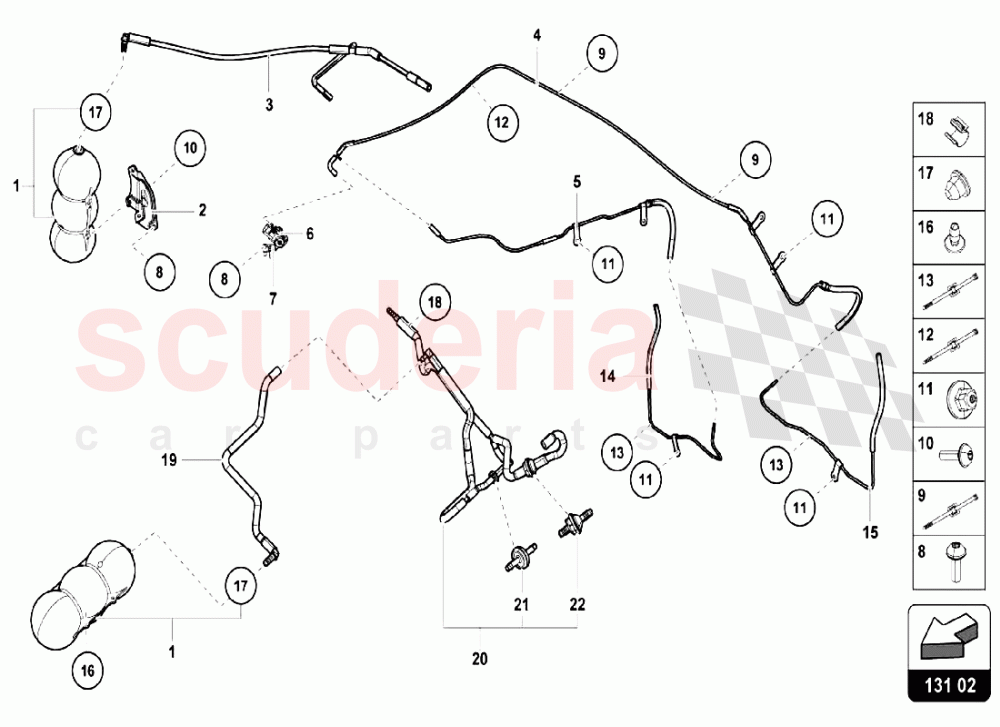

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	420131541	VACUUM RESERVOIR	420131541 VACUUM RESERVOIR	-	2	Enquire
002	4S0809163D	RETAINER FOR VACUUM CONTAINER	4S0809163D RETAINER FOR VACUUM CONTAINER	-	1	Enquire
003	4S0131385D	VACUUM PIPE	4S0131385D VACUUM PIPE	-	1	Enquire
004	4S0131385C	Vacuum Hose	4S0131385C Vacuum Hose	-	1	Enquire
005	4S0131386A	VACUUM HOSE	4S0131386A VACUUM HOSE	-	1	Enquire
006	1K0906283A	SOLENOID VALVE	1K0906283A SOLENOID VALVE	-	1	Enquire
007	4S0864288	Bracket	4S0864288 Bracket	-	1	Enquire
008	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT	-	14	Enquire
009	N10562301	CABLE TIES	N10562301 CABLE TIES	-	2	Enquire
010	N90939303	HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING	N90939303 HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING	-	14	Enquire
011	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT	-	2	Enquire
012	WHT001999	CABLE TIE WITH TERMINAL SOCKET	WHT001999 CABLE TIE WITH TERMINAL SOCKET	-	1	Enquire
013	5M0971838	CABLE TIE WITH TERMINAL SOCKET	5M0971838 CABLE TIE WITH TERMINAL SOCKET	-	2	Enquire
014	4T0131057	Vacuum Hose	4T0131057 Vacuum Hose	-	1	Enquire
015	4T0131058	Vacuum Hose	4T0131058 Vacuum Hose	-	1	Enquire
016	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N90925202 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	-	2	Enquire
017	431820667	GROMMET	431820667 GROMMET	-	2	Enquire
018	7L133847	HOSE BRACKET	7L133847 HOSE BRACKET	-	1	Enquire
019	7L131055N	VACUUM HOSE	7L131055N VACUUM HOSE	-	1	Enquire
020	7L131055R	VACUUM HOSE	7L131055R VACUUM HOSE	-	1	Enquire
021	46905291B	NON-RETURN VALVE	46905291B NON-RETURN VALVE	-	1	Enquire
022	6A133528D	NON-RETURN VALVE	6A133528D NON-RETURN VALVE	-	1	Enquire
