Lamborghini Gallardo Superleggera - Passenger Side Drawer

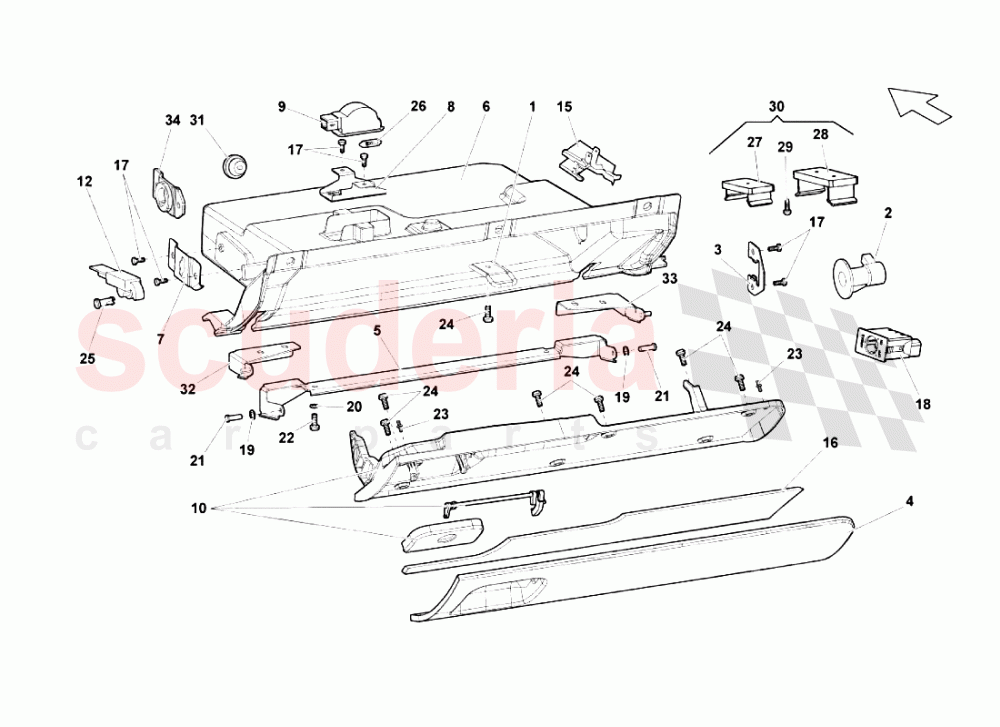

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400857133A	CLOSING BRACKET	400857133A CLOSING BRACKET	-	1	Enquire
002	400919237	SWITCH	400919237 SWITCH	-	1	Enquire
003	400959767	LODGING	400959767 LODGING	-	1	Enquire
004	402857121C	GLOVE BOX COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	402857121C GLOVE BOX COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
005	402857156A	SUPPORT (UNTIL THE VIN 9LA08721)	402857156A SUPPORT (UNTIL THE VIN 9LA08721)	-	1	Enquire
006	402857923A	LOWER RIGHT DASHBOARD ASSEMBLY (UNTIL THE VIN 9LA08721)	402857923A LOWER RIGHT DASHBOARD ASSEMBLY (UNTIL THE VIN 9LA08721)	-	1	Enquire
007	402858693	BRACKET (UNTIL THE VIN 9LA08721)	402858693 BRACKET (UNTIL THE VIN 9LA08721)	-	1	Enquire
008	402947307	BRACKET	402947307 BRACKET	-	1	Enquire
009	4B0947415A	LUGGAGE COMPARTMENT LAMP	4B0947415A LUGGAGE COMPARTMENT LAMP	-	1	Enquire
010	402858413G	GLOVE BOX LID INSIDE (KIT WITH HANDLE) R/H/D	402858413G GLOVE BOX LID INSIDE (KIT WITH HANDLE) R/H/D	-	1	Enquire
010	402858413C	GLOVE BOX LID INSIDE (CARBON INTERIOR)	402858413C GLOVE BOX LID INSIDE (CARBON INTERIOR)	-	1	Enquire
012	4B2880324	REFRAINING ELEMENT	4B2880324 REFRAINING ELEMENT	-	1	Enquire
015	8L0947315	SWITCH	8L0947315 SWITCH	-	1	Enquire
016	400863095	SOUNDPROOFING MATERIAL	400863095 SOUNDPROOFING MATERIAL	-	1	Enquire
017	N90562401	SCREW	N90562401 SCREW	-	6	Enquire
019	N90657502	CLAMPING WASHER	N90657502 CLAMPING WASHER	-	2	Enquire
020	N01152427	WASHER	N01152427 WASHER	-	2	Enquire
021	N10639701	JOURNAL 5X20 (UNTIL THE VIN 9LA08721)	N10639701 JOURNAL 5X20 (UNTIL THE VIN 9LA08721)	-	2	Enquire
022	N10596302	SCREW M5X25.0	N10596302 SCREW M5X25.0	-	2	Enquire
023	N91092001	RUBBER STOP 4.50X2.2X8.60	N91092001 RUBBER STOP 4.50X2.2X8.60	-	2	Enquire
024	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	7	Enquire
025	400857653	CLIP	400857653 CLIP	-	1	Enquire
026	N0177252	BULB	N0177252 BULB	-	1	Enquire
