Dashboard of Lamborghini Lamborghini Gallardo Superleggera

View All

Lamborghini Gallardo Superleggera - Dashboard

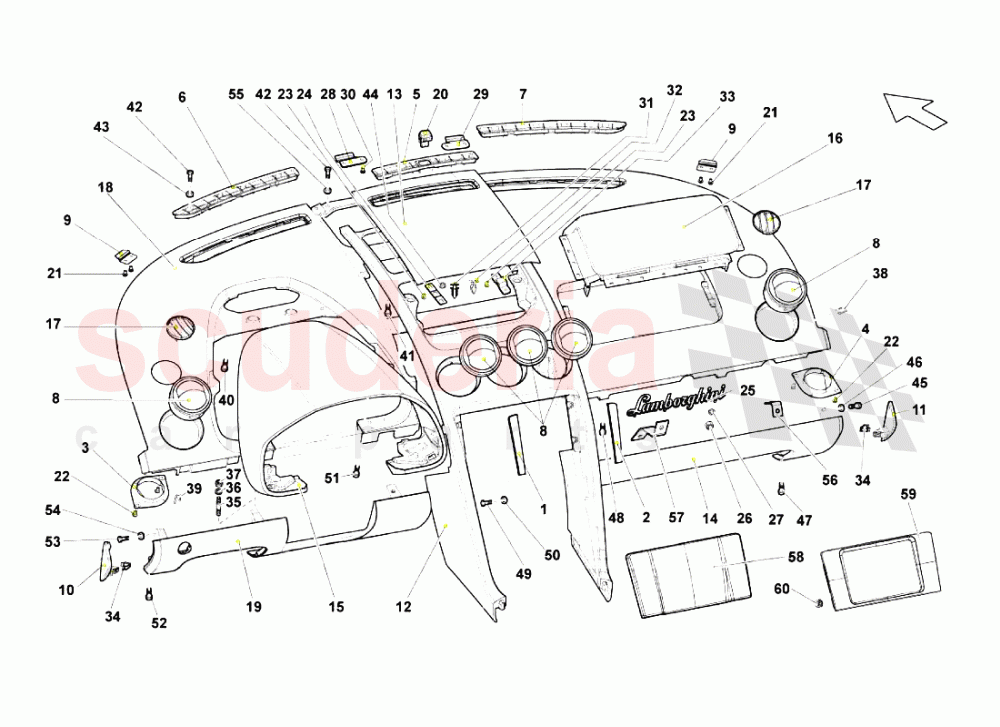

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

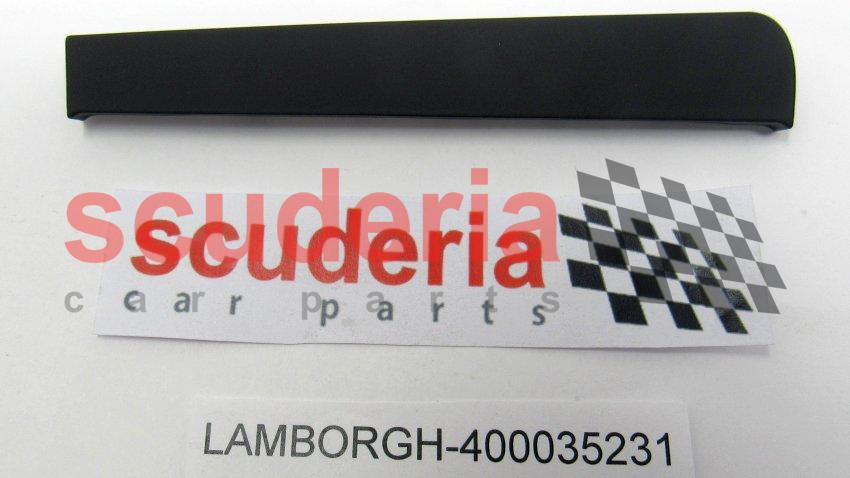

001	400035231	LID	400035231 LID	-	1	Enquire

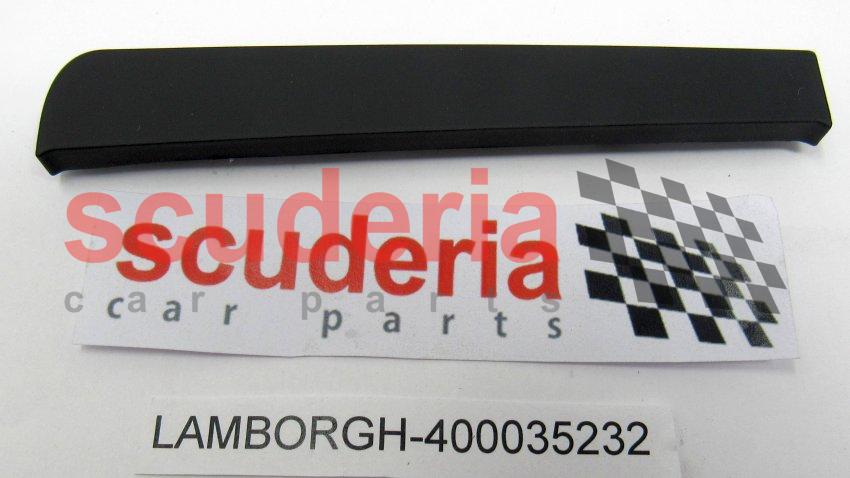

002	400035232	LID	400035232 LID	-	1	Enquire
003	400819475A	FRAME	400819475A FRAME	-	1	Enquire
004	400819476A	FRAME	400819476A FRAME	-	1	Enquire
005	400819635	GRID	400819635 GRID	-	1	Enquire
006	400819793	LEFT AIR INTAKE	400819793 LEFT AIR INTAKE	-	1	Enquire
007	400819794	RIGHT AIR INTAKE	400819794 RIGHT AIR INTAKE	-	1	Enquire

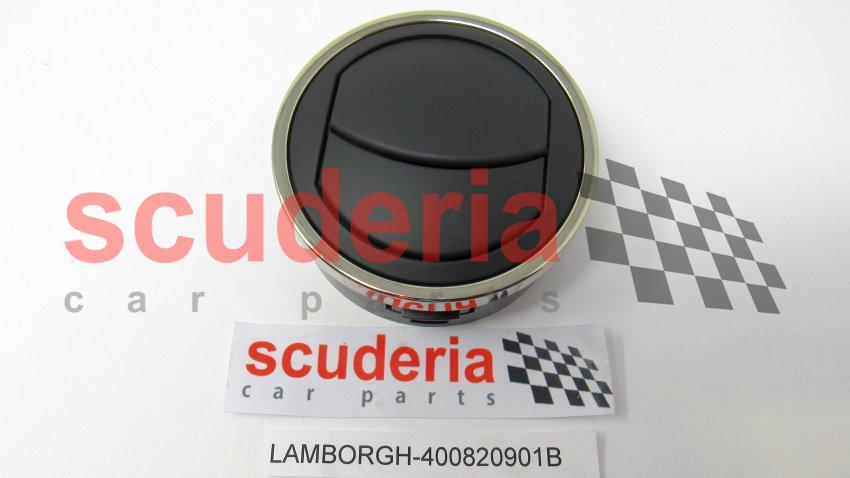

008	400820901B	Air Vent	400820901B Air Vent	-	5	Enquire
009	400857087	CLAMP	400857087 CLAMP	-	2	Enquire
010	403858033	LEFT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	403858033 LEFT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
011	403858034	RIGHT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	403858034 RIGHT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
012	403863241	MIDDLE PART OF DASHBOARD (ALCANTARA UPHOLSTERY - SUPPLY VIN)	403863241 MIDDLE PART OF DASHBOARD (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
013	403863276	COVER (ALCANTARA UPHOLSTERY - SUPPLY VIN)	403863276 COVER (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
014	404858903	LOWER DASHBOARD (ALCANTARA UPHOLSTERY - WITHOUT GLOVE COMPERTMENT - PROVIDE VIN - INCLUDES REF. 56-57)	404858903 LOWER DASHBOARD (ALCANTARA UPHOLSTERY - WITHOUT GLOVE COMPERTMENT - PROVIDE VIN - INCLUDES REF. 56-57)	-	1	Enquire
014	402857503F	LOWER DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - PROVIDE VIN)	402857503F LOWER DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - PROVIDE VIN)	-	1	Enquire
015	404858278	DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	404858278 DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
016	404880201	PASSENGER AIRBAG LID (ALCANTARA UPHOLSTERY - SUPPLY VIN)	404880201 PASSENGER AIRBAG LID (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
017	1J0819705A	AIR VENT	1J0819705A AIR VENT	-	2	Enquire
018	404857041	DASHBOARD ASSEMBLY (WITHOUT LOGO - ALCANTARA UPHOLSTERY - PROVIDE VIN)	404857041 DASHBOARD ASSEMBLY (WITHOUT LOGO - ALCANTARA UPHOLSTERY - PROVIDE VIN)	-	1	Enquire
019	402858794K	DASHBOARD ASSEMBLY (ALCANTARA INTERIOR - WITHOUT GLOVE COMPERTMENT - PROVIDE VIN)	402858794K DASHBOARD ASSEMBLY (ALCANTARA INTERIOR - WITHOUT GLOVE COMPERTMENT - PROVIDE VIN)	-	1	Enquire
019	402858794M	E-GEAR DASHBOARD ASSEMBLY (ALCANTARA INTERIOR - WITHOUT GLOVE COMPERTMENT - PROVIDE VIN)	402858794M E-GEAR DASHBOARD ASSEMBLY (ALCANTARA INTERIOR - WITHOUT GLOVE COMPERTMENT - PROVIDE VIN)	-	1	Enquire
020	4E0907539	SOLAR SENSOR	4E0907539 SOLAR SENSOR	-	1	Enquire
021	N10406602	OVAL HEXAGON SOCKET HEAD BOLT	N10406602 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
022	N90562401	SCREW	N90562401 SCREW	-	4	Enquire
023	N10406602	OVAL HEXAGON SOCKET HEAD BOLT	N10406602 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
025	400853886	LAMBORGHINI EMBLEM	400853886 LAMBORGHINI EMBLEM	-	1	Enquire
026	N0110022	NUT M3	N0110022 NUT M3	-	4	Enquire
027	8410311	WASHER	8410311 WASHER	-	4	Enquire
028	400864287A	LH BRACKET	400864287A LH BRACKET	-	1	Enquire
029	400864288A	RH BRACKET	400864288A RH BRACKET	-	1	Enquire
030	N90562401	SCREW	N90562401 SCREW	-	4	Enquire
032	400868563A	CLIP	400868563A CLIP	-	2	Enquire
033	400857955C	BRACKET	400857955C BRACKET	-	2	Enquire
034	400857117	CLIP	400857117 CLIP	-	2	Enquire
035	WHT003116	STUD BOLT M5X25	WHT003116 STUD BOLT M5X25	-	2	Enquire
036	WHT000778	WASHER	WHT000778 WASHER	-	2	Enquire
037	WHT000760	NUT M5	WHT000760 NUT M5	-	2	Enquire
038	N90327506	SPEED NUT	N90327506 SPEED NUT	-	2	Enquire
039	N90327506	SPEED NUT	N90327506 SPEED NUT	-	2	Enquire
040	N10406602	OVAL HEXAGON SOCKET HEAD BOLT	N10406602 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
041	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	6	Enquire
042	N10544302	SCREW M5X25	N10544302 SCREW M5X25	-	4	Enquire
043	N01154012	WASHER	N01154012 WASHER	-	2	Enquire
044	WHT000778	WASHER	WHT000778 WASHER	-	8	Enquire
045	WHT001194	SCREW	WHT001194 SCREW	-	2	Enquire
046	WHT000778	WASHER	WHT000778 WASHER	-	4	Enquire
047	N91053801	SCREW M6X20	N91053801 SCREW M6X20	-	4	Enquire
047	N91053801	SCREW M6X20	N91053801 SCREW M6X20	-	2	Enquire
048	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
048	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
049	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
050	N01152322	WASHER	N01152322 WASHER	-	8	Enquire
051	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	6	Enquire
052	N91053801	SCREW M6X20	N91053801 SCREW M6X20	-	4	Enquire
053	WHT001194	SCREW	WHT001194 SCREW	-	2	Enquire
054	WHT000778	WASHER	WHT000778 WASHER	-	4	Enquire
055	N0116946	WASHER	N0116946 WASHER	-	2	Enquire
058	403035231	COVER	403035231 COVER	-	1	Enquire
