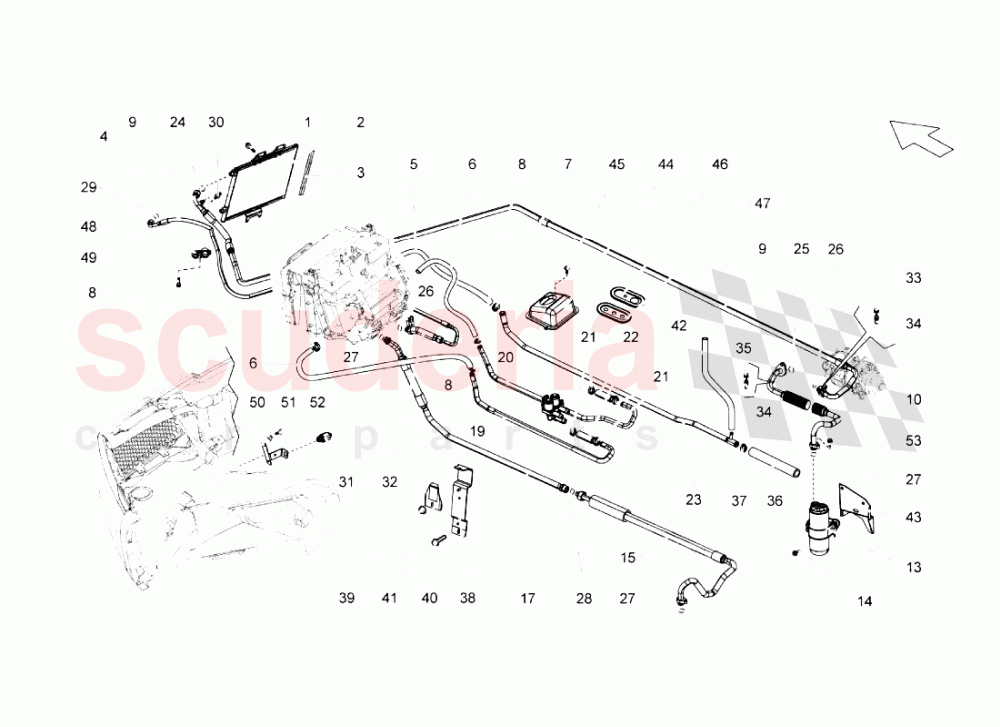

Lamborghini Gallardo Superleggera - Air Conditioning System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	6	Enquire
002	400260401B	A/C CONDENSER	400260401B A/C CONDENSER	-	1	Enquire
003	400820261	GASKET	400820261 GASKET	-	2	Enquire
004	400260709	PIPE	400260709 PIPE	-	1	Enquire
005	400819371	SLEEVE	400819371 SLEEVE	-	1	Enquire
006	400819370	SLEEVE	400819370 SLEEVE	-	2	Enquire
007	N10166201	CLAMP	N10166201 CLAMP	-	2	Enquire
008	N10255601	CLAMP	N10255601 CLAMP	-	4	Enquire
009	400260701B	PIPE	400260701B PIPE	-	1	Enquire
010	400260741A	PIPE	400260741A PIPE	-	1	Enquire
013	400820194	DEHYDRATOR FILTER (INCLUDES REF. 14 )	400820194 DEHYDRATOR FILTER (INCLUDES REF. 14 )	-	1	Enquire
014	N0903411	SCREW (M6X62.00)	N0903411 SCREW (M6X62.00)	-	3	Enquire
015	400260740B	PIPE	400260740B PIPE	-	1	Enquire
017	400260740	PIPE	400260740 PIPE	-	1	Enquire
019	400819270	LH PIPE	400819270 LH PIPE	-	1	Enquire
020	400819269	RH PIPE	400819269 RH PIPE	-	1	Enquire
021	N0245107	CLAMP	N0245107 CLAMP	-	4	Enquire
022	400819372	SLEEVE	400819372 SLEEVE	-	2	Enquire
023	400820665	PIPE	400820665 PIPE	-	1	Enquire
024	8A0260749AJ	O-RING	8A0260749AJ O-RING	-	1	Enquire
025	8E0260749C	SEAL RING	8E0260749C SEAL RING	-	1	Enquire
026	4E0260749A	SEAL RING	4E0260749A SEAL RING	-	2	Enquire
027	4E0260749C	SEAL RING	4E0260749C SEAL RING	-	3	Enquire
028	8A0260749AH	O-RING	8A0260749AH O-RING	-	1	Enquire
029	8A0260749AK	O-RING	8A0260749AK O-RING	-	1	Enquire
030	3R0959126	PRESSURE SENSOR	3R0959126 PRESSURE SENSOR	-	1	Enquire
031	8Z0820535	EXTERNAL TEMPERATURE SENSOR	8Z0820535 EXTERNAL TEMPERATURE SENSOR	-	1	Enquire
033	400820853A	PLUG	400820853A PLUG	-	1	Enquire
034	400820855	VALVE	400820855 VALVE	-	2	Enquire
035	400820853	PLUG	400820853 PLUG	-	1	Enquire
036	400819268A	PIPE	400819268A PIPE	-	1	Enquire
037	N0245203	CLAMP	N0245203 CLAMP	-	2	Enquire
038	400121079A	BRACKET	400121079A BRACKET	-	2	Enquire
039	N90367502	NUT	N90367502 NUT	-	4	Enquire
040	N90533002	SCREW	N90533002 SCREW	-	4	Enquire
041	400121068	BRACKET	400121068 BRACKET	-	2	Enquire
042	408819377A	PIPE	408819377A PIPE	-	1	Enquire
043	400260759F	BRACKET	400260759F BRACKET	-	1	Enquire
044	400820955A	COVER	400820955A COVER	-	1	Enquire
045	WHT001190	ROUND HD. SCREW	WHT001190 ROUND HD. SCREW	-	2	Enquire
046	400820099A	GASKET	400820099A GASKET	-	1	Enquire
047	400819028A	GASKET	400819028A GASKET	-	1	Enquire
048	8E0260759AP	BRACKET FOR REFRIGERANT HOSE	8E0260759AP BRACKET FOR REFRIGERANT HOSE	-	1	Enquire
049	N10470703	ROUND HD. SCREW	N10470703 ROUND HD. SCREW	-	1	Enquire
050	400820536A	BRACKET	400820536A BRACKET	-	1	Enquire
051	N0454281	CLIP	N0454281 CLIP	-	2	Enquire
052	N10405502	SCREW	N10405502 SCREW	-	2	Enquire
053	N0903786	SCREW M8X25	N0903786 SCREW M8X25	-	4	Enquire
