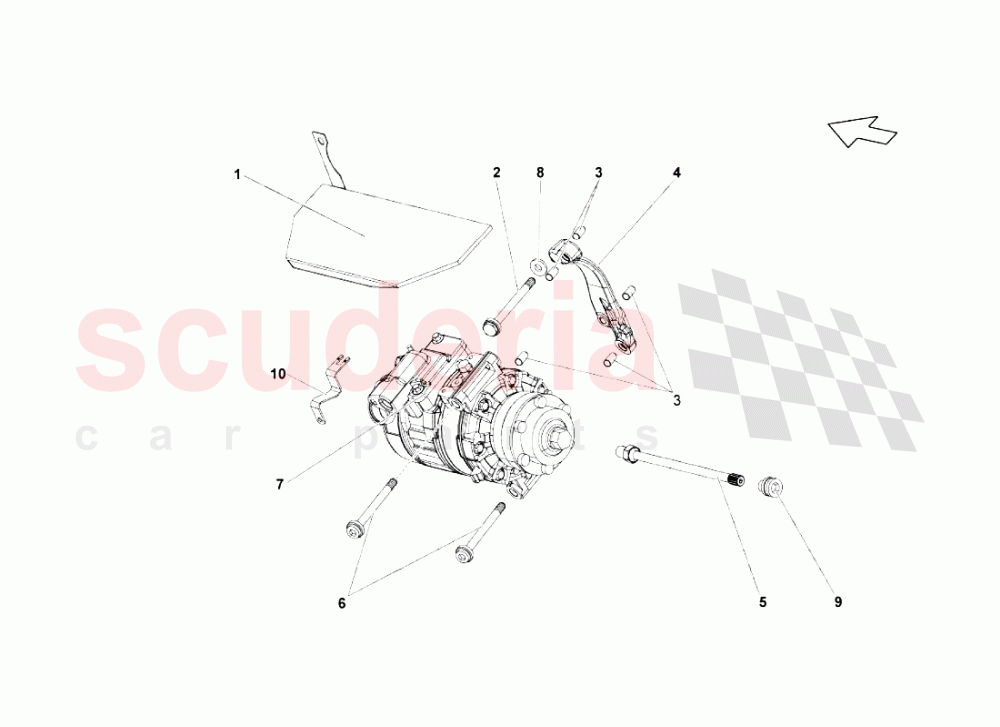

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L145787	HEAT SHIELD	7L145787 HEAT SHIELD	$311.84	1
002	N10585002	SCREW M8X110	N10585002 SCREW M8X110	$6.06	1
003	3L260817	CENTRE SLEEVE	3L260817 CENTRE SLEEVE	$2.23 MSRP: ~~7.10~~ (68.6% off)	4
004	7L260885H	SUPPORT	7L260885H SUPPORT	$366.93	1
005	7L260095B	PROPELLER SHAFT	7L260095B PROPELLER SHAFT	$5,571.22	1
006	N10458902	SCREW M8X90	N10458902 SCREW M8X90	$3.92	2
007	4E0260805AS	Compressor	4E0260805AS Compressor	$1,874.20	1
008	N01152527	WASHER	N01152527 WASHER	$0.40 MSRP: ~~7.33~~ (94.5% off)	1
009	79260753B	GROMMET	79260753B GROMMET	$14.06	1
010	400145145	SUPPORT	400145145 SUPPORT	$13.36	1
