Left Head Timing System of Lamborghini Lamborghini Gallardo Superleggera

View All

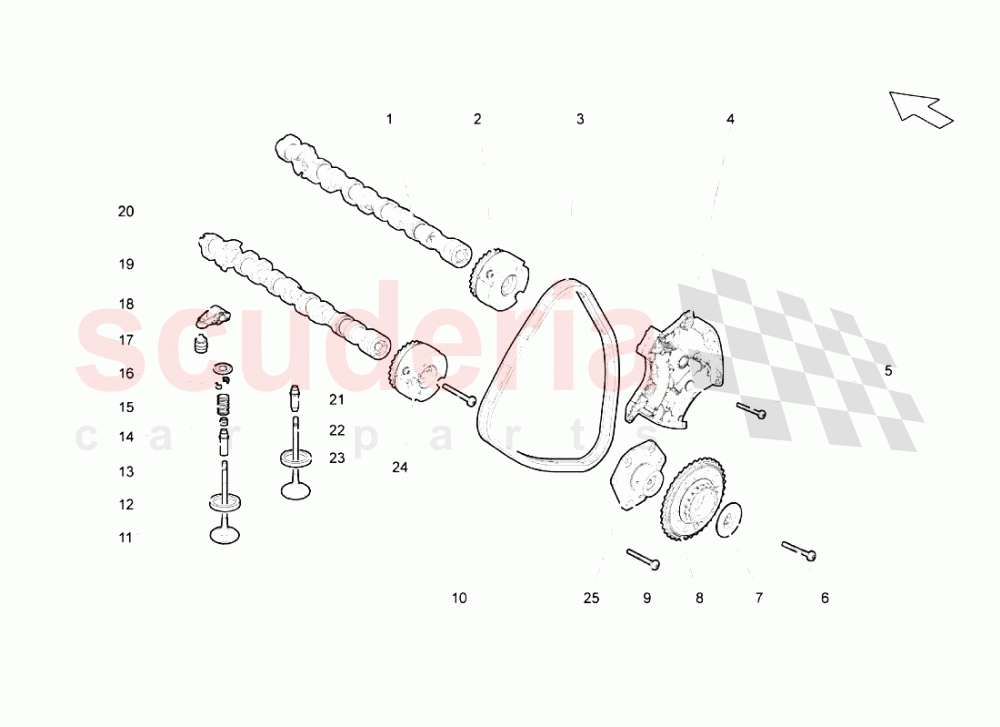

Lamborghini Gallardo Superleggera - Left Head Timing System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L109101S	INTAKE CAMSHAFT	7L109101S INTAKE CAMSHAFT	$551.09	1
002	7L109083A	PHASE TRANSFORMER	7L109083A PHASE TRANSFORMER	$362.89	1
003	79109229L	Chain IN STOCK	79109229L Chain IN STOCK	$110.76	1
004	6E109217E	CHAIN TIGHTENER	6E109217E CHAIN TIGHTENER	$2,956.98	1
005	N10124308	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124308 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.96 MSRP: ~~7.26~~ (73% off)	6
006	N90941703	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 45 IN STOCK	N90941703 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 45 IN STOCK	$4.10 MSRP: ~~7.03~~ (41.7% off)	1
007	79109435G	WASHER	79109435G WASHER	$22.05	1
008	79109569K	GEAR	79109569K GEAR	$332.67	1
009	N10505404	SCREW M6X20 IN STOCK	N10505404 SCREW M6X20 IN STOCK	$0.82	3
010	N91042802	FLAT HEAD MULTI-POINT SOCKET BOLT IN STOCK	N91042802 FLAT HEAD MULTI-POINT SOCKET BOLT IN STOCK	$6.31	2
011	6D103441L	EXHAUST VALVE SEAT	6D103441L EXHAUST VALVE SEAT	$8.66	10
012	6D109611H	EXHAUST VALVE	6D109611H EXHAUST VALVE	$1,020.17	10
013	6D103415F	EXHAUST GUIDE	6D103415F EXHAUST GUIDE	$88.18	10
014	57109675	VALVE STEM SEAL IN STOCK	57109675 VALVE STEM SEAL IN STOCK	$30.13	20
015	6E109623	SPRING	6E109623 SPRING	$47.84	10
016	36109651	COTTER, SPLIT	36109651 COTTER, SPLIT	$2.78	40
017	6E109641A	SPRING DISC	6E109641A SPRING DISC	$18.57	10
018	57109521	HYDRAULIC ELEMENT IN STOCK	57109521 HYDRAULIC ELEMENT IN STOCK	$29.39	10
019	6D109417F	LEVER	6D109417F LEVER	$90.87	10
020	7L109102Q	EXHAUST CAMSHAFT	7L109102Q EXHAUST CAMSHAFT	$469.08	1
021	7L103415	INTAKE GUIDE	7L103415 INTAKE GUIDE	$88.18	10
022	79109601B	INTAKE VALVE -	79109601B INTAKE VALVE -	$52.74	10
023	6D103431L	INTAKE VALVE SEAT	6D103431L INTAKE VALVE SEAT	$6.72	10
024	7L109084C	PHASE TRANSFORMER	7L109084C PHASE TRANSFORMER	$357.54	1
025	79109511G	LEFT SUPPORT	79109511G LEFT SUPPORT	$516.15	1
