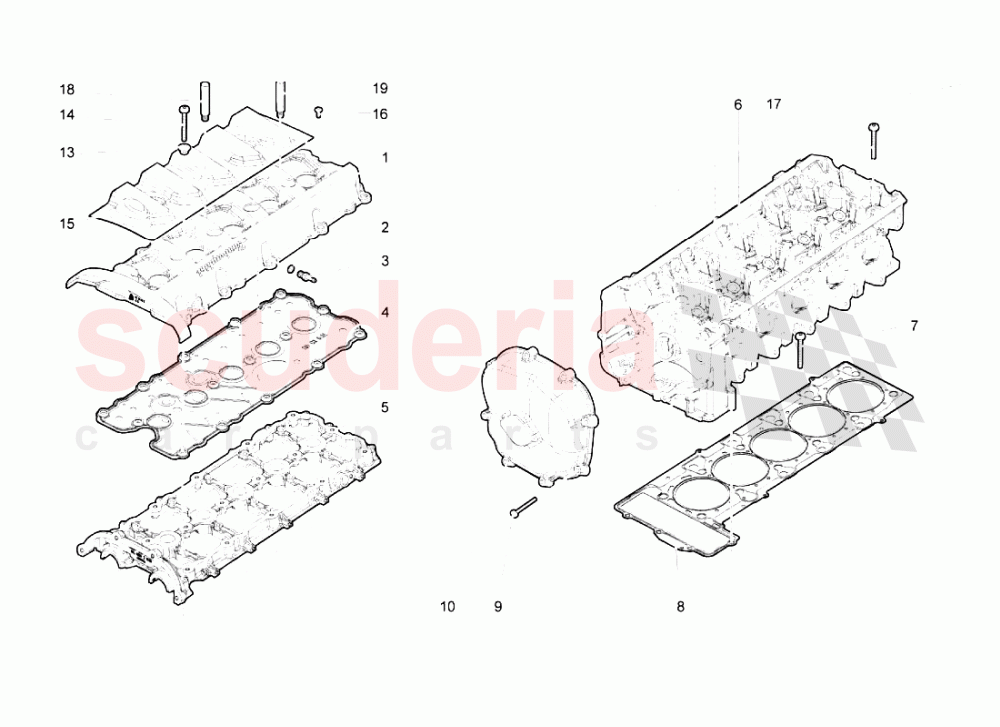

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L103475F	COVER	7L103475F COVER	$959.67	1
002	N0138485	SEAL RING	N0138485 SEAL RING	$0.92 MSRP: ~~7.29~~ (87.4% off)	1
003	7L103606A	CONNECTOR	7L103606A CONNECTOR	$46.10	1
004	7L103483G	GASKET	7L103483G GASKET	$2,380.94	1
006	7L103063AB	ASSEMBLEY 40457 CYLINDER HEAD	7L103063AB ASSEMBLEY 40457 CYLINDER HEAD	$7,073.84	1
007	N10470705	ROUND HD. SCREW	N10470705 ROUND HD. SCREW	$2.08	1
008	7L103383H	CYLINDER HEAD GASKET LH	7L103383H CYLINDER HEAD GASKET LH	$186.73	1
009	N10156206	OVAL HEXAGON SOCKET HEAD BOLT	N10156206 OVAL HEXAGON SOCKET HEAD BOLT	$1.63	8
010	6E109285D	COVER	6E109285D COVER	$65.00	1
013	7L103195A	BUSHING	7L103195A BUSHING	$775.54	16
014	N90917201	SCREW	N90917201 SCREW	$0.98 MSRP: ~~7.27~~ (86.5% off)	14
015	7L103908	COVER	7L103908 COVER	$516.15	1
016	N10335202	OVAL HEXAGON SOCKET HEAD BOLT	N10335202 OVAL HEXAGON SOCKET HEAD BOLT	$1.04 MSRP: ~~7.29~~ (85.7% off)	2
017	WHT000374	SCREW	WHT000374 SCREW	$65.37	12
018	7L103728A	STUD - 38 mm	7L103728A STUD - 38 mm	$20.71	1
019	7L103728	STUD - 32 mm	7L103728 STUD - 32 mm	$79.96	1
