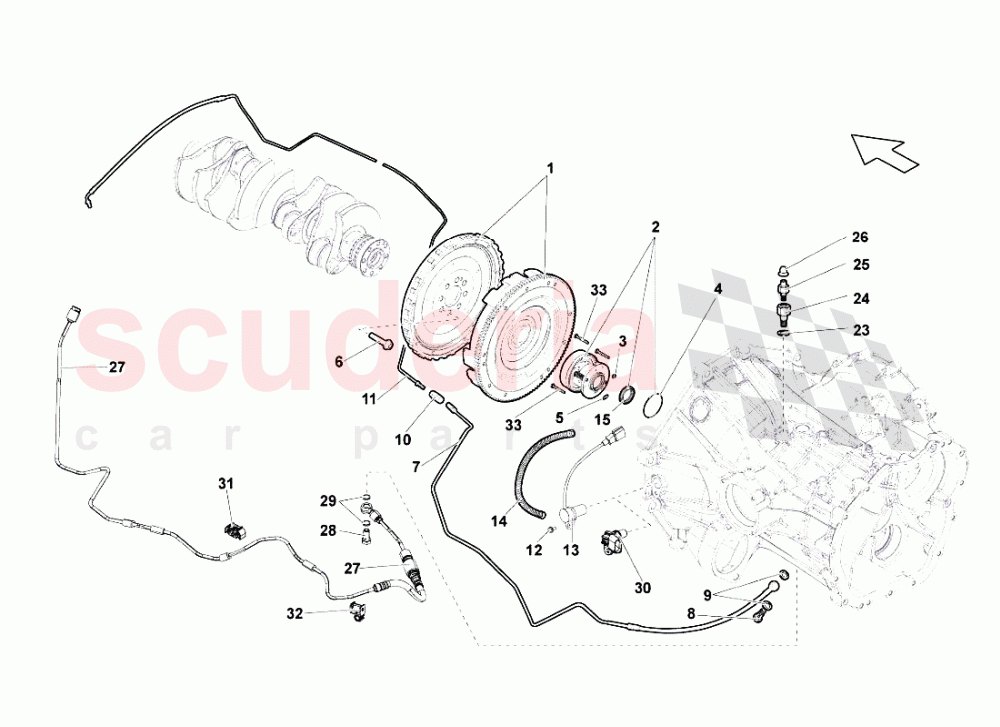

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L105269G	Clutch Flywheel (Manual Gearbox)	7L105269G Clutch Flywheel (Manual Gearbox)	$4,993.26	1
002	86141671A	THRUST BEARING	86141671A THRUST BEARING	$5,927.40	1
003	N90039604	O-RING 9.25 X 1.78	N90039604 O-RING 9.25 X 1.78	$7.99	1
004	N91020601	O-RING	N91020601 O-RING	$13.68	1
005	N90111301	O-RING	N90111301 O-RING	$0.30 MSRP: ~~2.50~~ (88% off)	1
006	WHT000938	Screw M10 X 1 X 19 X 11	WHT000938 Screw M10 X 1 X 19 X 11	$14.04	1
007	400721462D	PIPE	400721462D PIPE	$659.95	1
008	N0210717	SCREW WITH HOLE	N0210717 SCREW WITH HOLE	$3.64 MSRP: ~~6.55~~ (44.4% off)	1
009	N0138131	WASHER	N0138131 WASHER	$0.55 MSRP: ~~7.34~~ (92.5% off)	1
010	400721419	CONNECTOR	400721419 CONNECTOR	$243.94	1
011	400721461B	PIPE	400721461B PIPE	$1,026.88	1
012	N10451405	OVAL HEXAGON SOCKET HEAD BOLT	N10451405 OVAL HEXAGON SOCKET HEAD BOLT	$1.43 MSRP: ~~7.22~~ (80.2% off)	1
013	79905381	TRANSDUCER	79905381 TRANSDUCER	$445.65	1
014	400971788	PIPE	400971788 PIPE	$0.91	1
015	86141243A	Oil Seal	86141243A Oil Seal	$33.06	1
023	N91014802	SEAL RING	N91014802 SEAL RING	$4.64	1
024	86301065	CONNECTOR	86301065 CONNECTOR	$62.24	1
025	86301138	BLEEDER SCREW	86301138 BLEEDER SCREW	$24.95	1
026	86301147	DUST CAP	86301147 DUST CAP	$0.91 MSRP: ~~7.25~~ (87.4% off)	1
