E-Gear Valves Group

Lamborghini Gallardo Spyder

Find Your Part

Lamborghini Gallardo Spyder - E-gear Valves Group

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

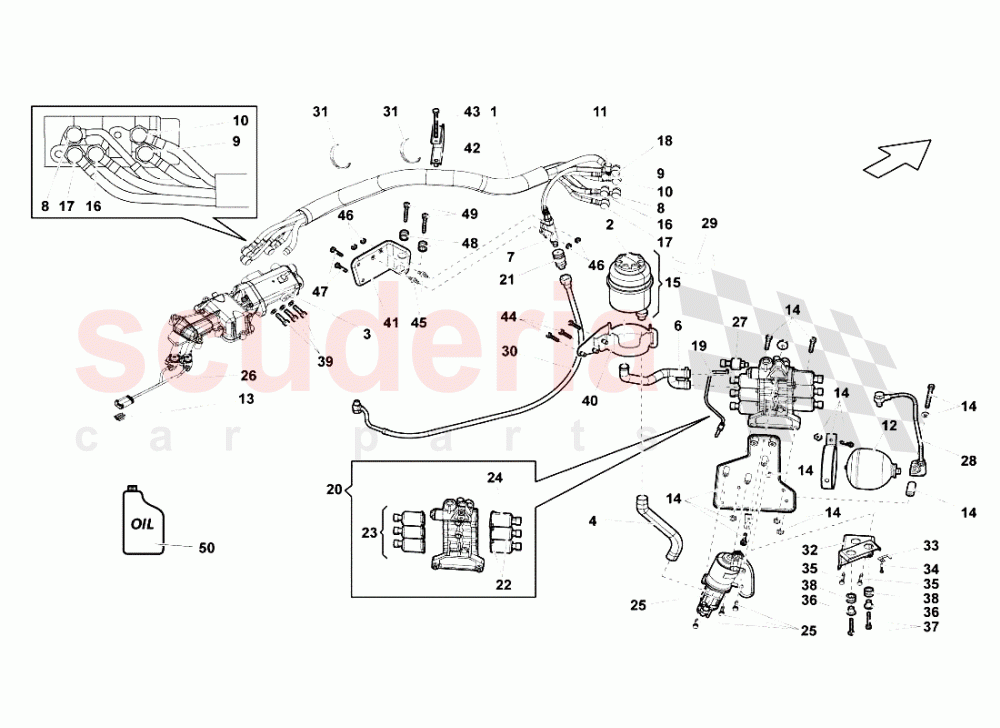

E-gear Valves Group of Lamborghini Lamborghini Gallardo Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 86317831B
SHEATH 		- 1 Enquire
003 86325059
ACTUATOR GROUP 		- 1 Enquire
004 86325083B
TUBE KIT 		- 1 Enquire
006 86325087B
THREE-WAY PIPE KIT 		- 1 Enquire
007 86325089
KIT QUICK DISCONNECT (UNTIL THE VIN 6LA04009) 		- 1 Enquire
007 86325089A
KIT QUICK DISCONNECT (FROM VIN 6LA04010) 		- 1 Enquire
008 86325095B
TUBE EV2 		- 1 Enquire
009 86325097B
TUBE EV3 		- 1 Enquire
010 86325107B
TUBE EV1 		- 1 Enquire
011 86325111A
TUBE I RECIRCULATE KIT 		- 1 Enquire
012 86325585
Storage Battery 		- 1 Enquire
013 86325147
CLIP 		- 1 Enquire
014 86325153A
BRACKETS 		- 1 Enquire
015 86325161
SELESPEED OIL TANK 		- 1 Enquire
016 86325163B
TUBE EV4 		- 1 Enquire
017 86325165B
TUBE EV5 		- 1 Enquire
018 86325171B
TUBE EVF 		- 1 Enquire
019 86325179B
HIGH PRESSURE TUBE 		- 1 Enquire
020 86325181B
VALVES GROUP 		- 1 Enquire
021 86325273
FEMALE CONNECTION (UNTIL THE VIN 6LA04009) 		- 1 Enquire
021 86325273A
CONNECTION (FROM VIN 6LA04010) 		- 1 Enquire
022 86325293
ACTUATOR + PACKING + LIVES + VALVE PPV02 		- 1 Enquire
023 86325295
ACTUATOR + PACKING + LIVES + VALVE QPV02 		- 1 Enquire
024 86325297
ACTUATOR + PACKING + LIVES + VALVE 		- 1 Enquire

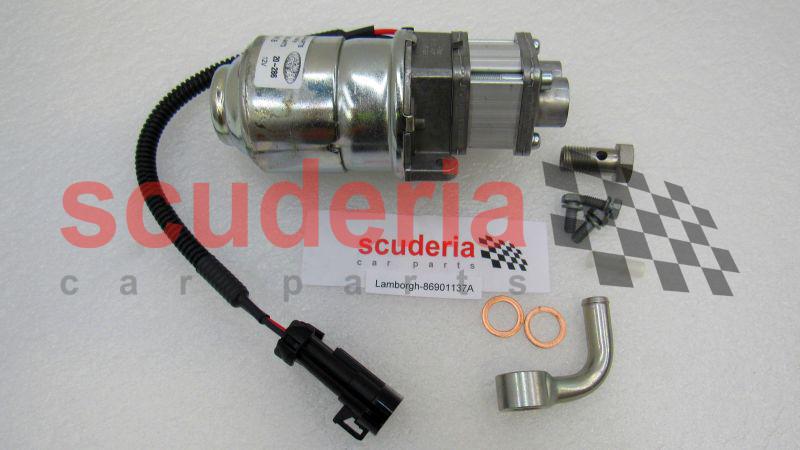

025 86901137A
ELECTRIC PUMP KIT 		- 1 Enquire
026 86907811
POSITION SENSORS KIT 		- 1 Enquire
027 86919331
PRESSURE SENSOR 		- 1 Enquire
028 86325111B
TUBE I RECIRCULATE KIT 		- 1 Enquire
029 86010530
NAMEPLATE 		- 1 Enquire
030 7L115673A
TUBE 		- 1 Enquire
031 400971850B
CLAMP 		- 2 Enquire

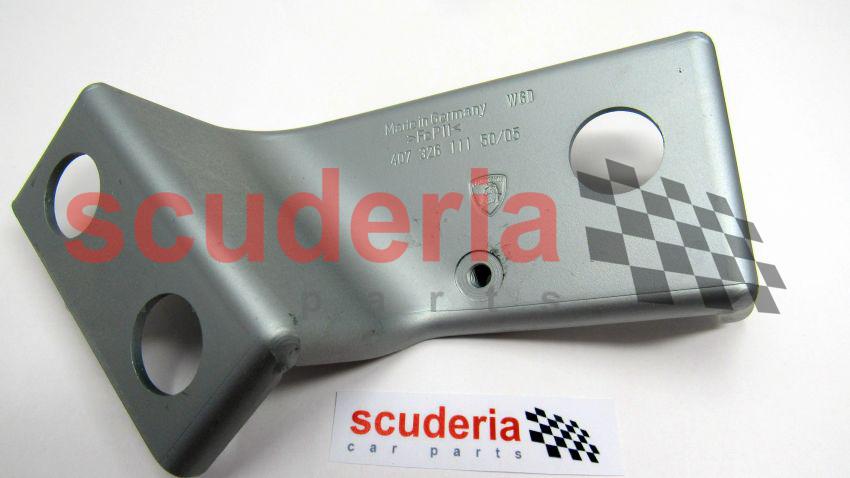

032 407326111
BRACKET 		- 1 Enquire
033 400326138A
SUPPORT 		- 1 Enquire
034 N90444602
SCREW 		- 1 Enquire
035 N0902423
SCREW 		- 2 Enquire
036 407311626
BUSHING 		- 2 Enquire
037 N90632103
SCREW 		- 2 Enquire
038 357711798
RUBBER SEAL 		- 2 Enquire
039 86398199A
BLEEDER 		- 3 Enquire
040 407326119A
CLAMP 		- 1 Enquire
041 407326125A
BRACKET 		- 1 Enquire
042 407326135
BRACKET 		- 1 Enquire
043 N90493101
SCREW 		- 1 Enquire
044 N10653301
HEX COLLARED BOLT 		- 3 Enquire
045 400972081B
FLEXIBLE SUPPORT 		- 2 Enquire
046 N01508213
HEXAGON COLLAR NUT 		- 4 Enquire
047 N90847903
Screw M6X15 		- 2 Enquire
049 N90632103
SCREW 		- 2 Enquire
050 900000170
OIL (1.0Ltr) 		- 1 Enquire
