Water Cooling System 4 of Lamborghini Lamborghini Gallardo Spyder

View All

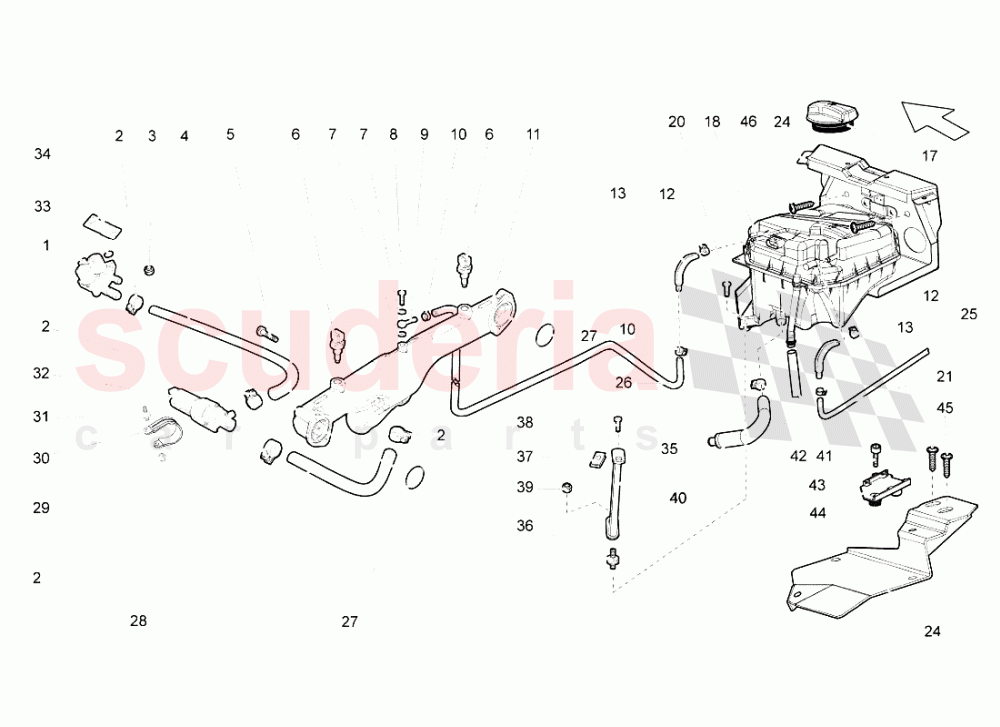

Lamborghini Gallardo Spyder - Water Cooling System 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

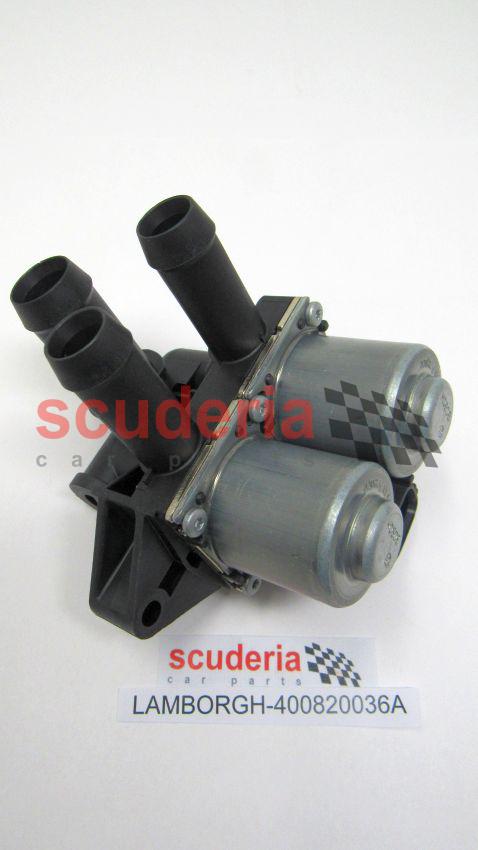

001	400820036A	Heater Control Valve	400820036A Heater Control Valve	-	1	Enquire
002	N0245203	CLAMP	N0245203 CLAMP	-	6	Enquire
003	N90367502	NUT	N90367502 NUT	-	1	Enquire
004	400819362	SLEEVE	400819362 SLEEVE	-	1	Enquire
005	N10117405	SCREW	N10117405 SCREW	-	2	Enquire
006	7L919501A	Water Temperature Sensor	7L919501A Water Temperature Sensor	-	2	Enquire
007	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	-	4	Enquire
008	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	-	2	Enquire
009	N91104301	BANJO FITTING	N91104301 BANJO FITTING	-	2	Enquire
010	400251189E	CLAMP	400251189E CLAMP	-	1	Enquire
011	7L121045	CONNECTOR	7L121045 CONNECTOR	-	1	Enquire
012	400251189E	CLAMP	400251189E CLAMP	-	1	Enquire
013	7L121434A	CONNECTOR	7L121434A CONNECTOR	-	1	Enquire
017	1J0121321B	PLUG	1J0121321B PLUG	-	1	Enquire
018	420121403	WATER TANK	420121403 WATER TANK	-	1	Enquire
020	N10158605	BOLT,HEX.HD.WITH SHOUL.(COMBI)	N10158605 BOLT,HEX.HD.WITH SHOUL.(COMBI)	-	1	Enquire
021	7L121103B	HOSE	7L121103B HOSE	-	1	Enquire
024	407133599B	BRACKET	407133599B BRACKET	-	1	Enquire
025	400251189E	CLAMP	400251189E CLAMP	-	1	Enquire
025	N91130601	CLAMP	N91130601 CLAMP	-	1	Enquire
026	7L121109B	HOSE	7L121109B HOSE	-	1	Enquire
027	N10129201	O-RING	N10129201 O-RING	-	1	Enquire
028	400819159A	JUNCTION	400819159A JUNCTION	-	1	Enquire
029	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	1	Enquire
030	8834003	CLAMP	8834003 CLAMP	-	1	Enquire
031	400972081C	FLEXIBLE SUPPORT	400972081C FLEXIBLE SUPPORT	-	1	Enquire
032	78965561	WATER PUMP	78965561 WATER PUMP	-	1	Enquire
033	400864179	RUBBER WASHER	400864179 RUBBER WASHER	-	2	Enquire
034	400820761	BRACKET	400820761 BRACKET	-	1	Enquire
035	407133375	TIE ROD	407133375 TIE ROD	-	1	Enquire
036	400972081B	FLEXIBLE SUPPORT	400972081B FLEXIBLE SUPPORT	-	1	Enquire
037	N90327506	SPEED NUT	N90327506 SPEED NUT	-	1	Enquire
038	N10227805	SCREW M6X20.0	N10227805 SCREW M6X20.0	-	1	Enquire
039	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	1	Enquire
040	7L121167	HOSE	7L121167 HOSE	-	1	Enquire
041	7L121428	HOSE	7L121428 HOSE	-	1	Enquire
042	N10255601	CLAMP	N10255601 CLAMP	-	1	Enquire
043	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	N10124308 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
044	7L0121093A	BRACKET	7L0121093A BRACKET	-	1	Enquire
045	N90365912	OVAL HEXAGON SOCKET HEAD BOLT	N90365912 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
046	WHT002225A	HEXAGON SOCKET HEAD BOLT	WHT002225A HEXAGON SOCKET HEAD BOLT	-	2	Enquire
