Water Cooling System 3 of Lamborghini Lamborghini Gallardo Spyder

View All

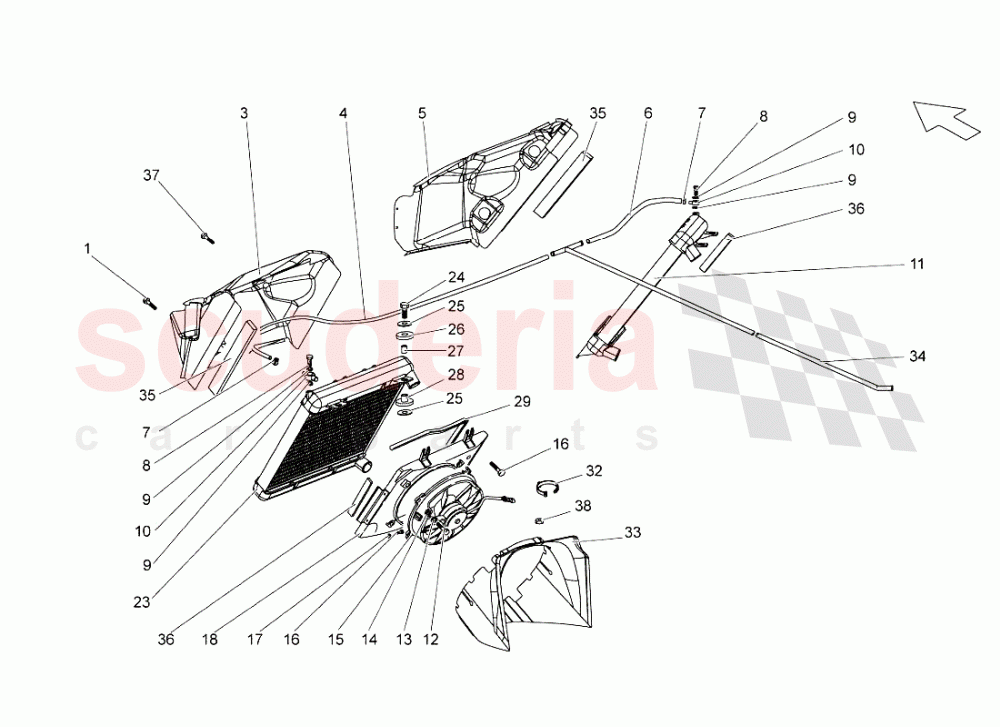

Lamborghini Gallardo Spyder - Water Cooling System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10082911	SCREW M6X16	N10082911 SCREW M6X16	$0.68	4
003	400807157B	LH CONVEYOR	400807157B LH CONVEYOR	$900.55	1
004	7L121101	HOSE	7L121101 HOSE	$14.04	1
005	400807158B	RH CONVEYOR	400807158B RH CONVEYOR	$2,043.01	1
006	7L121102	HOSE	7L121102 HOSE	$35.08	1
007	N91130601	CLAMP	N91130601 CLAMP	$36.64 MSRP: ~~59.60~~ (38.5% off)	3
008	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$24.66	2
009	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	$3.27 MSRP: ~~7.33~~ (55.4% off)	4
010	N91104301	BANJO FITTING	N91104301 BANJO FITTING	$36.43	2
011	400121252A	RH WATER RADIATOR	400121252A RH WATER RADIATOR	$2,043.01	1
012	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	N10430103 HEXAGON SOCKET FLAT HEAD BOLT	$0.80 MSRP: ~~7.30~~ (89% off)	8
013	WHT000769A	WASHER	WHT000769A WASHER	$0.89 MSRP: ~~7.26~~ (87.7% off)	8
014	WHT000778	WASHER	WHT000778 WASHER	$0.64	8
015	7L959465D	ELECTRIC FAN	7L959465D ELECTRIC FAN	$545.62	2
016	N01021224	SCREW M6X12	N01021224 SCREW M6X12	$0.34 MSRP: ~~7.35~~ (95.4% off)	8
016	N10082911	SCREW M6X16	N10082911 SCREW M6X16	$0.68	6
017	WHT002961	WASHER	WHT002961 WASHER	$0.42	8
018	400122194	RH SUPPORT	400122194 RH SUPPORT	$956.77	1
018	400122193	LH SUPPORT	400122193 LH SUPPORT	$707.00	1
023	400121253A	LH WATER RADIATOR	400121253A LH WATER RADIATOR	$2,043.01	1
024	N10344302	HEXAGON HEAD BOLT (COMBI)	N10344302 HEXAGON HEAD BOLT (COMBI)	$4.98	8
025	WHT001942	WASHER	WHT001942 WASHER	$3.30	16
026	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	$6.27	8
027	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	$10.37	8
028	400121268	RUBBER BUSH	400121268 RUBBER BUSH	$11.56	8
029	400121539	GASKET	400121539 GASKET	$53.29	2
032	N90937701	CABLE TIES	N90937701 CABLE TIES	$1.55 MSRP: ~~2.00~~ (22.5% off)	4
033	400807027	LH REAR DIFFUSING AIR	400807027 LH REAR DIFFUSING AIR	$1,138.43	1
033	400807028	RH REAR DIFFUSING AIR	400807028 RH REAR DIFFUSING AIR	$1,138.43	1
034	7L121520	PIPE	7L121520 PIPE	$666.67	1
035	400121539E	GASKET	400121539E GASKET	$22.58	4
036	400121539D	GASKET	400121539D GASKET	$9.21	6
037	N10207002	SCREW M6X15.00	N10207002 SCREW M6X15.00	$2.08	6
038	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	8
