Air Filter Box

Lamborghini Gallardo LP570 4 SL

Find Your Part

Lamborghini Gallardo LP570 4 SL - Air Filter Box

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

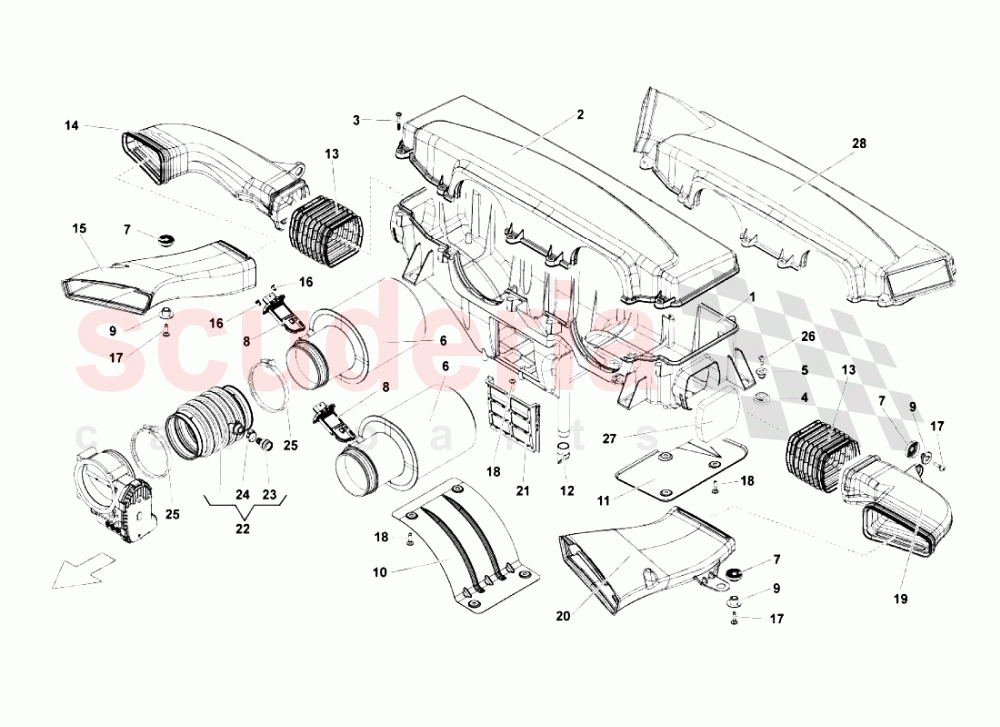

Air Filter Box of Lamborghini Lamborghini Gallardo LP570 4 SL Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 420133845C
AIR FILTER BOX 		$122.44 1
002 420133846B
COVER 		$67.02 1
003 420198132
FIXING KIT 		$9.00 10
004 867129669
GROMMET 		$2.50 (64.6% off) 4
005 6N0129734
BUSHING 		$3.85 4
006 420133844D
Air Filter
IN STOCK 		$127.46 2
007 867129669
GROMMET 		$2.50 (64.6% off) 4
008 420133471
AIR FLOW METER SENSOR
IN STOCK 		$290.16 2
009 6N0129734
BUSHING 		$3.85 4
010 420115339A
HEAT SHIELD 		$12.32 1
011 420115339C
HEAT SHIELD 		$15.33 1
012 420133540
VALVE 		$16.33 1
013 420129739B
PIPE 		$57.20 2
014 420129528
RIGHT AIR INTAKE 		$99.32 1
015 400827964A
RIGHT AIR INTAKE 		$160.61 1
016 N90739704
PANEL SCREW
IN STOCK 		$0.82 (88.7% off) 4
017 N91054201
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING
IN STOCK 		$1.55 4
018 N90739704
PANEL SCREW
IN STOCK 		$0.82 (88.7% off) 8
019 420129527
LEFT AIR INTAKE 		$99.32 1
020 400827963A
LEFT AIR INTAKE 		$160.61 1
021 420133360C
FILTERING CARTRIDGE 		$48.38 1
022 420133303F
INTAKE HOSE 		$126.88 2
023 79133022C
CONNECTOR UNION 		$13.10 2
024 N10098001
CLAMP 		$2.35 (66.6% off) 2
025 N0245085
HOSE CLAMP 		$8.28 4
026 N91054201
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING
IN STOCK 		$1.55 4
