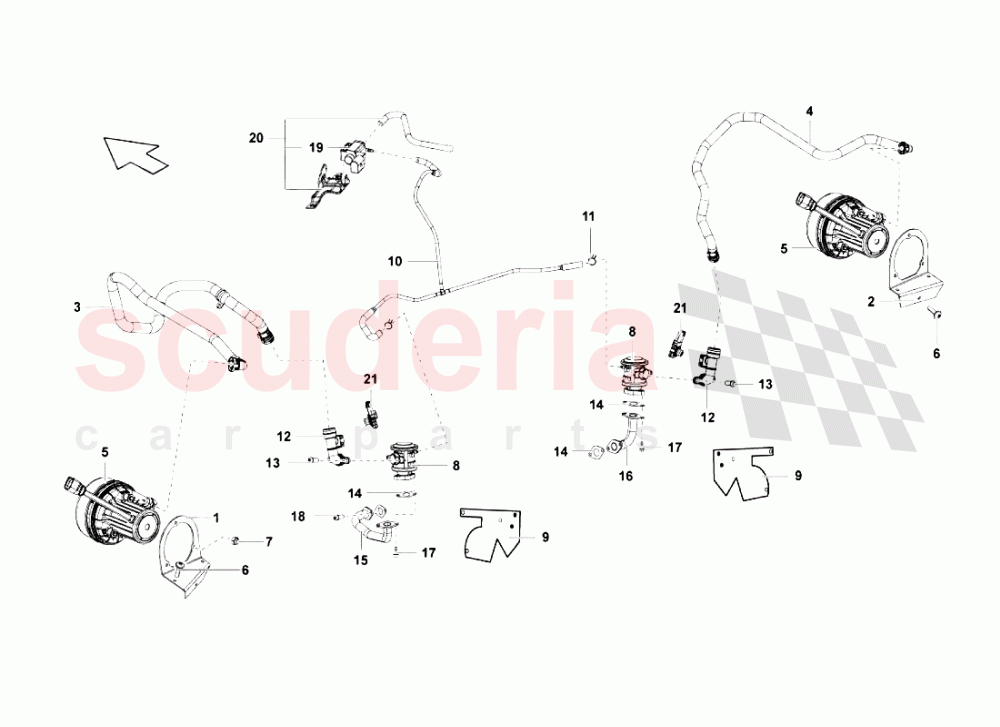

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400906618	LH BRACKET	400906618 LH BRACKET	-	1	Enquire
002	400906617	RH BRACKET	400906617 RH BRACKET	-	1	Enquire
003	400133897A	LH PIPE	400133897A LH PIPE	-	1	Enquire
004	400133898A	RH PIPE	400133898A RH PIPE	-	1	Enquire
005	400906601	PUMP	400906601 PUMP	-	2	Enquire
006	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT	-	6	Enquire
007	N90488004	HEX. NUT WITH WASHER	N90488004 HEX. NUT WITH WASHER	-	6	Enquire
008	7L131101N	COMBINATION VALVE	7L131101N COMBINATION VALVE	-	2	Enquire
009	7L133106A	HEAT INSULATION	7L133106A HEAT INSULATION	-	2	Enquire
010	7L131055H	PRESSURE CONTROLLINE	7L131055H PRESSURE CONTROLLINE	-	1	Enquire
011	N10210501	CLAMP	N10210501 CLAMP	-	2	Enquire
012	7L131119	Secondary Air Injection Pump Hose	7L131119 Secondary Air Injection Pump Hose	-	2	Enquire
013	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
014	6A131120D	SEAL	6A131120D SEAL	-	4	Enquire
015	7L131166E	ADAPTER	7L131166E ADAPTER	-	1	Enquire
016	7L131166G	ADAPTER	7L131166G ADAPTER	-	1	Enquire
017	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
018	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	4	Enquire
019	37906283C	SOLENOID VALVE	37906283C SOLENOID VALVE	-	1	Enquire
020	7L131425D	SUPPORT	7L131425D SUPPORT	-	1	Enquire
021	6L906052A	PRESSURE SENSOR	6L906052A PRESSURE SENSOR	-	2	Enquire
