Front Tunnel of Lamborghini Lamborghini Gallardo LP560 Spyder

View All

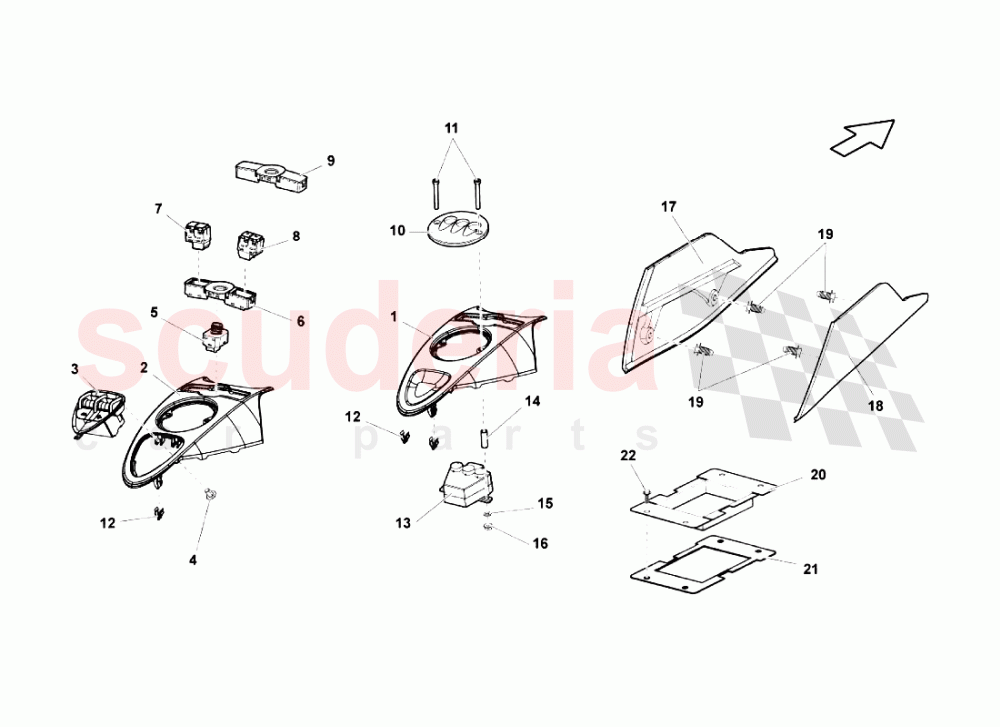

Lamborghini Gallardo LP560 Spyder - Front Tunnel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	407863323A	FRONT CONSOLE CENTER EXTENSION (STANDARD)	407863323A FRONT CONSOLE CENTER EXTENSION (STANDARD)	-	1	Enquire
002	407863323C	FRONT CONSOLE CENTER EXTENSION (LEATHER UPHOLSTERY - SUPPLY VIN)	407863323C FRONT CONSOLE CENTER EXTENSION (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
002	407863323D	FRONT CONSOLE CENTER EXTENSION (KLAVIERLACK)	407863323D FRONT CONSOLE CENTER EXTENSION (KLAVIERLACK)	-	1	Enquire
002	407863323B	FRONT CONSOLE CENTER EXTENSION (CARBON INTERIOR)	407863323B FRONT CONSOLE CENTER EXTENSION (CARBON INTERIOR)	-	1	Enquire

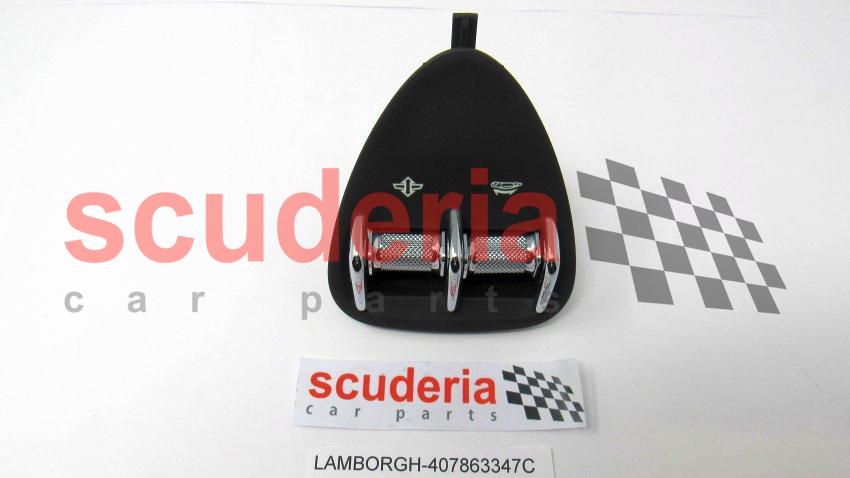

003	407863347C	Capote Open/Close Switch	407863347C Capote Open/Close Switch	-	1	Enquire
004	N10621601	HEX SOCKET OVAL HEAD COLLARED	N10621601 HEX SOCKET OVAL HEAD COLLARED	-	2	Enquire
005	8E0959565A	OUTER REARVIEW MIRROR CONTROL SWITCH	8E0959565A OUTER REARVIEW MIRROR CONTROL SWITCH	-	1	Enquire
006	400858140A	SWITCH ORNAMENT ON THE TUNNEL	400858140A SWITCH ORNAMENT ON THE TUNNEL	-	1	Enquire
007	400962109	SWITCH (PLUG)	400962109 SWITCH (PLUG)	-	1	Enquire
007	400962109H	SWITCH (DRL/PLUG)	400962109H SWITCH (DRL/PLUG)	-	1	Enquire
008	400962109D	SWITCH (REAR VIEW CAMERA/LIFTING SYSTEM)	400962109D SWITCH (REAR VIEW CAMERA/LIFTING SYSTEM)	-	1	Enquire
008	400962109E	SWITCH (REAR VIEW CAMERA/PLUG)	400962109E SWITCH (REAR VIEW CAMERA/PLUG)	-	1	Enquire
008	400962109F	SWITCH (PLUG/LIFTING SYSTEM)	400962109F SWITCH (PLUG/LIFTING SYSTEM)	-	1	Enquire
010	400713110D	SELECTOR (E-GEAR)	400713110D SELECTOR (E-GEAR)	-	1	Enquire
011	N91078401	SCREW	N91078401 SCREW	-	2	Enquire
012	400857117	CLIP	400857117 CLIP	-	2	Enquire
013	407927128A	SWITCH FOR SELESPEED (E-GEAR)	407927128A SWITCH FOR SELESPEED (E-GEAR)	-	1	Enquire
014	400864133	SPACER (E-GEAR)	400864133 SPACER (E-GEAR)	-	2	Enquire
015	WHT000778	WASHER	WHT000778 WASHER	-	2	Enquire
016	N1508213	NUT M6	N1508213 NUT M6	-	2	Enquire
017	400864551B	FRONT CONSOLE SIDE COVER ASSY, FRONT LH (ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN)	400864551B FRONT CONSOLE SIDE COVER ASSY, FRONT LH (ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
018	400864552B	FRONT CONSOLE SIDE COVER ASSY, FRONT RH (ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN)	400864552B FRONT CONSOLE SIDE COVER ASSY, FRONT RH (ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
019	400867299	FASTENER LYS FUSION, YELLOW	400867299 FASTENER LYS FUSION, YELLOW	-	4	Enquire
020	400857206	COVER (E-GEAR)	400857206 COVER (E-GEAR)	-	1	Enquire
021	400857234	GASKET (E-GEAR)	400857234 GASKET (E-GEAR)	-	1	Enquire
022	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
