Passenger Side Drawer of Lamborghini Lamborghini Gallardo LP560 Spyder

View All

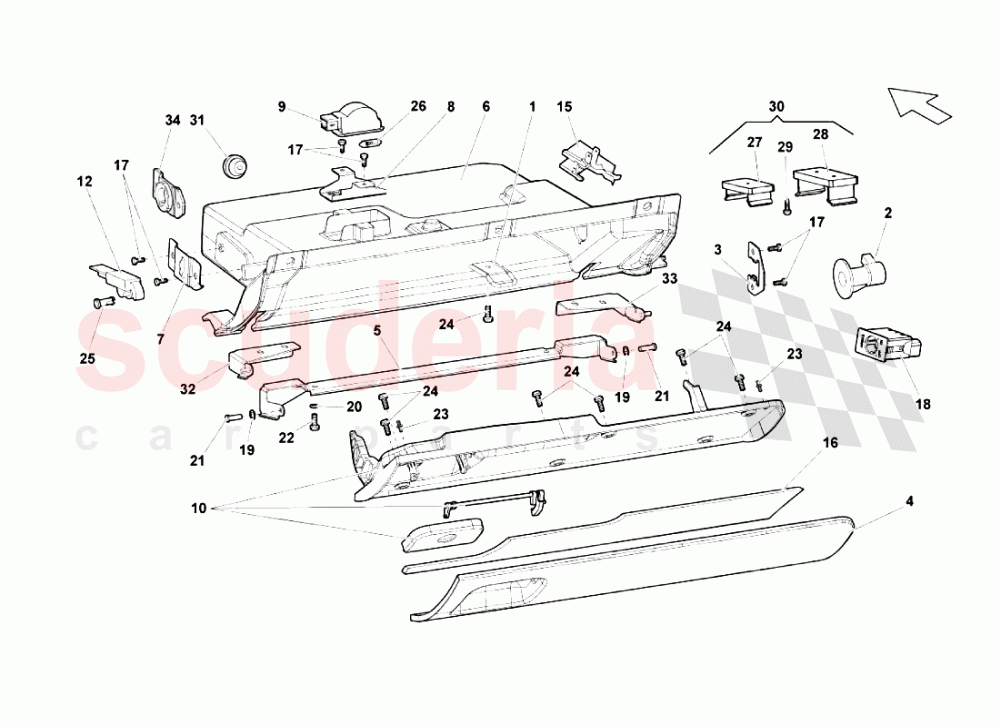

Lamborghini Gallardo LP560 Spyder - Passenger Side Drawer

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400857133A	CLOSING BRACKET	400857133A CLOSING BRACKET	$9.08	1
003	400959767	LODGING	400959767 LODGING	$19.36	1
004	402857121B	GLOVE BOX COVER ASSEMBLY (LEATHER UPHOLSTERY - SUPPLY VIN)	402857121B GLOVE BOX COVER ASSEMBLY (LEATHER UPHOLSTERY - SUPPLY VIN)	$731.19	1
004	402857121C	GLOVE BOX COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	402857121C GLOVE BOX COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	$1,861.57	1
004	402857121E	GLOVE BOX COVER ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	402857121E GLOVE BOX COVER ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	$1,861.57	1
005	402857156A	SUPPORT (UNTIL THE VIN 9LA08721)	402857156A SUPPORT (UNTIL THE VIN 9LA08721)	$23.07	1
006	407857923C	LOWER RIGHT DASHBOARD ASSEMBLY (WITH PREDISPOSITION FOR I-POD - FROM 9LA08722)	407857923C LOWER RIGHT DASHBOARD ASSEMBLY (WITH PREDISPOSITION FOR I-POD - FROM 9LA08722)	$272.84	1
006	407857923A	LOWER RIGHT DASHBOARD ASSEMBLY (WITH PREDISPOSITION FOR I-POD - UNTIL THE VIN 9LA08721)	407857923A LOWER RIGHT DASHBOARD ASSEMBLY (WITH PREDISPOSITION FOR I-POD - UNTIL THE VIN 9LA08721)	$280.27	1
006	407857923	LOWER RIGHT DASHBOARD ASSEMBLY (UNTIL THE VIN 9LA08721)	407857923 LOWER RIGHT DASHBOARD ASSEMBLY (UNTIL THE VIN 9LA08721)	$264.79	1
006	407857923B	LOWER RIGHT DASHBOARD ASSEMBLY (FROM VIN 9LA08722)	407857923B LOWER RIGHT DASHBOARD ASSEMBLY (FROM VIN 9LA08722)	$258.73	1
007	402858693	BRACKET (UNTIL THE VIN 9LA08721)	402858693 BRACKET (UNTIL THE VIN 9LA08721)	$13.59	1
008	402947307	BRACKET	402947307 BRACKET	$11.04	1
009	4B0947415A	LUGGAGE COMPARTMENT LAMP	4B0947415A LUGGAGE COMPARTMENT LAMP	$21.50	1
010	402858413C	GLOVE BOX LID INSIDE (CARBON INTERIOR)	402858413C GLOVE BOX LID INSIDE (CARBON INTERIOR)	$3,281.60	1
010	402858413G	GLOVE BOX LID INSIDE (KIT WITH HANDLE) R/H/D	402858413G GLOVE BOX LID INSIDE (KIT WITH HANDLE) R/H/D	$2,130.39	1
010	402858413D	GLOVE BOX LID INSIDE (KIT WITH HANDLE - LEATHER INTERIOR - SUPPLY VIN)	402858413D GLOVE BOX LID INSIDE (KIT WITH HANDLE - LEATHER INTERIOR - SUPPLY VIN)	$547.05	1
012	4B2880324	REFRAINING ELEMENT	4B2880324 REFRAINING ELEMENT	$40.13	1
015	8L0947315	SWITCH	8L0947315 SWITCH	$6.06 MSRP: ~~8.45~~ (28.3% off)	1
016	400863095	SOUNDPROOFING MATERIAL	400863095 SOUNDPROOFING MATERIAL	$2.90	1
017	N90562401	SCREW	N90562401 SCREW	$1.74	6
018	8E0919237	SWITCH	8E0919237 SWITCH	$73.53	1
019	N90657502	CLAMPING WASHER	N90657502 CLAMPING WASHER	$0.36 MSRP: ~~7.34~~ (95.1% off)	2
020	N1154247	WASHER	N1154247 WASHER	-	2	Enquire
021	N10639701	JOURNAL 5X20 (UNTIL THE VIN 9LA08721)	N10639701 JOURNAL 5X20 (UNTIL THE VIN 9LA08721)	$4.43	2
022	N10596302	SCREW M5X25.0	N10596302 SCREW M5X25.0	$1.01 MSRP: ~~7.27~~ (86.1% off)	2
023	N91092001	RUBBER STOP 4.50X2.2X8.60	N91092001 RUBBER STOP 4.50X2.2X8.60	$0.98 MSRP: ~~7.23~~ (86.4% off)	2
024	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	$1.07	7
025	400857653	CLIP	400857653 CLIP	$23.07	1
026	N177252	BULB	N177252 BULB	-	1	Enquire
031	8E0971841G	FAIRLEAD	8E0971841G FAIRLEAD	$1.81 MSRP: ~~7.10~~ (74.5% off)	1
032	402857155C	SUPPORT	402857155C SUPPORT	$30.06	1
033	402857156C	SUPPORT	402857156C SUPPORT	$30.06	1
034	402858693C	BRACKET	402858693C BRACKET	$2.78	1
