Rear Brakes Discs Std-Ccb

Lamborghini Gallardo LP560 Coupe

Find Your Part

Lamborghini Gallardo LP560 Coupe - Rear Brakes Discs Std-ccb

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

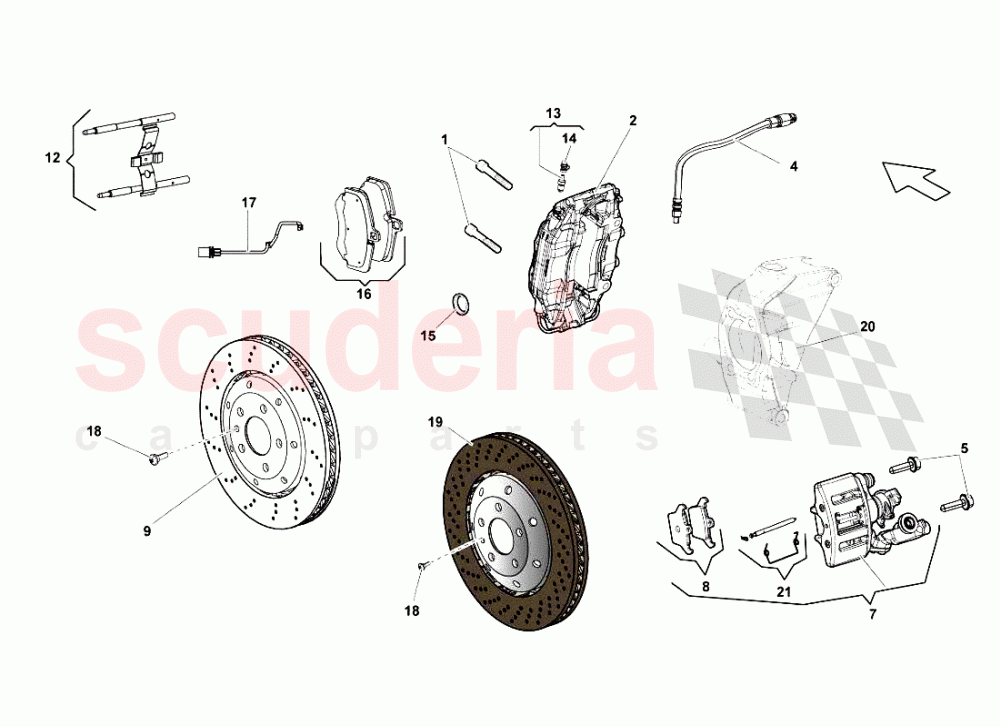

Rear Brakes Discs Std-ccb of Lamborghini Lamborghini Gallardo LP560 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 R1400661
SCREWS RETROFIT KIT FOR CERAMIC BRAKES 		- 1 Enquire
001 N91141801
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 2 Enquire
002 400615406AH
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - YELLOW REAR CALIPERS) 		- 1 Enquire
002 400615406AE
RH REAR BRAKE CALIPER (GREY REAR CALIPERS - FROM VIN ALA09860) 		- 1 Enquire
002 400615406AF
RH REAR BRAKE CALIPER (FROM VIN ALA09295 - ORANGE REAR CALIPERS) 		- 1 Enquire
002 400615405AD
LH REAR BRAKE CALIPER (FROM VIN ALA09191 - YELLOW FRONT CALIPERS) 		- 1 Enquire
002 400615405AF
LH REAR BRAKE CALIPER (FROM VIN ALA09295 - ORANGE REAR CALIPERS) 		- 1 Enquire
002 400615406AC
RH REAR BRAKE CALIPER (FROM VIN ALA09237 - BLACK REAR CALIPERS) 		- 1 Enquire
002 400615406AJ
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - GREY REAR CALIPERS) 		- 1 Enquire
002 400615406AG
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - BLACK REAR CALIPERS - FROM VIN ALA09511) 		- 1 Enquire
002 400615405AJ
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - GREY REAR CALIPERS) 		- 1 Enquire
002 400615406AK
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - ORANGE REAR CALIPERS) 		- 1 Enquire
002 400615405AK
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - ORANGE REAR CALIPERS) 		- 1 Enquire
002 400615406AD
RH REAR BRAKE CALIPER (FROM VIN ALA09191 - YELLOW REAR CALIPERS) 		- 1 Enquire
002 400615405AH
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - YELLOW FRONT CALIPERS) 		- 1 Enquire
002 400615405AE
LH REAR BRAKE CALIPER (GREY REAR CALIPERS - FROM VIN ALA09860) 		- 1 Enquire
002 400615405AC
LH REAR BRAKE CALIPER (FROM VIN ALA09237 - BLACK REAR CALIPERS) 		- 1 Enquire
002 400615405AG
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - BLACK REAR CALIPERS - FROM VIN ALA09511) 		- 1 Enquire
004 420611775A
BRAKE HOSE 		- 2 Enquire
005 N91105601
HEX COLLARED BOLT 		- 2 Enquire
007 420615403B
LH HAND BRAKE CALIPER (STD/CCB) 		- 1 Enquire
007 420615404B
RH HAND BRAKE CALIPER (STD/CCB) 		- 1 Enquire
008 420698451D
HAND BRAKE PAD SET (STD/CCB) 		- 1 Enquire
009 420615601F
Rear Brake Disc 		- 2 Enquire
012 420698269
1 SET ATTACHMENT PARTS 		- 2 Enquire
013 8A0615273
1 SET BLEEDER VALVES WITH DUST CAP 		- 2 Enquire
014 7D0611483
DUST CAP 		- 2 Enquire
015 420698671
SEAL RING 		- 2 Enquire
016 420698451F
Rear Brake Pad Set (Carbon Ceramic) 		- 1 Enquire
016 4S0698451AC
BRAKE PADS ET WITH WEAR INDICATOR 		- 1 Enquire
017 420615437
CONTACTS 		- 1 Enquire
018 N10648301
HEX SOCKET COUNTERSUNK BOLT 		- 2 Enquire
019 420615602B
CCM RH REAR BRAKE DISC 		- 1 Enquire
019 420615602E
CCM RH REAR BRAKE DISC 		- 1 Enquire
019 420615601K
CCM LH REAR BRAKE DISC 		- 1 Enquire
019 420615601G
CCM LH REAR BRAKE DISC 		- 1 Enquire
021 420698269A
JOURNAL AND CLIP SET 		- 2 Enquire
