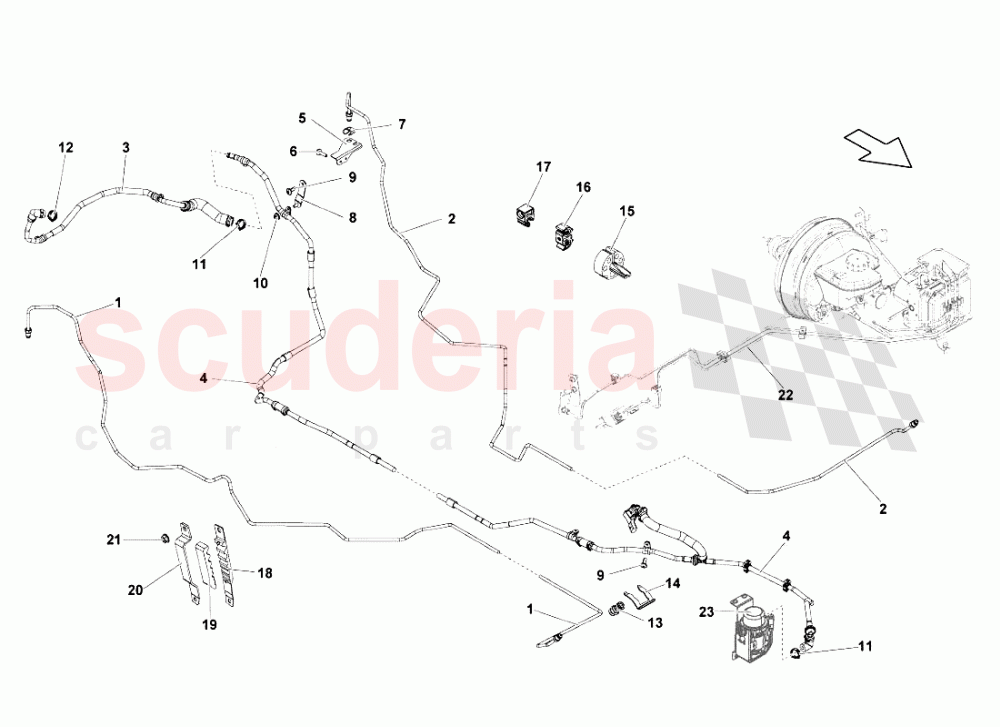

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400611742G	RH REAR PIPE	400611742G RH REAR PIPE	-	1	Enquire
002	400611741H	LH REAR PIPE	400611741H LH REAR PIPE	-	1	Enquire
003	420611931E	REAR PIPE	420611931E REAR PIPE	-	1	Enquire
004	401611931	FRONT PIPE (VACUM)	401611931 FRONT PIPE (VACUM)	-	1	Enquire
005	420611848A	RIGHT SUPPORT	420611848A RIGHT SUPPORT	-	1	Enquire
005	420611847A	LEFT SUPPORT	420611847A LEFT SUPPORT	-	1	Enquire
006	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
007	4D0611715B	RETAINING SPRING	4D0611715B RETAINING SPRING	-	2	Enquire
008	420611793D	BRACKET	420611793D BRACKET	-	1	Enquire
009	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
010	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
011	N10255601	CLAMP	N10255601 CLAMP	-	2	Enquire
012	N10201901	CLAMP	N10201901 CLAMP	-	1	Enquire
013	400611809	CONNECTING PIECE	400611809 CONNECTING PIECE	-	2	Enquire
014	191611715	HOSE BRACKET	191611715 HOSE BRACKET	-	2	Enquire
015	1J0611853	SPACER	1J0611853 SPACER	-	2	Enquire
016	6Q0611797E	BRACKET	6Q0611797E BRACKET	-	7	Enquire
017	8D0611797D	BRACKET	8D0611797D BRACKET	-	12	Enquire
018	400121220E	RUBBER SUPPORT	400121220E RUBBER SUPPORT	-	3	Enquire
019	400121503	RUBBER SUPPORT	400121503 RUBBER SUPPORT	-	3	Enquire
020	400121097A	BRACKET	400121097A BRACKET	-	3	Enquire
021	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	6	Enquire
