Lamborghini Gallardo LP560 Coupe - Air Filter Box

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

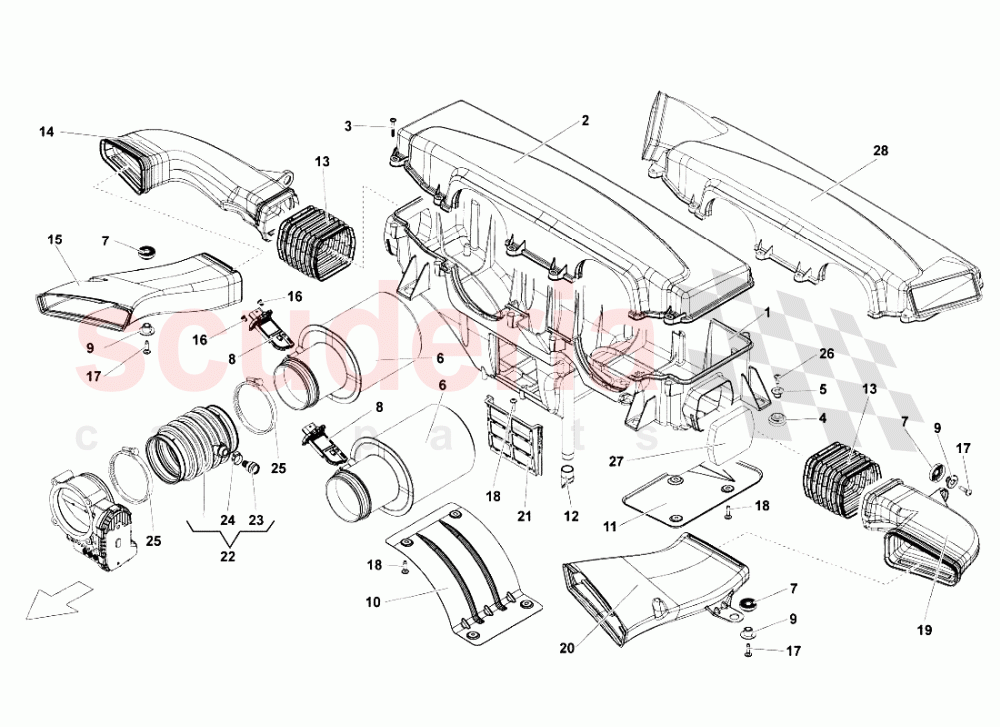

Air Filter Box of Lamborghini Lamborghini Gallardo LP560 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 420133845C
AIR FILTER BOX 		- 1 Enquire
002 420133846B
COVER 		- 1 Enquire
003 420198132
FIXING KIT 		- 10 Enquire
004 867129669
GROMMET 		- 4 Enquire
005 1K0129734B
BUSH 		- 4 Enquire
006 420133844D
Air Filter
ARRIVING SOON 		- 2 Enquire
007 867129669
GROMMET 		- 4 Enquire
008 420133471
AIR FLOW METER SENSOR 		- 2 Enquire
009 6N0129734
BUSHING 		- 4 Enquire
010 420115339A
HEAT SHIELD 		- 1 Enquire
011 420115339C
HEAT SHIELD 		- 1 Enquire
012 420133540
VALVE 		- 1 Enquire
013 420129739B
PIPE 		- 2 Enquire
014 420129528
RIGHT AIR INTAKE 		- 1 Enquire
015 400827964A
RIGHT AIR INTAKE 		- 1 Enquire
016 N91068201
HEXAGON SOCKET FLAT HEAD BOLT 		- 4 Enquire
017 N91054201
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING 		- 4 Enquire
018 N90739704
PANEL SCREW 		- 8 Enquire
019 420129527
LEFT AIR INTAKE 		- 1 Enquire
020 400827963A
LEFT AIR INTAKE 		- 1 Enquire
021 420133360C
FILTERING CARTRIDGE 		- 1 Enquire
022 420133303F
INTAKE HOSE 		- 2 Enquire
023 79133022C
CONNECTOR UNION 		- 2 Enquire
024 N10098001
CLAMP 		- 2 Enquire
025 N0245085
HOSE CLAMP 		- 4 Enquire
026 N91054201
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING 		- 4 Enquire
