Secondary Air System of Lamborghini Lamborghini Gallardo LP560 Coupe

View All

Lamborghini Gallardo LP560 Coupe - Secondary Air System

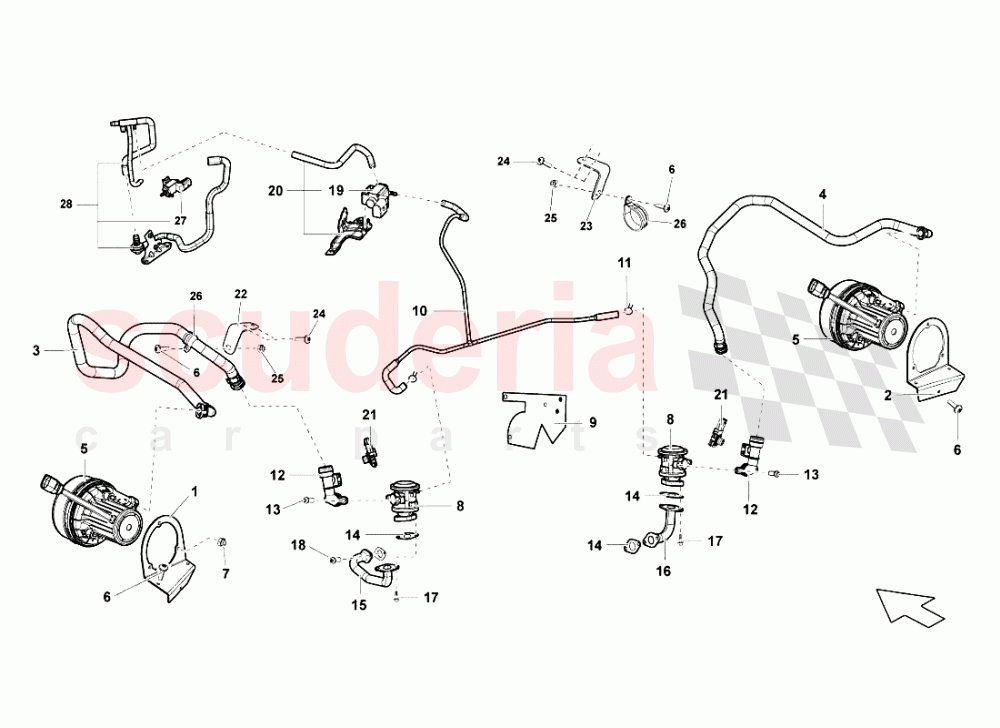

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400906618	LH BRACKET	400906618 LH BRACKET	$33.01	1
002	400906617	RH BRACKET	400906617 RH BRACKET	$33.01	1
003	400133897A	LH PIPE	400133897A LH PIPE	$374.99	1
004	400133898A	RH PIPE	400133898A RH PIPE	$374.99	1
005	400906601	PUMP	400906601 PUMP	$469.08	2
006	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT	$1.55	8
007	N90488004	HEX. NUT WITH WASHER	N90488004 HEX. NUT WITH WASHER	$0.42 MSRP: ~~7.34~~ (94.3% off)	6
008	7L131101N	COMBINATION VALVE	7L131101N COMBINATION VALVE	$159.66	2
009	7L133106A	HEAT INSULATION	7L133106A HEAT INSULATION	$27.83	2
010	7L131055H	PRESSURE CONTROLLINE	7L131055H PRESSURE CONTROLLINE	$42.15	1
011	N10210501	CLAMP	N10210501 CLAMP	$1.55 MSRP: ~~7.15~~ (78.3% off)	2
012	7L131119	ADAPTER	7L131119 ADAPTER	$16.88	2
013	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT	$1.47	4
014	6A131120D	SEAL	6A131120D SEAL	$7.87	4
015	7L131166E	ADAPTER	7L131166E ADAPTER	$107.39	1
016	7L131166G	ADAPTER	7L131166G ADAPTER	$107.39	1
017	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT	$1.60	4
018	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$1.34	4
019	37906283C	SOLENOID VALVE	37906283C SOLENOID VALVE	$122.44	1
020	7L131425D	SUPPORT	7L131425D SUPPORT	$184.81	1
021	6L906052A	PRESSURE SENSOR	6L906052A PRESSURE SENSOR	$86.65	2
027	79906283B	SOLENOID VALVE	79906283B SOLENOID VALVE	-	1	Enquire
028	7L131055K	VACUUM LINE ASSEMBLY	7L131055K VACUUM LINE ASSEMBLY	$305.79	1
