Name: Water Cooling System 4
Rating: 5.0 (1 reviews)

Water Cooling System 4 of Lamborghini Lamborghini Gallardo (2006-2007)

View All

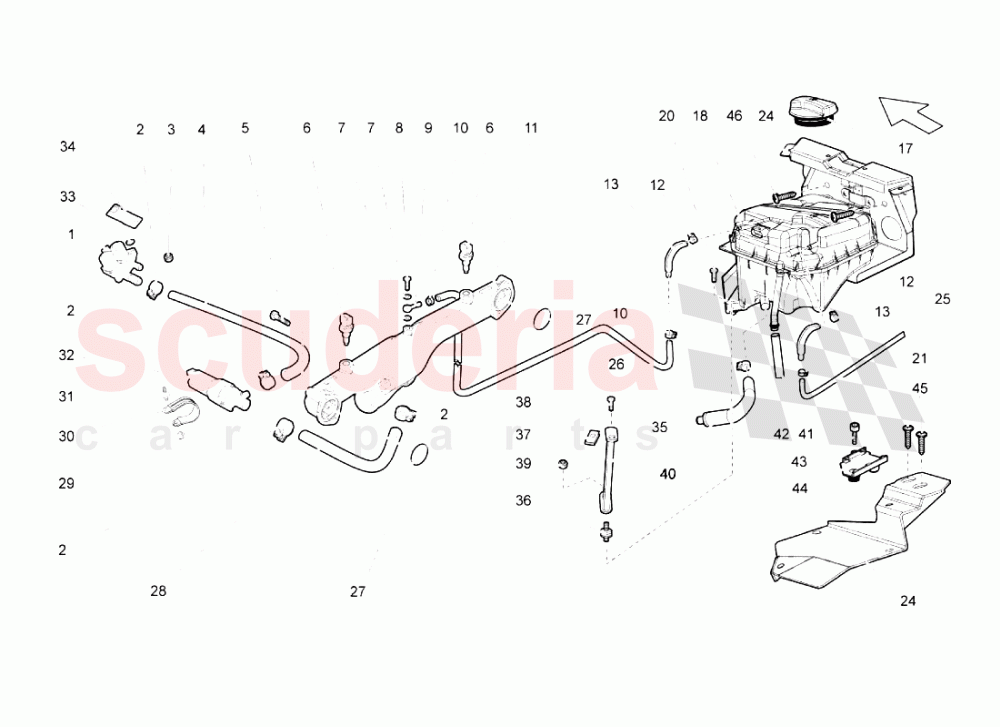

Lamborghini Gallardo (2006-2007) - Water Cooling System 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	400251189	CLAMP	$10.76	To Order

Photo	Part No	Description	Price (each)	Stock
	7L121045	CONNECTOR	$434.16	To Order

Photo	Part No	Description	Price (each)	Stock
	400251189E	CLAMP	$14.38	To Order

Photo	Part No	Description	Price (each)	Stock
	7L121434A	CONNECTOR	$97.57	To Order

Photo	Part No	Description	Price (each)	Stock
	1J0121321B	PLUG	$20.37	To Order

Photo	Part No	Description	Price (each)	Stock
	420121403	RESERVOIR	$467.87	To Order

Photo	Part No	Description	Price (each)	Stock
	N10158602	SCREW M6X20	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	7L121103	HOSE	$65.06	To Order

Photo	Part No	Description	Price (each)	Stock
	400121409A	BRACKET	$1,151.89	To Order

Photo	Part No	Description	Price (each)	Stock
	400251189	CLAMP	$10.76	To Order
	N91130601	CLAMP	$36.64	To Order

Photo	Part No	Description	Price (each)	Stock
	7L121109	HOSE	$18.94	To Order

Photo	Part No	Description	Price (each)	Stock
	N10129201	O-RING	$5.14	To Order

Photo	Part No	Description	Price (each)	Stock
	400819159A	JUNCTION	$119.22	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508213	HEXAGON COLLAR NUT	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	8834003	CLAMP	$9.67	To Order

Photo	Part No	Description	Price (each)	Stock
	400972081A	FLEXIBLE SUPPORT	$12.84	To Order

Photo	Part No	Description	Price (each)	Stock
	78965561	WATER PUMP	$299.75	To Order

Photo	Part No	Description	Price (each)	Stock
	400864179	RUBBER WASHER	$2.02	To Order

Photo	Part No	Description	Price (each)	Stock
	400820761	BRACKET	$752.69	To Order

Photo	Part No	Description	Price (each)	Stock
	7L121167B	HOSE	$124.73	To Order

Photo	Part No	Description	Price (each)	Stock
	7L121428A	PIPE	$674.73	To Order

Photo	Part No	Description	Price (each)	Stock
	N10255601	CLAMP	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	7L0121093A	BRACKET	$15.54	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	400820036A	Heater Control Valve	400820036A Heater Control Valve	$620.56	1
02	N0245203	CLAMP	N0245203 CLAMP	$6.77	6
03	N90367502	NUT	N90367502 NUT	$0.76	1
04	400819362	SLEEVE	400819362 SLEEVE	$409.95	1
05	N10117403	SCREW	N10117403 SCREW	$0.89	2
06	7L919501A	Water Temperature Sensor	7L919501A Water Temperature Sensor	$359.56	2
07	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	$3.27 MSRP: ~~7.33~~ (55.4% off)	4
08	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$24.66	2
09	N91104301	BANJO FITTING	N91104301 BANJO FITTING	$36.43	2
10	400251189	CLAMP	400251189 CLAMP	$10.76	1
11	7L121045	CONNECTOR	7L121045 CONNECTOR	$434.16	1
12	400251189E	CLAMP	400251189E CLAMP	$14.38	2
13	7L121434A	CONNECTOR	7L121434A CONNECTOR	$97.57	2
17	1J0121321B	PLUG	1J0121321B PLUG	$20.37	1
18	420121403	RESERVOIR	420121403 RESERVOIR	$467.87	1
20	N10158602	SCREW M6X20	N10158602 SCREW M6X20	$0.42	1
21	7L121103	HOSE	7L121103 HOSE	$65.06	1
24	400121409A	BRACKET	400121409A BRACKET	$1,151.89	1
25	400251189	CLAMP	400251189 CLAMP	$10.76	1
25	N91130601	CLAMP	N91130601 CLAMP	$36.64 MSRP: ~~59.60~~ (38.5% off)	1
26	7L121109	HOSE	7L121109 HOSE	$18.94	1
27	N10129201	O-RING	N10129201 O-RING	$5.14	2
28	400819159A	JUNCTION	400819159A JUNCTION	$119.22	1
29	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	1
30	8834003	CLAMP	8834003 CLAMP	$9.67	1
31	400972081A	FLEXIBLE SUPPORT	400972081A FLEXIBLE SUPPORT	$12.84	1
32	78965561	WATER PUMP	78965561 WATER PUMP	$299.75	1
33	400864179	RUBBER WASHER	400864179 RUBBER WASHER	$2.02	2
34	400820761	BRACKET	400820761 BRACKET	$752.69	1
40	7L121167B	HOSE	7L121167B HOSE	$124.73	1
41	7L121428A	PIPE	7L121428A PIPE	$674.73	1
42	N10255601	CLAMP	N10255601 CLAMP	$1.96 MSRP: ~~7.10~~ (72.4% off)	1
43	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	N10124308 OVAL HEXAGON SOCKET HEAD BOLT	$1.96 MSRP: ~~7.26~~ (73% off)	2
44	7L0121093A	BRACKET	7L0121093A BRACKET	$15.54	1
