Water Cooling System 3 of Lamborghini Lamborghini Gallardo (2006-2007)

View All

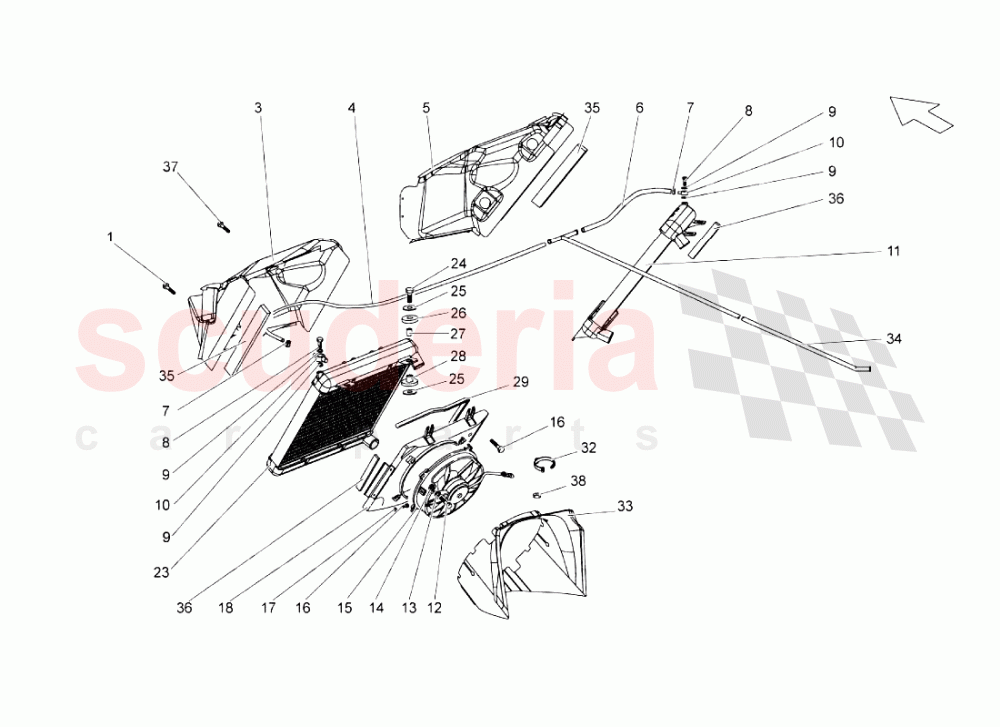

Lamborghini Gallardo (2006-2007) - Water Cooling System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N91104301	BANJO FITTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121252A	RH WATER RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000769A	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L959465D	ELECTRIC FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N1021224	SCREW M6X12	Enquire	To Order
	N10082911	SCREW M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002961	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400122194	RH SUPPORT	Enquire	To Order
	400122193	LH SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121253A	LH WATER RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10344301	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001942	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001189	PLASTIC WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121277	DISTANCE PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121268	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121539	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90937701	CABLE TIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400807028	RH REAR DIFFUSING AIR	Enquire	To Order
	400807027	LH REAR DIFFUSING AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L121520	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121539E	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121539D	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10207002	SCREW M6X15.00	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N1508213	NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	4	Enquire
03	400807157B	LH CONVEYOR	400807157B LH CONVEYOR	-	1	Enquire
04	7L121101	HOSE	7L121101 HOSE	-	1	Enquire
05	400807158B	RH CONVEYOR	400807158B RH CONVEYOR	-	1	Enquire
06	7L121102	HOSE	7L121102 HOSE	-	1	Enquire
07	N91130601	CLAMP	N91130601 CLAMP	-	3	Enquire
08	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	-	2	Enquire
09	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	-	4	Enquire
10	N91104301	BANJO FITTING	N91104301 BANJO FITTING	-	2	Enquire
11	400121252A	RH WATER RADIATOR	400121252A RH WATER RADIATOR	-	1	Enquire
12	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	N10430103 HEXAGON SOCKET FLAT HEAD BOLT	-	8	Enquire
13	WHT000769A	WASHER	WHT000769A WASHER	-	8	Enquire
14	WHT000778	WASHER	WHT000778 WASHER	-	8	Enquire
15	7L959465D	ELECTRIC FAN	7L959465D ELECTRIC FAN	-	2	Enquire
16	N1021224	SCREW M6X12	N1021224 SCREW M6X12	-	8	Enquire
16	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	6	Enquire
17	WHT002961	WASHER	WHT002961 WASHER	-	8	Enquire
18	400122194	RH SUPPORT	400122194 RH SUPPORT	-	1	Enquire
18	400122193	LH SUPPORT	400122193 LH SUPPORT	-	1	Enquire
23	400121253A	LH WATER RADIATOR	400121253A LH WATER RADIATOR	-	1	Enquire
24	N10344301	SCREW	N10344301 SCREW	-	8	Enquire
25	WHT001942	WASHER	WHT001942 WASHER	-	16	Enquire
26	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	-	8	Enquire
27	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	-	8	Enquire
28	400121268	RUBBER BUSH	400121268 RUBBER BUSH	-	8	Enquire
29	400121539	GASKET	400121539 GASKET	-	2	Enquire
32	N90937701	CABLE TIES	N90937701 CABLE TIES	-	4	Enquire
33	400807028	RH REAR DIFFUSING AIR	400807028 RH REAR DIFFUSING AIR	-	1	Enquire
33	400807027	LH REAR DIFFUSING AIR	400807027 LH REAR DIFFUSING AIR	-	1	Enquire
34	7L121520	PIPE	7L121520 PIPE	-	1	Enquire
35	400121539E	GASKET	400121539E GASKET	-	4	Enquire
36	400121539D	GASKET	400121539D GASKET	-	6	Enquire
37	N10207002	SCREW M6X15.00	N10207002 SCREW M6X15.00	-	6	Enquire
38	N1508213	NUT M6	N1508213 NUT M6	-	8	Enquire
