Left Cylinder Head And Cover 6-10 of Lamborghini Lamborghini Gallardo (2003-2005)

View All

Lamborghini Gallardo (2003-2005) - Left Cylinder Head And Cover 6-10

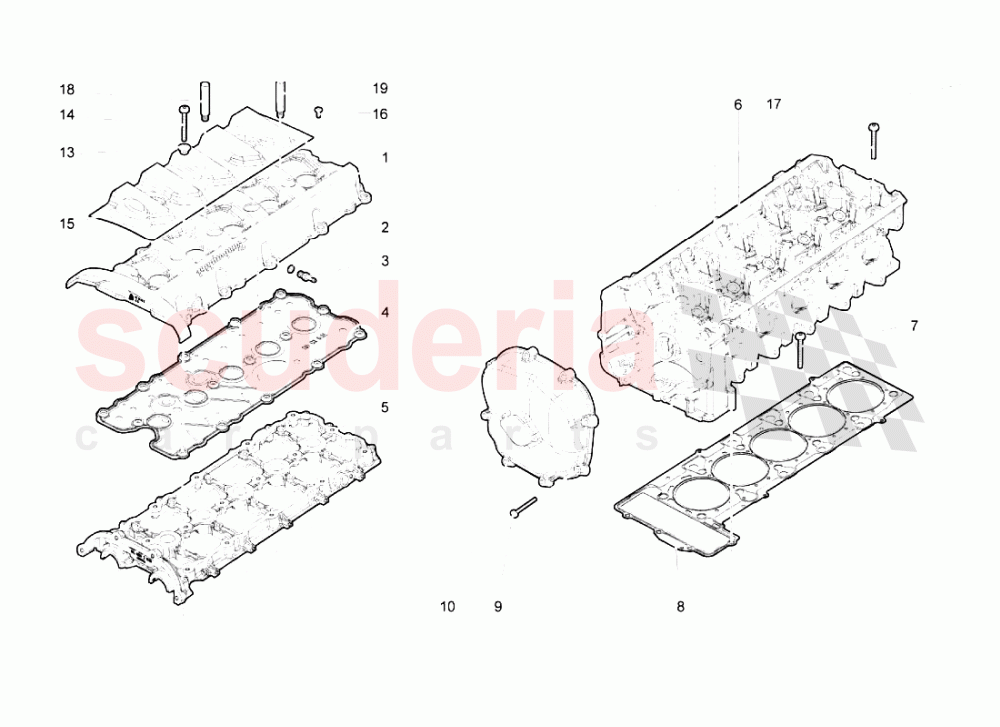

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6E109285D	COVER	$65.00	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103195A	BUSHING	$775.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N90917201	SCREW	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103908	COVER	$516.15	To Order

Photo	Part No	Description	Price (each)	Stock
	N10335202	OVAL HEXAGON SOCKET HEAD BOLT	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000374	SCREW	$65.37	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103728A	STUD - 38 mm	$20.71	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103728	STUD - 32 mm	$79.96	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	7L103475F	COVER	7L103475F COVER	$959.67	1
01	7L103475E	COVER (TO BE USED WITH 07L103483C REF. 4 UP TO VIN 4LA00378)	7L103475E COVER (TO BE USED WITH 07L103483C REF. 4 UP TO VIN 4LA00378)	$465.08	1
02	N138486	WASHER A16X22	N138486 WASHER A16X22	-	1	Enquire
03	7L103606	CONNECTOR	7L103606 CONNECTOR	$21.13	1
04	7L103483D	GASKET (TO BE USED WITH 07L103475F REF. 1 FROM VIN 4LA00379)	7L103483D GASKET (TO BE USED WITH 07L103475F REF. 1 FROM VIN 4LA00379)	$477.15	1
06	7L103063B	ASSEMBLEY 40457 CYLINDER HEAD (UNTIL THE VIN 6LA03722)	7L103063B ASSEMBLEY 40457 CYLINDER HEAD (UNTIL THE VIN 6LA03722)	$12,105.10	1
06	7L103063AA	ASSEMBLEY 6-10 CYLINDER HEAD (UP TO ENGINE 07LA05271)	7L103063AA ASSEMBLEY 6-10 CYLINDER HEAD (UP TO ENGINE 07LA05271)	$12,105.10	1
07	N10470702	SCREW	N10470702 SCREW	$0.74	1
08	7L103383H	CYLINDER HEAD GASKET LH	7L103383H CYLINDER HEAD GASKET LH	$186.73	1
09	N10156206	OVAL HEXAGON SOCKET HEAD BOLT	N10156206 OVAL HEXAGON SOCKET HEAD BOLT	$1.63	8
10	6E109285D	COVER	6E109285D COVER	$65.00	1
13	7L103195A	BUSHING	7L103195A BUSHING	$775.54	16
14	N90917201	SCREW	N90917201 SCREW	$0.98 MSRP: ~~7.27~~ (86.5% off)	14
15	7L103908	COVER	7L103908 COVER	$516.15	1
16	N10335202	OVAL HEXAGON SOCKET HEAD BOLT	N10335202 OVAL HEXAGON SOCKET HEAD BOLT	$1.04 MSRP: ~~7.29~~ (85.7% off)	2
17	WHT000374	SCREW	WHT000374 SCREW	$65.37	12
18	7L103728A	STUD - 38 mm	7L103728A STUD - 38 mm	$20.71	1
19	7L103728	STUD - 32 mm	7L103728 STUD - 32 mm	$79.96	1
