Exhaust System 3

Find Your Part

Lamborghini Gallardo (2008) - Exhaust System 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

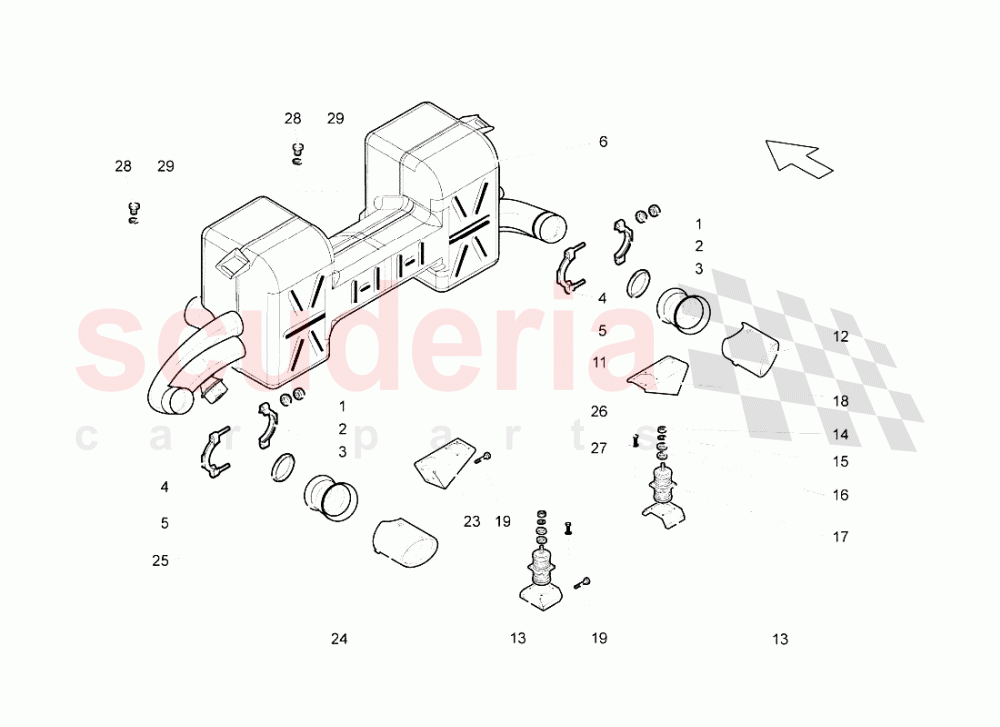

Exhaust System 3 of Lamborghini Lamborghini Gallardo (2008) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N02214621
HEXAGON NUT M8 SELF-LOCKING 		$90.94 4
002 WHT001185
WASHER 		$0.27 (96.3% off) 4
003 400251143
CLAMP 		$260.75 2
004 400251143B
CLAMP EXHAUST SYSTEM 		$439.51 2
005 400131797
Seal Exhaust 		$76.63 2
006 400251052A
SILENCER ASSEMBLY 		$19,200.73 1
011 400251238
EXHAUST TERMINALS 		$71.92 1
012 400253698
TERMINAL 		$848.13 1
013 400253379B
LH BRACKET 		$225.82 1
014 N10155210
NUT 		$1.96 (72.9% off) 4
015 WHT000770
WASHER 		$0.40 4
016 N0122115
WASHER 		$0.80 (89% off) 8
017 400251393A
SHOCK ABSORBER 		$452.97 4
018 400253324A
BRACKET 		$474.47 1
019 N10049309
SCREW 		- 4 Enquire
023 400253323A
BRACKET 		$474.47 1
024 400253697
TERMINAL 		$848.13 1
025 400251238
EXHAUST TERMINALS 		$71.92 1
026 N10595002
ROUND HD. SCREW 		$1.47 16
027 N01152322
WASHER 		- 16 Enquire
028 N0297042
PLUG M18X1.50 		$10.76 2
029 N91122801
WASHER 18,5X24X1,5 		$3.05 (57.5% off) 2
